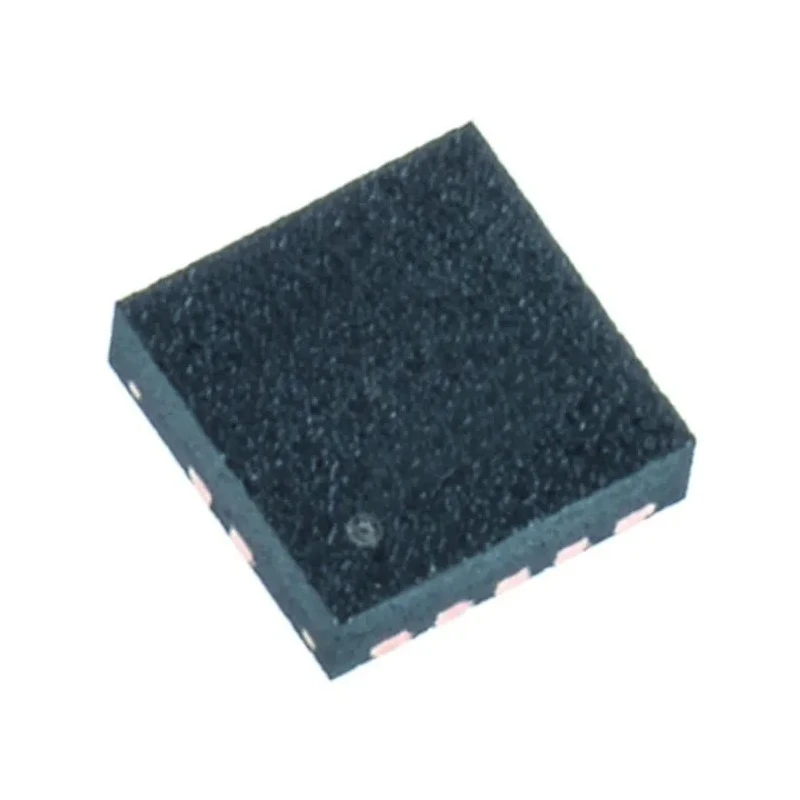

Texas Instruments 5-Channel Surface Mount DC-DC Switching Regulator 1.2 A 1.5 MHz SON 10-Pin TPS63001DRCT

Texas Instruments TPS63001DRCT is a highly efficient 5-channel DC-DC switching regulator designed for surface mount applications in a compact SON 10-pin package. Operating at a switching frequency of 1.5 MHz, it delivers a maximum output current of 1.2 A with fixed output voltage. The regulator supports input voltages between 1.8 V and 5.5 V, making it suitable for battery-powered applications including cellular phones, portable instruments, and handheld devices.

This integrated buck-boost converter automatically switches between Step Down and Step Up modes to maintain stable output voltage regardless of input supply variations. It features low quiescent current of 50 μA to enhance battery life and has excellent line and load regulation of 0.5%. Mounting is surface type on a small 3 mm × 3 mm footprint with 900 μm height, ideal for compact PCB designs.

The product is RoHS compliant, ensuring environmentally friendly manufacturing standards. Its operating temperature range from -40°C to 85°C ensures reliable performance under harsh and varying conditions. The TPS63001DRCT is part of the TPS6300x series from Texas Instruments which are known for high integration and efficiency in power management IC applications.

Highly efficient integrated switching regulator for DC-DC conversion. Wide input voltage and operating temperature range. Low quiescent current suitable for battery-powered devices. Compact SON package with surface mount design.

Compliant with RoHS standards for environmental safety. Suitable for industrial, consumer electronics, and automotive non-automotive applications. Automatic buck-boost switching for stable power supply. Robust load and line regulation for consistent output voltage.

Part of the efficient TPS6300x series power management ICs.

Use this Texas Instruments TPS63001DRCT 5-Channel DC-DC switching regulator in applications in electronics manufacturing, telecommunications equipment, industrial instrumentation, and consumer handheld electronic devices requiring low power consumption and compact footprint. Explore EnvMart’s wide range of power management integrated circuits for optimized electronic design solutions.
