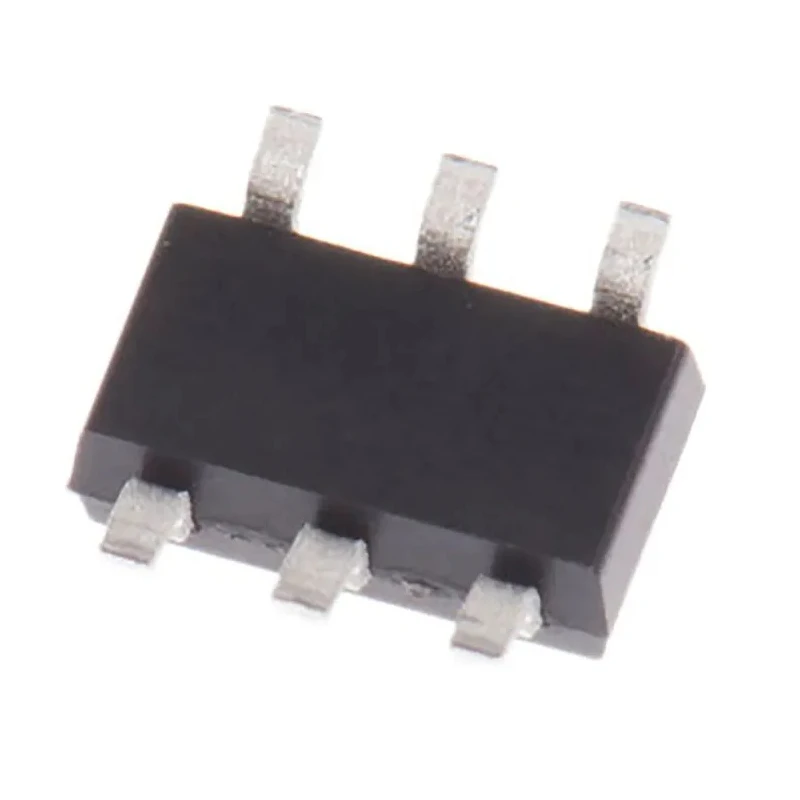

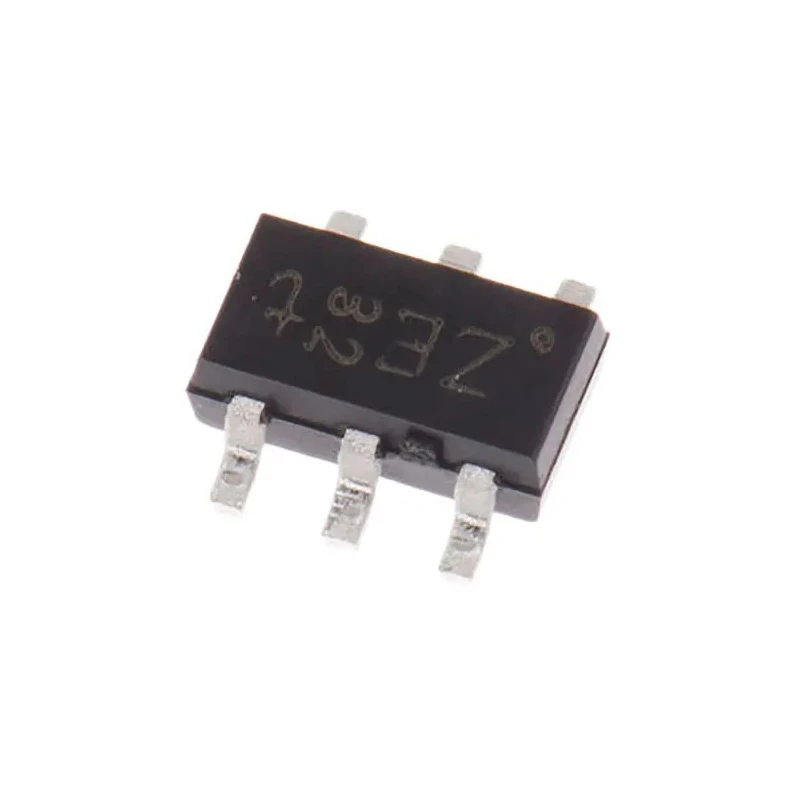

ROHM 5-Channel Adjustable Buck Converter 6-Pin SSOP, 29.4V Input, 1V Output BD9G101G-TR

Free Delivery in India | Lowest Global Shipping Charges

ROHM 5-Channel Adjustable Buck Converter 6-Pin SSOP, 29.4V Input, 1V Output BD9G101G-TR

Name: ROHM 5-Channel Adjustable Buck Converter 6-Pin SSOP, 29.4V Input, 1V Output BD9G101G-TR
Brand: ROHM
SKU: 195947
Price: 1.03 USD
Availability: InStock



Category DC-DC Converter Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	1.1mm
Length	2.9mm
Model	BD9G101G-TR
Width	1.6mm
Mount Type	Surface
Output type	Adjustable
Series	BD9G101G
Topology	Buck
Maximum Operating Temperature	105°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Number of outputs	5
Maximum Input Voltage	42V
Maximum Switching Frequency	1.7MHz
Maximum Output Current	500mA
Standards/Approvals	RoHS
Maximum Output Voltage	29.4V
Minimum Input Voltage	6V
Pin Count	6
Minimum Output Voltage	1V

Key Features

Supports a maximum output current of 500mA across five outputs.
Adjustable output voltage for flexible power regulation.
Surface mount design suitable for compact PCB integration.
Wide operating temperature range from -40°C to 105°C for industrial applications.
High switching frequency up to 1.7MHz enables efficient power conversion.
Low height profile of 1.1mm combined with compact length and width.
Compliant with RoHS standards ensuring environmental safety.
Ideal for power management in electronic and semiconductor applications.

Product Description

ROHM BD9G101G-TR is a 5-channel buck (step-down) converter designed for efficient power management in electronic devices. Featuring an adjustable output voltage from 1V with a maximum input voltage of 42V and maximum output voltage of 29.4V, it supports up to 500mA output current per channel. Constructed in a compact 6-pin SSOP surface mount package, it is optimized for space-saving PCB designs.

This device operates over a wide temperature range from -40°C to 105°C, making it suitable for robust industrial, automotive, and commercial electronics environments. The switching frequency can reach up to 1.7MHz, which aids in reducing electromagnetic interference and enhancing efficiency.

The BD9G101G-TR is fully RoHS compliant, reflecting commitment to environmental considerations. With dimensions of 2.9mm length, 1.6mm width, and 1.1mm height, it is ideal for applications requiring high-density power conversion.

Supports five outputs with adjustable voltage levels for versatile use. High switching frequency of up to 1.7MHz for efficient operation. Designed for surface mount applications for modern electronic assemblies. Wide operating temperature range ensures reliability in harsh conditions.

Compact SSOP package conserves PCB space. RoHS compliant offering sustainable manufacturing and disposal.

This buck converter is perfect for use in power management circuits in industrial equipment, telecommunications, automotive electronics, and consumer devices, providing reliable voltage regulation and efficient power conversion. Explore a wide range of power management ICs and DC-DC Converters at EnvMart for your electronic projects and production needs.
