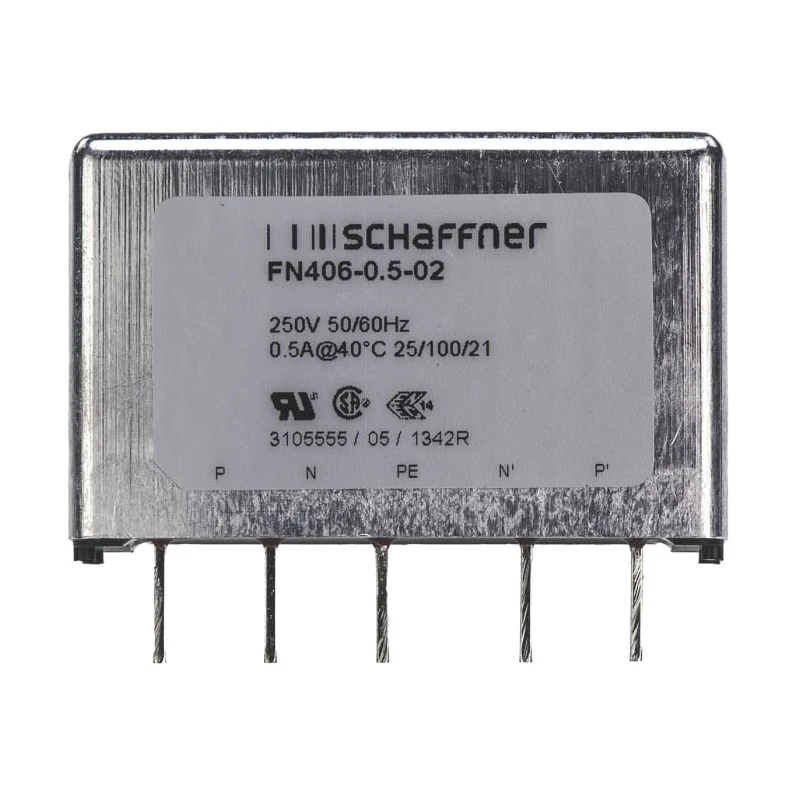

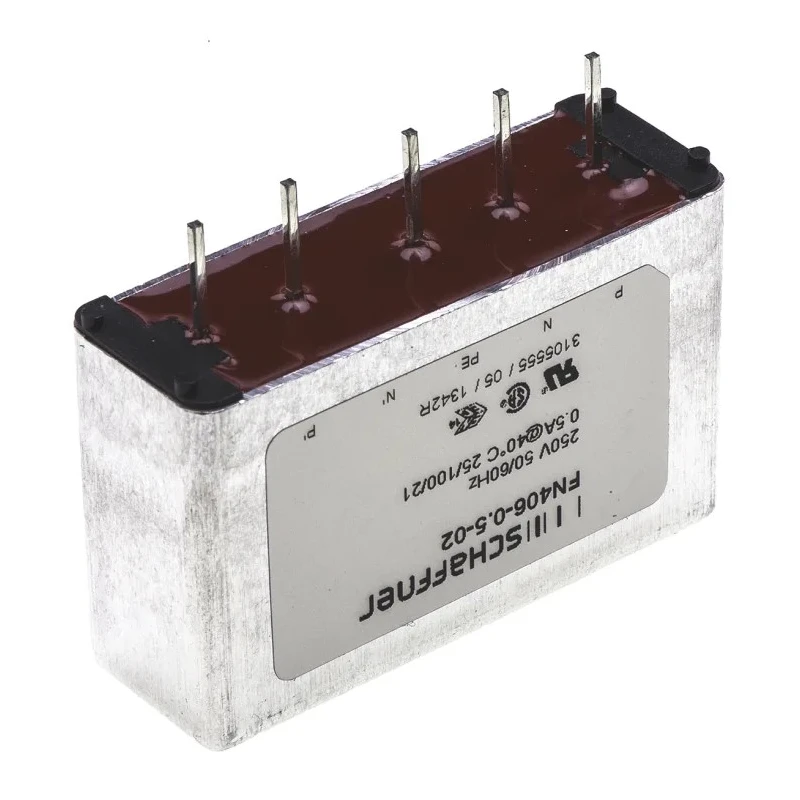

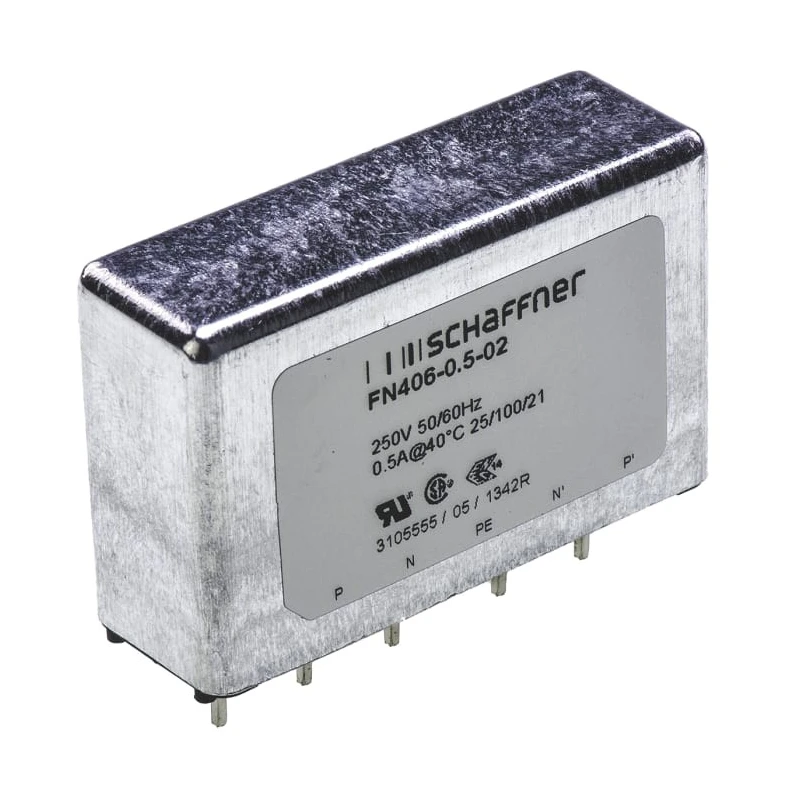

Schaffner PCB EMC Filter Single-Phase 500 mA 250V AC 400Hz Pin Termination FN406

Schaffner FN406 PCB EMC Filter offers a reliable solution for electromagnetic interference (EMI) suppression in single-phase electronic circuits. Rated for 500 mA maximum current and 250V AC voltage at 400Hz, this filter integrates easily onto printed circuit boards using pin termination.

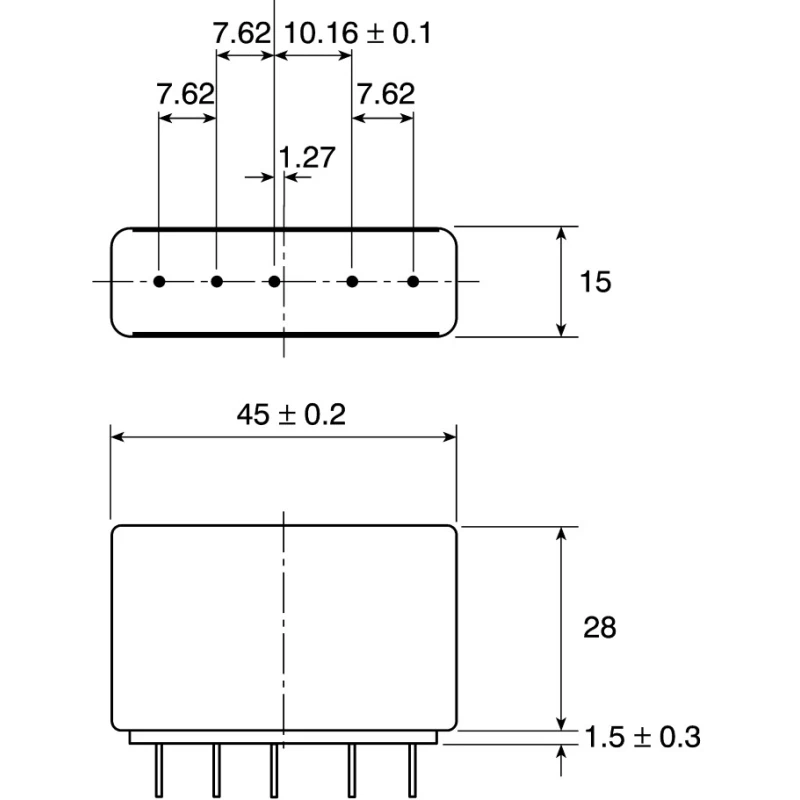

The compact dimensions of 45mm length, 29.5mm height, and 15mm depth facilitate use in confined spaces typical of industrial, laboratory, HVAC, and commercial electronics. The filter's robust design supports operation over a broad temperature range of -25°C to 100°C, ensuring stable performance in diverse environments.

With a capacitance of 100nF and inductance of 24mH, the FN406 filter effectively reduces conducted EMI, improving electromagnetic compatibility for sensitive electrical equipment. Its low leakage current of 373 μA enhances energy efficiency and safety compliance.

Constructed according to UL 94 V-0 standards, it provides flame retardant properties essential for industrial and medical equipment applications. The single-stage, single-phase configuration is ideal for single-phase power supplies, switch-mode power supplies, and other precision electronics requiring high EMI suppression.

This filter is particularly suitable for use in electrical and electronic machines, household equipment, medical devices, and test and measurement instruments across industrial, laboratory, and commercial sectors.

The filter provides excellent conducted attenuation performance suitable for sensitive electronic applications. Compact PCB-mountable design allows for efficient integration in electronic equipment. Features low-profile construction with a length of 45 mm, height of 29.5 mm, and depth of 15 mm.

Designed for operation over a temperature range from -25°C to 100°C ensuring reliability in varied environments. Leakage current is minimal at 373 μA, ensuring low energy loss and safety. Constructed with 100 nF capacitance and 24 mH inductance for effective electromagnetic interference suppression.

UL 94 V-0 rated, indicating flame retardant properties for enhanced safety.

Suited for applications in electrical and electronic equipment, small to medium machines, single-phase power supplies, switch-mode power supplies, medical equipment, and test & measurement devices.

Termination by pin style enables straightforward PCB mounting and secure connection. Single stage, single-phase filter ensuring focused EMC noise suppression within compact space. Explore the category for more Schaffner EMC Filters and related electronic components optimized for industrial and laboratory applications.
