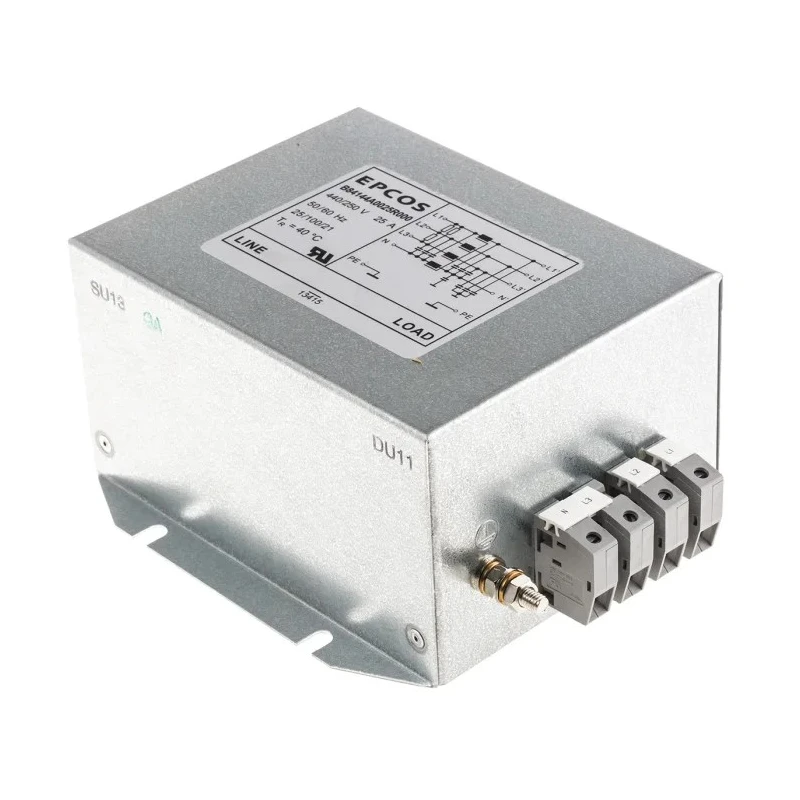

TDK Flange EMC Filter 25A 440V AC 50Hz/60Hz 3 Phase Tab Termination B84144A0025R000

Free Delivery in India | Lowest Global Shipping Charges

TDK Flange EMC Filter 25A 440V AC 50Hz/60Hz 3 Phase Tab Termination B84144A0025R000



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	91mm
Length	156mm
Model	B84144A0025R000
Depth	216mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	B84144A*R000
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	6mΩ
Minimum Operating Temperature	-25°C
Maximum Current	25A
Number of Phases	3
Leakage Current	4.1mA
Maximum Voltage	440V ac
Standards/Approvals	UL1283
Termination Style	Tab
TDK, B84144A*R000 36 A 440V ac 50Hz, 60 Hz, Flange EMC Filter, Tab 3 PhaseBrand	TDK

Key Features

Constructed with a metal case featuring threaded bushes for RF-tight installation.
Space-saving flange mounting design with easy installation.
Optimized leakage current and high insertion loss performance.
Rated for operating temperatures from -25°C to 100°C.
Suitable for converters, power electronics, and machine tools.
Leakage current minimized at 4.1mA for efficient EMC compliance.
Compliance with UL1283 and CSA 22.2 No.8 1986 standards.

Product Description

TDK B84144A0025R000 flange EMC filter is a high-performance power line EMI filter designed for industrial electronics applications. Rated at 25 amperes and 440 volts AC, it supports operation at both 50Hz and 60Hz frequencies, making it suitable for global electrical systems. The filter features a robust metal casing with threaded bushes at the end faces to ensure RF-tight mounting, promoting reliable electromagnetic compatibility.

This filter’s flange mount design is space-saving and allows fast and secure installation. With tab-style termination for easy electrical connections, this 3-phase EMC filter effectively reduces conducted and radiated emissions, enhancing the performance of sensitive electronics and machinery.

Engineered for durability, the unit operates reliably in environments ranging from -25°C up to 100°C, making it ideal for use in demanding industrial settings including wind farms, UPS systems, machine tools, and packaging machines. It offers an optimized leakage current of 4.1mA, minimizing unwanted current flow while delivering high insertion loss for superior mitigation of electromagnetic interference.

The filter conforms to international standards such as UL1283 and CSA 22.2 No.8 1986, ensuring compliance and safety in industrial deployments. Physical dimensions measuring 156mm in length, 91mm in height, and 216mm in depth allow installation in compact power electronics systems. Its low resistance value of 6mΩ guarantees minimal voltage drop and efficient current flow.

This TDK B84144A0025R000 flange EMC filter is well-suited for various industrial applications requiring EMC compliance. Its construction and performance characteristics render it ideal for power electronics, converters, and general applications in manufacturing and electronic component protection.

Constructed with a metal case featuring threaded bushes for RF-tight installation. Space-saving flange mounting design with easy installation. Optimized leakage current and high insertion loss performance. Rated for operating temperatures from -25°C to 100°C.

Suitable for converters, power electronics, and machine tools. Leakage current minimized at 4.1mA for efficient EMC compliance. Compliance with UL1283 and CSA 22.2 No.8 1986 standards. Compact dimensions: 156mm length, 91mm height, 216mm depth.
