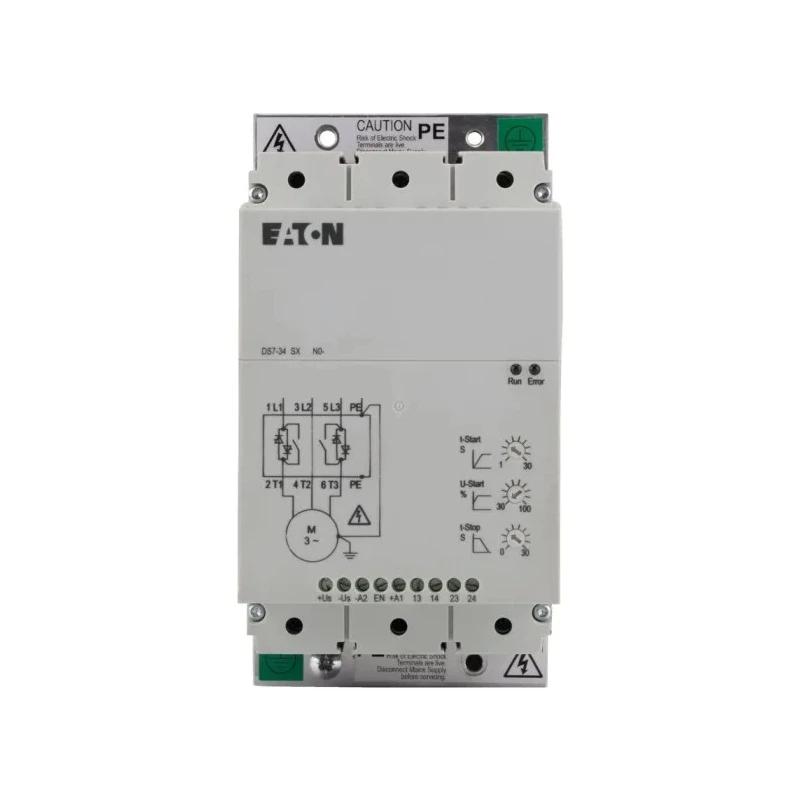

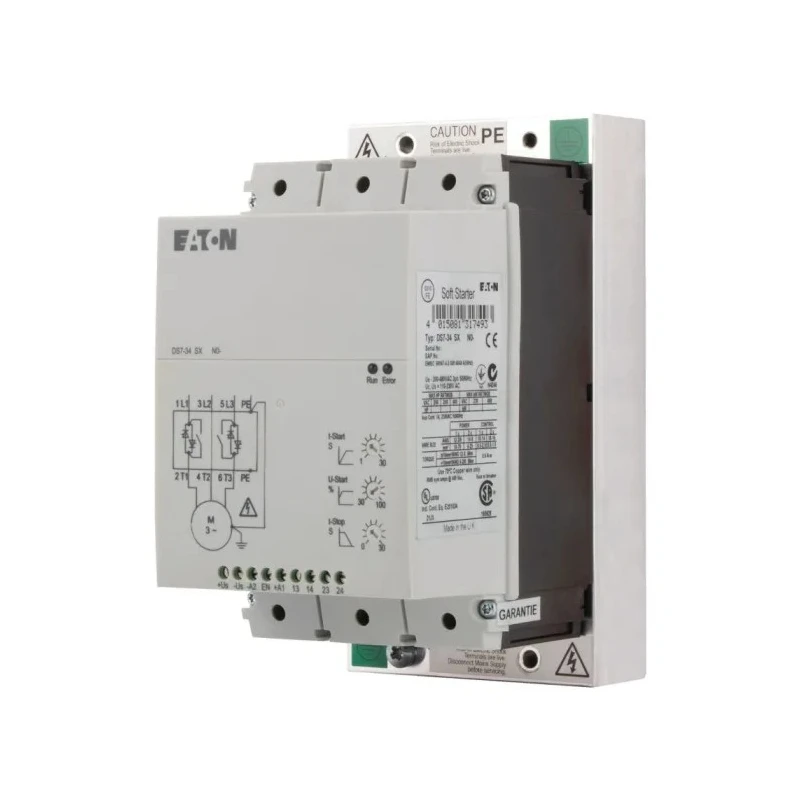

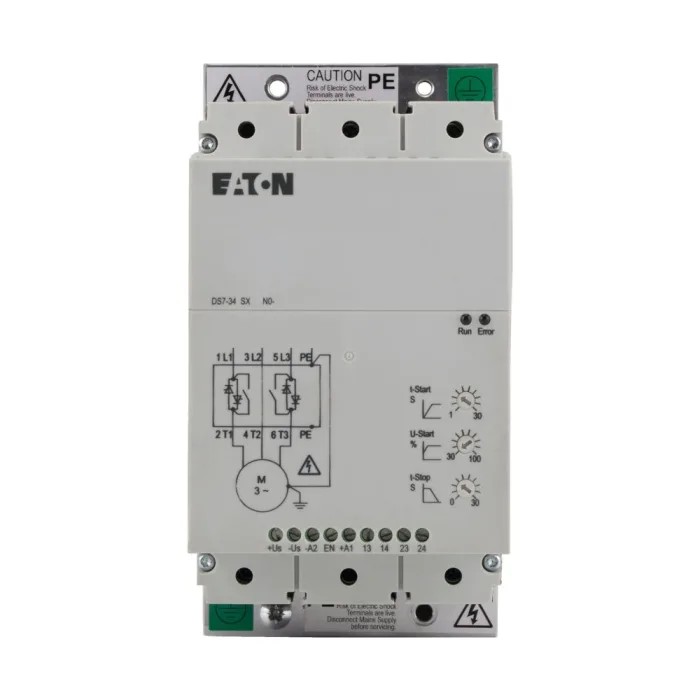

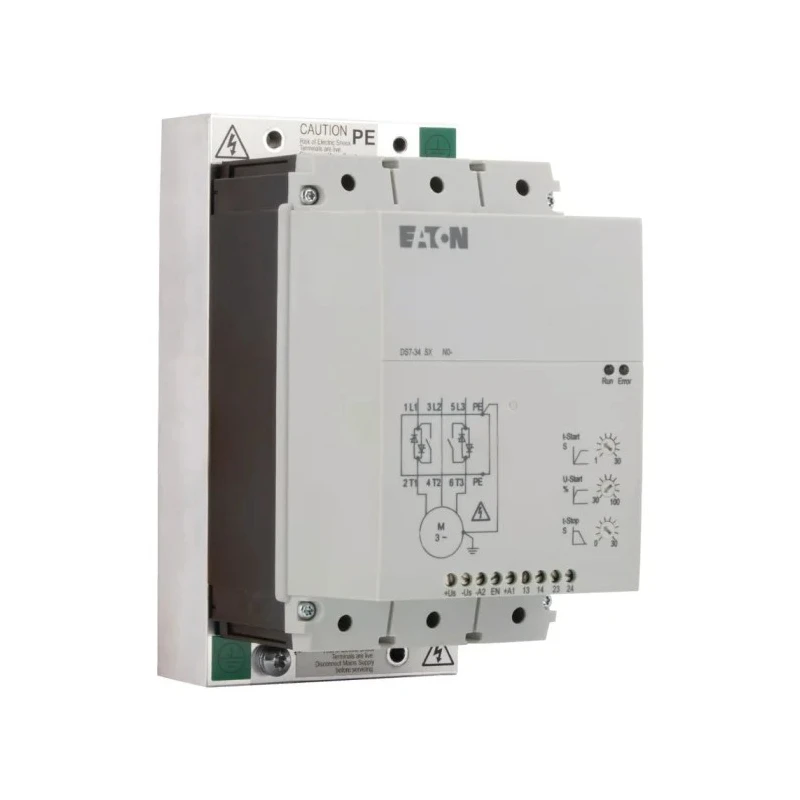

Eaton DS7 3 Phase Soft Starter 480V AC 22 kW Vertical Mount IP20 DS7-342SX041N0-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Model | IP20 |
| IP Rating | IP20 |
| Mount Type | Vertical |
| Overall Length | 108mm |
| Series | DS7 |
| Overall Width | 215mm |
| Power Rating | 22kW |
| Number of Phases | 3 |
| Maximum Supply Voltage | 480V ac |
| Overall Depth | 195mm |
Key Features
- Enables smooth motor acceleration to minimize mechanical stress and reduce inrush current.
- Internal bypass enhances efficiency by reducing energy losses during steady state operation.
- Designed for three-phase asynchronous motors to improve performance and reliability.
- Compact size with overall dimensions 108mm length, 215mm width, and 195mm depth.
- Compliance with CSA, UL, CE, and IEC standards ensures safety and quality.
- IP20 rated enclosure provides protection for dry indoor industrial environments.
- Ideal for applications such as conveyors, pumps, HVAC systems, and material handling machinery.
- Adjustable ramp-up time allows flexible control of motor starting characteristics.
Product Description
Eaton DS7-342SX041N0-N 3 Phase Soft Starter provides 22 kW power capacity with a maximum supply voltage of 480V AC and vertical mount type, integrated in a compact IP20 rated enclosure. It is engineered to enable smooth acceleration of three-phase asynchronous motors, reducing mechanical wear and inrush current to enhance operational longevity.
The soft starter features an internal bypass system that significantly reduces energy losses and heating during steady-state motor operation, improving overall efficiency. Its compact design with dimensions of 108mm length, 215mm width, and 195mm depth and a weight of approximately 1.8 kg allows easy integration into motor control panels.
Certified to CSA Std. C22.2 No. 14-05, UL 508, CE, IEC 60947-4-2 among others, this soft starter meets internationally recognized safety and performance standards. The IP20 rating ensures protection against solid objects larger than 12 mm, suitable for dry and controlled industrial environments.
This unit is ideal for industrial processes requiring controlled motor start such as conveyor systems, pumps to reduce hydraulic shock, HVAC applications demanding energy-efficient control, and material handling equipment needing gradual speed ramp-up. The adjustable ramp-up time feature adds operational flexibility to adapt to diverse load requirements.
Facilitates smooth motor starts to extend motor and equipment lifespan. Internal bypass reduces running losses for higher efficiency. Designed for reliable control of three-phase asynchronous motors. Compact footprint allows incorporation in limited panel spaces.
Complies with multiple international safety approvals. IP20 enclosure rating suitable for dry industrial environments. Adjustable ramp-up times customize motor starting profiles. Supports industrial applications in conveyor, pumping, HVAC, and material handling.
Eaton, formerly known as Moeller, continues to provide robust automation and control solutions globally. This DS7 series Soft Starter is a versatile choice in motor control technology, balancing performance, safety, and efficiency. Browse EnvMart for more Eaton motor starters and automation gear options to meet diverse industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DS7 soft starter has a power rating of 22 kW.
This soft starter operates at a maximum supply voltage of 480V AC.
The overall dimensions of the Eaton DS7 soft starter are 108mm in length, 215mm in width, and 195mm in depth.
The Eaton DS7 soft starter is designed for vertical mounting.
This model has an IP20 rating, providing protection against solid objects larger than 12 mm, suitable for dry indoor environments.
It is ideal for applications such as conveyors, pumps, HVAC systems, and material handling machinery.
Yes, it features an internal bypass system that reduces energy losses during steady-state operation, enhancing efficiency.
The Eaton DS7 soft starter is designed for three-phase asynchronous motors.
It complies with CSA, UL, CE, and IEC standards, ensuring safety and quality.
The soft starter weighs approximately 1.8 kg.
Yes, the soft starter features an adjustable ramp-up time for flexible control of motor starting characteristics.
The country of origin for this soft starter is India.
