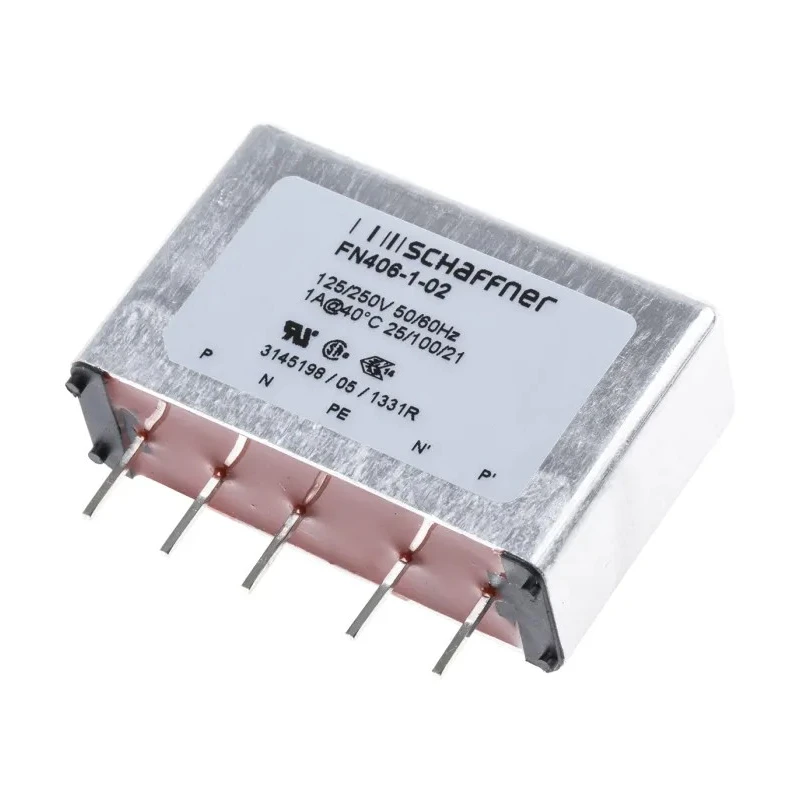

Schaffner Single-Phase PCB EMC Filter 250V AC 1A 400Hz 100nF Capacitance 12mH Inductance FN406
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 29.5mm |
| Length | 45mm |
| Model | FN406 |
| Depth | 15mm |
| Mount Type | PCB |
| Operating Frequency | 400Hz |
| Series | FN406 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1mΩ |
| Capacitance | 100nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 1A |
| Number of Phases | 1 |
| Leakage Current | 373μA |
| Maximum Voltage | 250V ac |
| Inductance | 12mH |
| Standards/Approvals | UL 94 V-0 |
| Termination Style | Pin |
Key Features
- Compact design for easy PCB mounting and improved production efficiency.
- Capacitance rated at 100nF with inductance of 12mH ensuring effective electromagnetic interference suppression.
- Operating temperature range from -25°C to 100°C suitable for diverse environments.
- Low leakage current of 373μA and resistance of 1mΩ for efficient performance.
- Pin termination style with UL 94 V-0 safety standard compliance.
- Suitable for electrical equipment, switch-mode power supplies, test and measurement instruments, and medical devices.
- Single-phase with one stage filter construction for compactness and effectiveness.
Product Description
Schaffner FN406 model single-phase PCB EMC Filter is engineered for compact and rapid PCB mounting, offering reliable electromagnetic compatibility (EMC) protection in electrical and electronic equipment. Rated for 250V AC voltage and 1A maximum current, this filter operates effectively at a frequency of 400Hz, making it ideal for single-phase power supplies and switch-mode power supplies.
The filter features a capacitance of 100nF and inductance of 12mH, providing excellent conducted attenuation performance. Its design includes high saturation resistance and outstanding thermal behaviour, supporting an operating temperature range from -25°C to 100°C. The low leakage current of 373μA and minimal resistance of 1mΩ ensure energy efficiency and minimal losses.
Terminated with pin connectors, the FN406 complies with UL 94 V-0 flammability standards, guaranteeing safety and durability. The compact low-profile design is suited for integration into small to medium-sized machines, medical devices, and test and measurement equipment.
Applications for this filter include improving EMC in industrial machines, household equipment, and specialized electronic equipment used in laboratories and manufacturing. Compact PCB mountable design for ease of integration.
Low profile with pin termination ensures flexible mounting options. Single-phase one-stage filter provides effective noise suppression. Broad temperature tolerance supports varied industrial environments. UL recognized, CSA certified and VDE approvals ensure compliance.
Designed for electrical, medical, laboratory, and manufacturing applications. Explore the full range of power line filters and EMC components compatible with Schaffner FN406 at EnvMart to optimize your equipment and ensure regulatory compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FN406 filter has a maximum voltage rating of 250V AC.
This model features a capacitance of 100nF, providing effective electromagnetic interference suppression.
The FN406 operates at an frequency of 400Hz, making it suitable for various applications in electrical equipment.
The maximum current capacity of the FN406 is 1A.

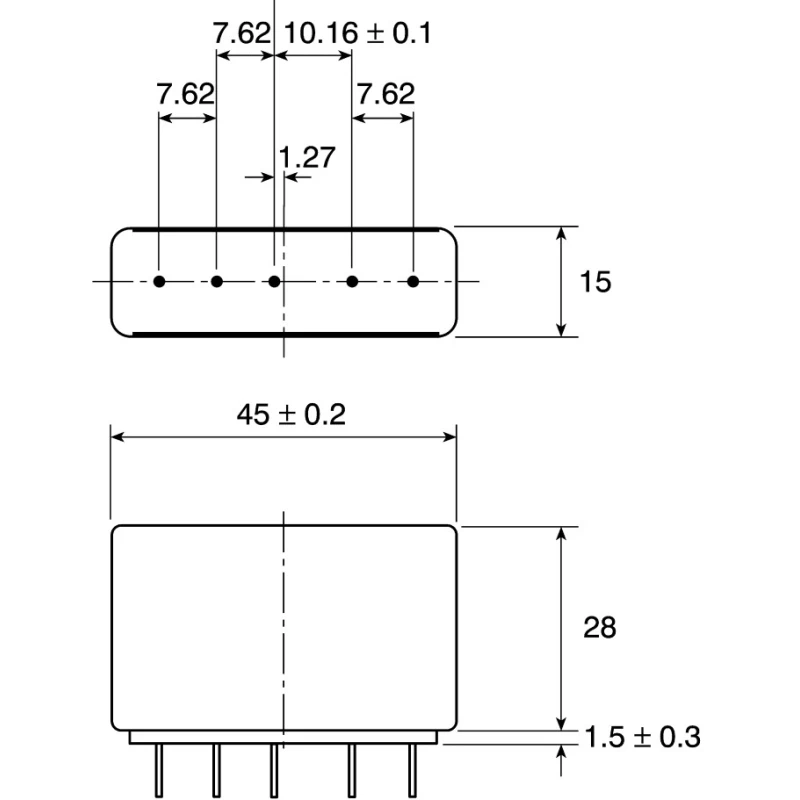

The dimensions of the FN406 are 45mm in length, 15mm in depth, and 29.5mm in height.
This filter operates effectively within a temperature range of -25°C to 100°C.
The FN406 features pin termination style, allowing for easy PCB mounting.
The inductance value of the FN406 is 12mH, contributing to its effective performance in noise suppression.
The leakage current for this model is rated at 373μA, ensuring efficient performance.
The FN406 complies with UL 94 V-0 safety standards, ensuring it meets necessary safety requirements.
This filter is suitable for use in electrical equipment, switch-mode power supplies, test and measurement instruments, and medical devices.
The FN406 features a single-stage filter construction, which enhances its compactness and effectiveness.
