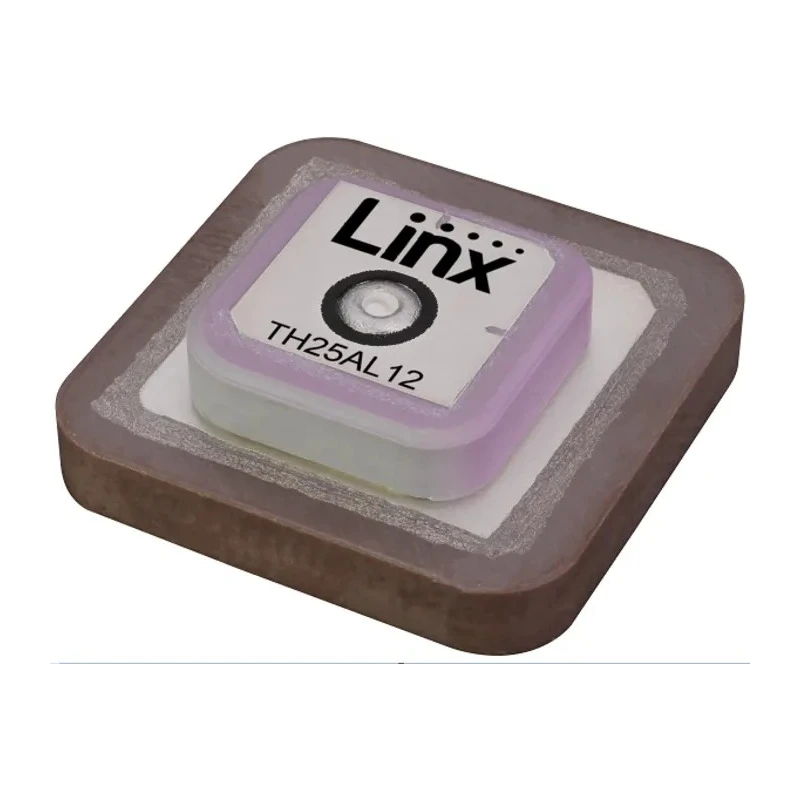

Linx Patch Multi-Band Antenna, 4 dB Gain, 1210 - 1610 MHz, Pin-Type PCB Mount, Ceramic GNSS, ANT-GNCP-TH25AL12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Linx |
| Model | ANT-GNCP-TH25AL12 |
| Connector Type | Pin-Type |
| Series | ANT-GNCP-TH25AL12 |
| Gain | 4dB |
| Standards/Approvals | AEC-Q200 Grade 2 |
| Maximum Frequency | 1610MHz |
| Minimum Frequency | 1210MHz |
| Internal/External | Internal |
| RF Protocols | GPS |
| Antenna Physical Form | Patch |
| Antenna Mount Type | PCB |
| Directivity | Directional |
| Antenna Internal Construction | Ceramic Patch Antenna |
| Number of Bands | 2 |
Key Features
- Supports GPS, Galileo, GLONASS, Beidou, and QZSS navigation systems.
- Wide frequency range from 1210 MHz to 1610 MHz for enhanced global compatibility.
- 4 dB directional gain for strong signal reception and improved location accuracy.
- Internal ceramic patch construction ensures reliable and consistent performance.
- Pin-type connector and PCB mounting for streamlined integration into devices.
- Right-hand circular polarization (RHCP) for optimal signal acquisition.
- Adhesive mounting option for secure and stable installation.
- Rated to operate in temperatures up to +105°C for robust use in automotive, industrial, or embedded environments.
Product Description
The Linx ANT-GNCP-TH25AL12 Patch Multi-Band Antenna is engineered for excellence in GNSS applications, supporting GPS, Galileo, GLONASS, Beidou, and QZSS navigation systems. Combining a compact ceramic patch design with directional right-hand circular polarization (RHCP), this antenna delivers exceptional signal gain and reliability for high-precision location solutions across the 1210 - 1610 MHz range.
Featuring a robust pin-type connector for secure PCB mounting, the ANT-GNCP-TH25AL12 is optimized for seamless integration in automotive, embedded, and industrial products. Its 4 dB gain ensures rapid satellite acquisition and an enhanced time-to-first-fix, making it ideal for critical geo-positioning and navigation tasks. Internal, adhesive mounting provides additional installation flexibility while ensuring durable operation even in demanding conditions.
Supports multiple GNSS protocols including GPS, Galileo, GLONASS, Beidou, and QZSS for broad compatibility worldwide. Covers both L1/E1/B1 and L2/L2C bands for improved positioning accuracy and speed. Ceramic patch antenna internal construction for stable performance and compact size.
Directional radiation pattern orthogonal to the antenna surface enhances signal strength. Pin-type PCB mount offers easy installation in embedded applications. Withstands operating temperatures up to +105°C, suitable for harsh environments.
RHCP polarization maximizes reception in GNSS applications. Compliant with AEC-Q200 Grade 2 standards for automotive quality and reliability. Compact internal form factor fits space-constrained designs.
Designed to serve automotive telematics, industrial monitoring, asset tracking, and high-accuracy mapping, the Linx ANT-GNCP-TH25AL12 is the antenna of choice for manufacturers and engineers demanding superior GNSS antenna technology. Its versatility, robust construction, and advanced features make it invaluable in complex wireless systems that require continuous, reliable performance.
Explore more Linx Multi-Band Antennas and advanced GNSS solutions on EnvMart to meet the evolving demands of modern electronics and positioning systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a frequency range of 1210 MHz to 1610 MHz, supporting various GNSS applications.
The antenna provides a gain of 4 dB, which enhances signal reception and location accuracy.
It supports multiple GNSS systems including GPS, Galileo, GLONASS, Beidou, and QZSS, ensuring broad compatibility.
This model features a pin-type connector and is designed for PCB mounting, allowing for easy integration into devices.
The antenna is constructed with a ceramic patch design, providing reliable and consistent performance.
It is rated to operate in temperatures up to +105°C, making it suitable for various environments including automotive and industrial applications.
This model utilizes right-hand circular polarization (RHCP) for optimal signal acquisition in GNSS applications.
It complies with AEC-Q200 Grade 2 standards, ensuring quality and reliability for automotive applications.
The antenna has a directional directivity, which enhances signal strength in specific directions.
It is designed for automotive telematics, industrial monitoring, asset tracking, and high-accuracy mapping applications.
The antenna is designed as a patch type, which is compact and suitable for space-constrained designs.
Yes, it includes an adhesive mounting option for secure and stable installation in various applications.
