Linx Chip WiFi Antenna, Bluetooth (BLE), 2.4GHz, 0.5dBi Gain, PCB Mount, Internal, ANT-2.45-CHP-T

Free Delivery in India | Lowest Global Shipping Charges

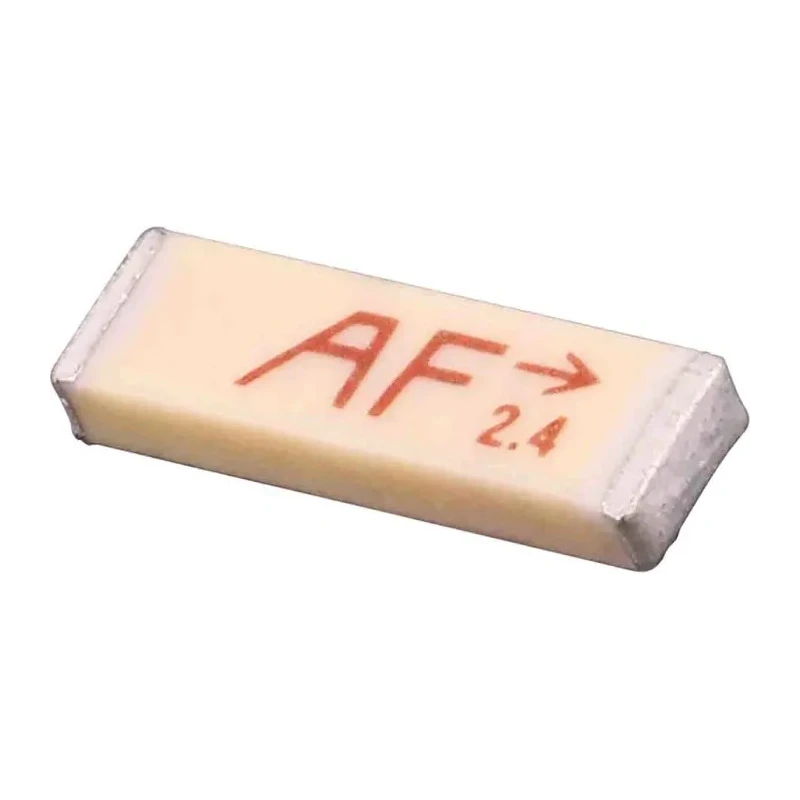

Linx Chip WiFi Antenna, Bluetooth (BLE), 2.4GHz, 0.5dBi Gain, PCB Mount, Internal, ANT-2.45-CHP-T

Name: Linx Chip WiFi Antenna, Bluetooth (BLE), 2.4GHz, 0.5dBi Gain, PCB Mount, Internal, ANT-2.45-CHP-T
Brand: Linx
SKU: 276439
Price: 20.22 USD
Availability: InStock



Category Passive Components Brand Linx Condition New

Specifications

Country of Origin	Taiwan
Brand	Linx
Model	ANT-2.45-CHP-T
Bandwidth	180MHz
Series	CHP
Gain	0.5dBi
Maximum Frequency	2.4GHz
Connector Gender	Male
Internal/External	Internal
RF Protocols	Bluetooth (BLE), WiFi
Antenna Physical Form	Chip
Antenna Mount Type	PCB
Directivity	Omni-Directional
Antenna Internal Construction	Monopole

Key Features

Internal chip antenna designed for PCB mounting.
Operates over Bluetooth (BLE) and WiFi RF protocols.
Bandwidth of 180MHz supports stable signal transmission.
Gain of 0.5dBi with omni-directional monopole internal construction.
Features a male connector with 50Ω characteristic impedance.
Utilizes advanced low temperature co-fired ceramic (LTCC) technology.
Supports frequencies up to 2.4GHz maximum operating frequency.
Smallest high-performance antenna for embedded wireless devices.

Product Description

Linx ANT-2.45-CHP-T Chip WiFi Antenna Bluetooth (BLE) is a compact, internal chip antenna designed for seamless integration in wireless products operating at 2.4GHz frequency. Its low-loss monopole construction and omni-directional directivity provide stable signal reception and transmission.

Manufactured using advanced low temperature co-fired ceramic (LTCC) technology, this antenna delivers a 0.5dBi gain with a wide bandwidth of 180MHz suitable for various RF protocols including Bluetooth (BLE) and WiFi. Its male connector and standard 50Ω characteristic impedance ensure compatibility with common PCB interfaces.

The antenna's small size and high performance make it ideal for embedding in wireless products such as Bluetooth devices, 802.11 WiFi equipment, home RF systems, and Zigbee-enabled gadgets. Its internal PCB mount design simplifies integration into compact electronics.

Typical applications include industrial, commercial, and consumer electronics requiring reliable wireless communication. Its construction allows for robust omni-directional coverage which is essential in dynamic wireless environments.

Being manufactured in Taiwan, Province Of China, the product adheres to strict quality and manufacturing standards. It is part of Linx CHP series renowned for chip antenna performance.

Internal chip antenna designed for PCB mounting. Operates over Bluetooth (BLE) and WiFi RF protocols. Bandwidth of 180MHz supports stable signal transmission. Gain of 0.5dBi with omni-directional monopole internal construction.

Features a male connector with 50Ω characteristic impedance. Utilizes advanced low temperature co-fired ceramic (LTCC) technology. Supports frequencies up to 2.4GHz maximum operating frequency. Smallest high-performance antenna for embedded wireless devices.

Ideal for Bluetooth, 802.11, Zigbee, and home RF applications. Manufactured in Taiwan, Province Of China ensuring quality and reliability. Discover a wide range of WiFi antennas and related electronic components at EnvMart for your wireless connectivity needs.
