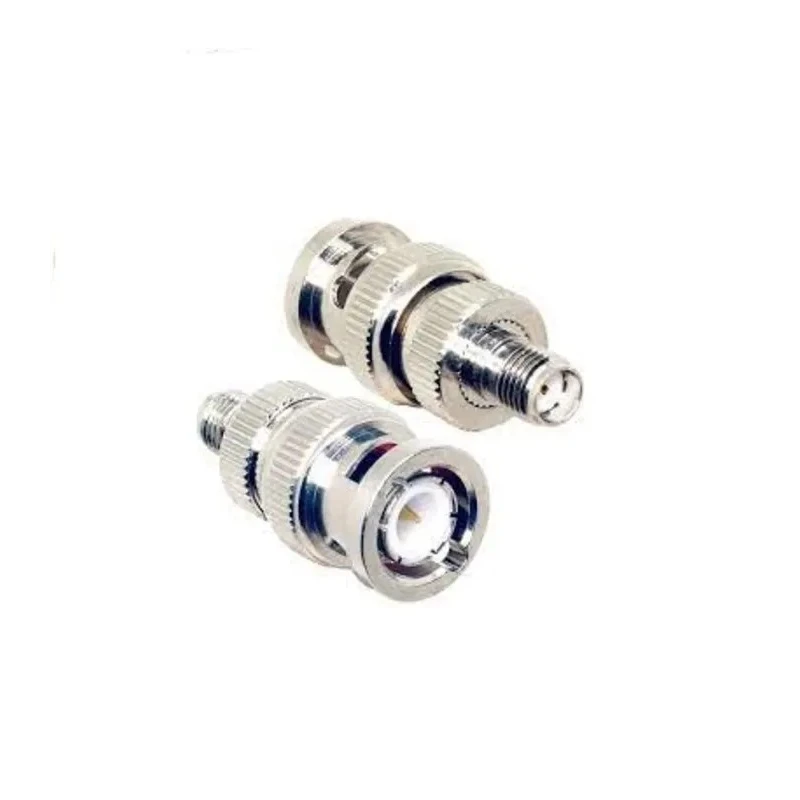

Linx Coaxial Adapter SMA Socket to BNC Plug 0 GHz to 4 GHz Frequency Gold Plated Contact ADP-SMAF-BNCM
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Linx |
| Orientation | Straight |
| Model | ADP-SMAF-BNCM |
| Mount Type | Cable |
| Operating Frequency | 0, 4GHz |
| Contact Material | Beryllium Copper Alloy |
| Cable Type | Coaxial |
| Adapter Type | SMA Socket to BNC Plug |
| Polarity | SMA |
| Contact Plating | Gold |
| Body Plating | Gold |
| Converts From Type | SMA |
| Converts to Gender - Connector | Male |
| Converts to Type | BNC |
| Converts From Gender - Contact | Female |
| Coupling Style | Threaded |
| RF Solutions Straight 50 Ω RF Adapter Female MaleBrand | RF Solutions |
| Amphenol RF BNC Connector Cable Male BNC, 50 Ω, Straight Body CrimpBrand | Amphenol RF |
Key Features
- This adapter features a straight body orientation with gold-plated contacts for excellent conductivity.
- Operating at 50 Ω impedance, it ensures minimal signal loss during testing and evaluations.
- Constructed with beryllium copper alloy contacts and gold plating for durable performance.
- Coupling utilizes a threaded style on the SMA side and bayonet lock on the BNC side, ensuring secure connections.
- The adapter supports voltage rating up to 500 V RMS and insulation resistance minimum 5000 MΩ.
- It is designed for cable mount with an inline straight orientation.
- Suitable for applications in electronic components, RF testing, and communication equipment.
- Temperature range is -65°C to +165°C, allowing usage in diverse environments.
Product Description
Linx ADP-SMAF-BNCM coaxial adapter is a high-quality device designed to convert SMA socket connectors to BNC plug connectors, supporting frequencies from 0 GHz up to 4 GHz. It features a straight body style with a gold-plated center contact and beryllium copper alloy contacts, ensuring reliable signal transmission and durability.
With a 50 Ω impedance and rated to withstand 500 V RMS voltage, this adapter provides excellent electrical performance for RF applications. The coupling style combines a threaded SMA connector (1/4in-36) on one side with a bayonet lock BNC on the other, facilitating secure connections during testing and product evaluations.
This adapter is cable-mounted with a free-hanging inline design and includes a silicon rubber gasket for protection against environmental factors. Its temperature tolerance ranges from -65°C to +165°C, making it suitable for various industrial, laboratory, and communication use cases.
Manufactured to meet MIL-STD-348A and BS EN 122340 interface standards, this Linx adapter ensures compatibility and reliable performance in demanding technical environments. It is an essential component for electronic component testing, RF systems, and communication equipment maintenance.
This adapter features a straight body orientation with gold-plated contacts for excellent conductivity. Operating at 50 Ω impedance, it ensures minimal signal loss during testing and evaluations. Constructed with beryllium copper alloy contacts and gold plating for durable performance.
Coupling utilizes a threaded style on the SMA side and bayonet lock on the BNC side, ensuring secure connections. The adapter supports voltage rating up to 500 V RMS and insulation resistance minimum 5000 MΩ. It is designed for cable mount with an inline straight orientation.
Suitable for applications in electronic components, RF testing, and communication equipment. Temperature range is -65°C to +165°C, allowing usage in diverse environments. Body plating is gold, with a silicon rubber gasket for moisture protection.
Manufactured in Taiwan, Province Of China, under quality standards MIL-STD-348A and BS EN 122340. Explore more Coaxial Adapters and related RF connectors on EnvMart for your electronic and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial adapter operates within a frequency range of 0 GHz to 4 GHz.
It converts from an SMA socket (female) to a BNC plug (male).
The adapter has an impedance rating of 50 Ω, ensuring minimal signal loss during use.
The contacts are made from beryllium copper alloy and are gold-plated for improved conductivity.
The maximum voltage rating for this adapter is 500 V RMS.
This adapter can operate safely within a temperature range of -65°C to +165°C.
The coupling style features a threaded connection on the SMA side and a bayonet lock on the BNC side.
It is designed for cable mounting with an inline straight orientation.
The adapter includes a silicon rubber gasket to protect against moisture and environmental factors.
It is manufactured to meet MIL-STD-348A and BS EN 122340 interface standards, ensuring compatibility in technical environments.
This adapter is manufactured in Taiwan, Province of China.
It is suitable for use in electronic components, RF testing, and communication equipment.
