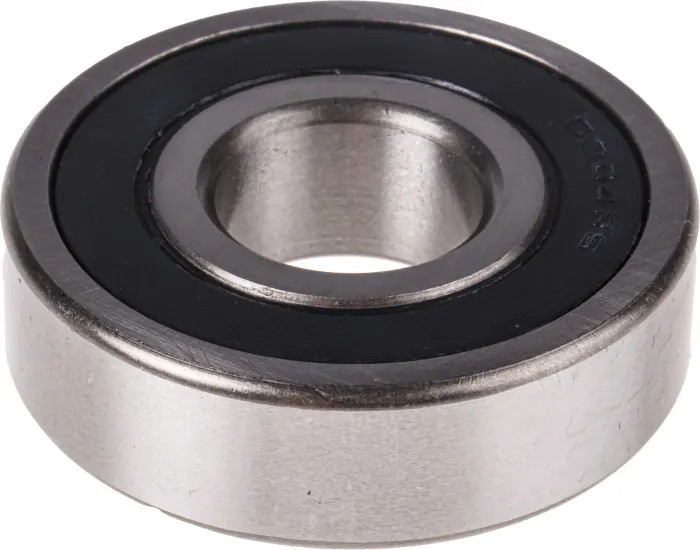

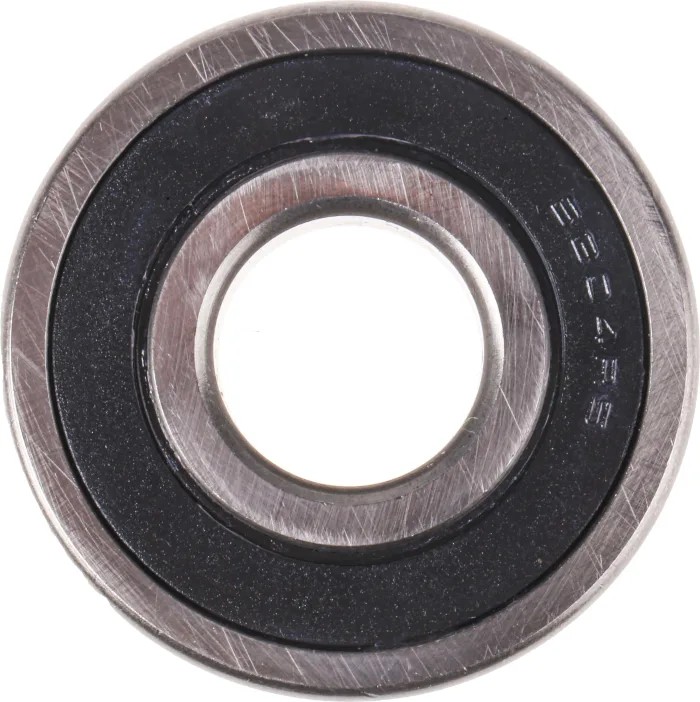

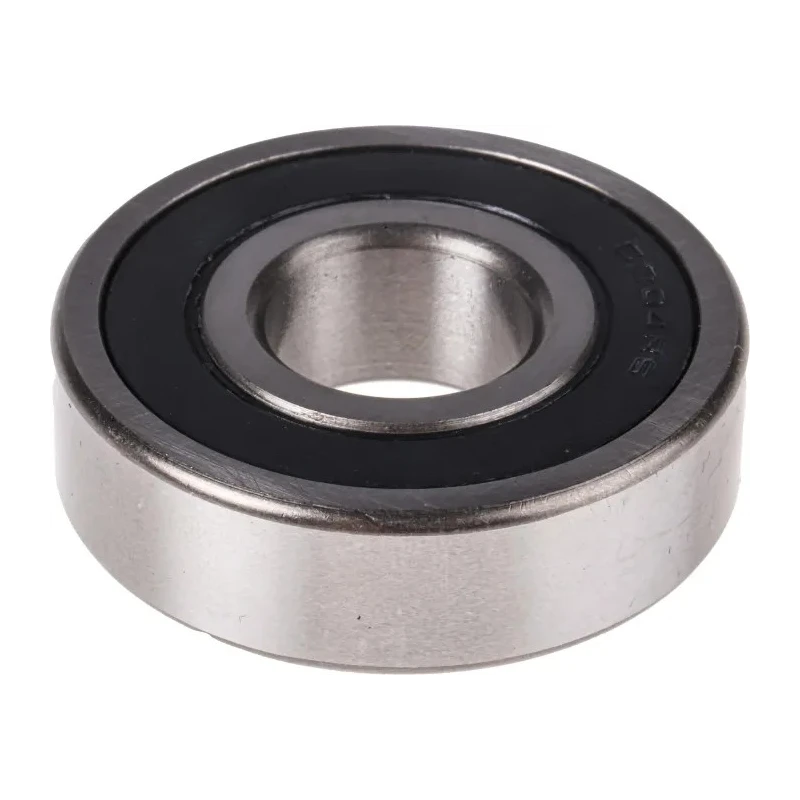

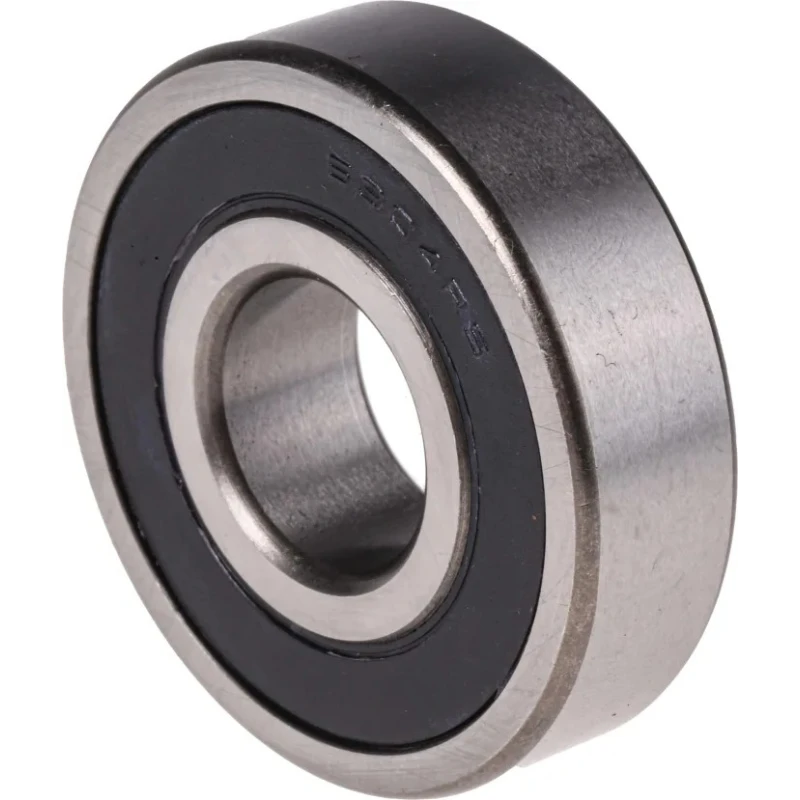

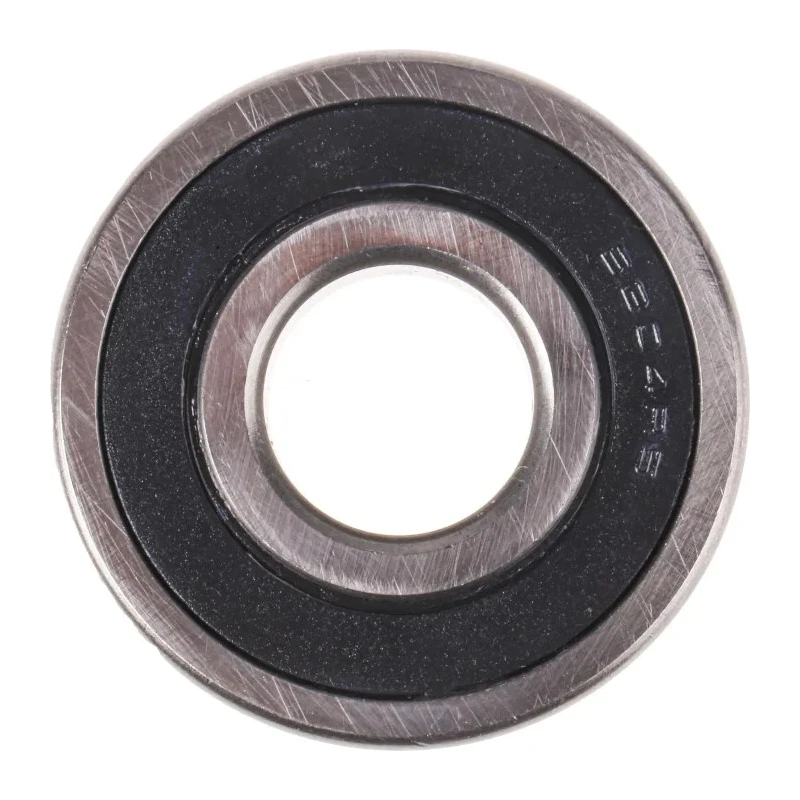

RS PRO Sealed Single Row Deep Groove Ball Bearing 20 mm ID 52 mm OD 15 mm Width C3 Clearance 6304-2RS/C3

RS PRO 6304-2RS/C3 sealed single row deep groove Ball Bearing features precise engineering with a 20 mm inside diameter, 52 mm outside diameter, and 15 mm race width, designed for reliable performance in demanding industrial applications.

This bearing includes a steel cage, race, and balls offering robust construction and long operating life. Its sealed design incorporates synthetic rubber seals that effectively prevent the ingress of dirt and contaminants while preserving the lubricant inside, ensuring smooth operation over extended periods.

The single row deep groove configuration makes this bearing highly versatile, capable of handling radial loads efficiently and supporting high rotational speeds up to 9500 rpm. The C3 internal clearance provides additional space inside the bearing to accommodate thermal expansion, reducing the risk of premature bearing failure under elevated temperatures or high-speed operation.

The parallel bore type is optimized for applications where the inner ring rotates, typical in motors, pumps, printing machines, medical devices, and food and beverage processing equipment. With a dynamic load rating of 16.8 kN and a static load rating of 7.8 kN, this bearing delivers dependable performance in a range of industrial environments.

Manufactured in China under the respected RS PRO brand, the 6304-2RS/C3 is an ideal choice for maintenance and new equipment assembly where superior sealing, durability, and high speed capability are required.

Steel cage, race, and ball materials provide durability. Sealed for contamination protection and lubricant retention. Single row deep groove design for radial load capacity and speed. C3 internal clearance supports thermal expansion.

Runs smoothly at limiting speed of 9500 rpm. Dynamic load rating of 16.8 kN and static load rating of 7.8 kN. Parallel bore for rotating inner ring applications. Suitable for medical, printing, pumps, engines, and food industry use.
