Linx Straight Coaxial Adapter SMA Socket to MCX Plug Cable Mount Gold Plated 0 to 6 GHz ADP-SMAF-MCXM

Free Delivery in India | Lowest Global Shipping Charges

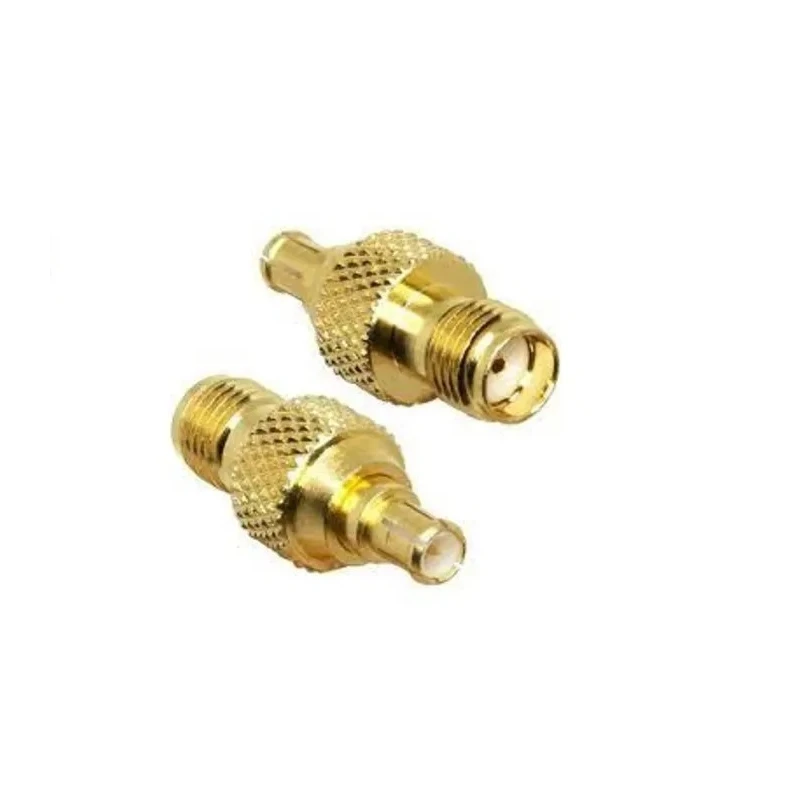

Linx Straight Coaxial Adapter SMA Socket to MCX Plug Cable Mount Gold Plated 0 to 6 GHz ADP-SMAF-MCXM

Name: Linx Straight Coaxial Adapter SMA Socket to MCX Plug Cable Mount Gold Plated 0 to 6 GHz ADP-SMAF-MCXM
Brand: Linx
SKU: 173097
Price: 25.95 USD
Availability: InStock



Category Coaxial Adapter Brand Linx Condition New

Specifications

Country of Origin	Taiwan
Brand	Linx
Orientation	Straight
Model	ADP-SMAF-MCXM
Mount Type	Cable
Operating Frequency	0, 6GHz
Contact Material	Beryllium Copper Alloy
Cable Type	Coaxial
Adapter Type	SMA Socket to MCX Plug
Polarity	SMA
Contact Plating	Gold
Body Plating	Gold
Converts From Type	SMA
Converts to Gender - Connector	Male
Converts to Type	MCX
Converts From Gender - Contact	Female
Coupling Style	Threaded

Key Features

Constructed from brass with gold finish for enhanced conductivity and corrosion resistance.
Operates within a frequency range of 0 to 6 GHz, supporting 50 Ω impedance.
Features a 1/4in-36 threaded coupling on SMA side and push-pull snap on MCX side.
Designed with a straight body style for easy inline cable mounting.
Suitable for testing and evaluation of RF products with robust insulation resistance of 5000 MΩ minimum.
Gold-plated beryllium copper alloy contacts ensure reliable electrical connection.
Rated for 250 V RMS voltage and temperature range from -65°C to +165°C.
Complies with MIL-STD-348A and CECC 22220 interface standards.

Product Description

Linx ADP-SMAF-MCXM is a precision straight coaxial adapter designed to convert SMA female sockets to MCX male plugs. The adapter is constructed with brass and finished in gold plating to deliver excellent conductivity with corrosion resistance. It supports operating frequencies from 0 to 6 GHz and is intended for coaxial cable applications requiring 50 Ω impedance.

The adapter features a 1/4in-36 threaded coupling on the SMA connector side and a push-pull snap-on coupling on the MCX side, facilitating secure and quick connections. Its straight body style suits inline cable mounting, especially in RF testing and evaluation scenarios.

Its contacts are made from beryllium copper alloy plated in gold for durability and low contact resistance. The adapter attains a high insulation resistance of at least 5000 MΩ and is rated for a voltage of 250 V RMS, ensuring reliability in demanding environments.

The temperature range of -65°C to +165°C allows use in a wide variety of industrial, laboratory, and communication environments. It is designed according to MIL-STD-348A and CECC 22220 standards to meet precision interface requirements.

Brass body with gold plating enhances conductivity and corrosion resistance. Frequency range covers DC to 6 GHz for versatile RF applications. Threaded SMA coupling and push-pull MCX coupling provide secure and fast connections.

Contact material of beryllium copper alloy with gold plating ensures reliable conductivity. Suitable for industrial, laboratory, telecommunications, and testing environments. Compliant with MIL-STD-348A and CECC 22220 standards for interface consistency.

Temperature rating from -65°C to +165°C supports harsh environment use.

This coaxial adapter is an ideal component for upgrading or adapting RF connectors in communication and testing equipment. It ensures signal integrity and mechanical reliability for demanding applications.
