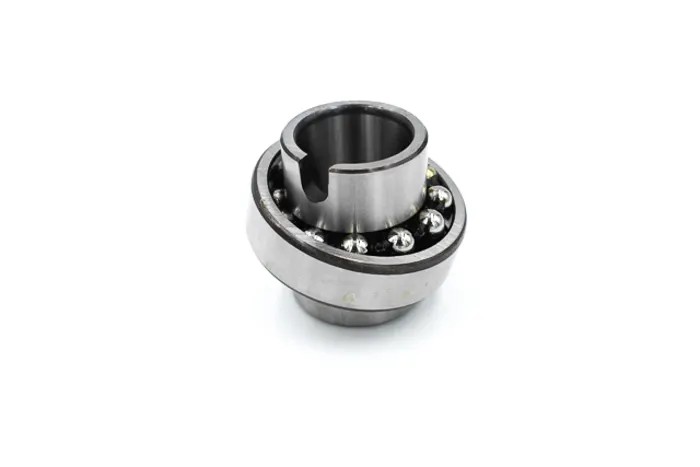

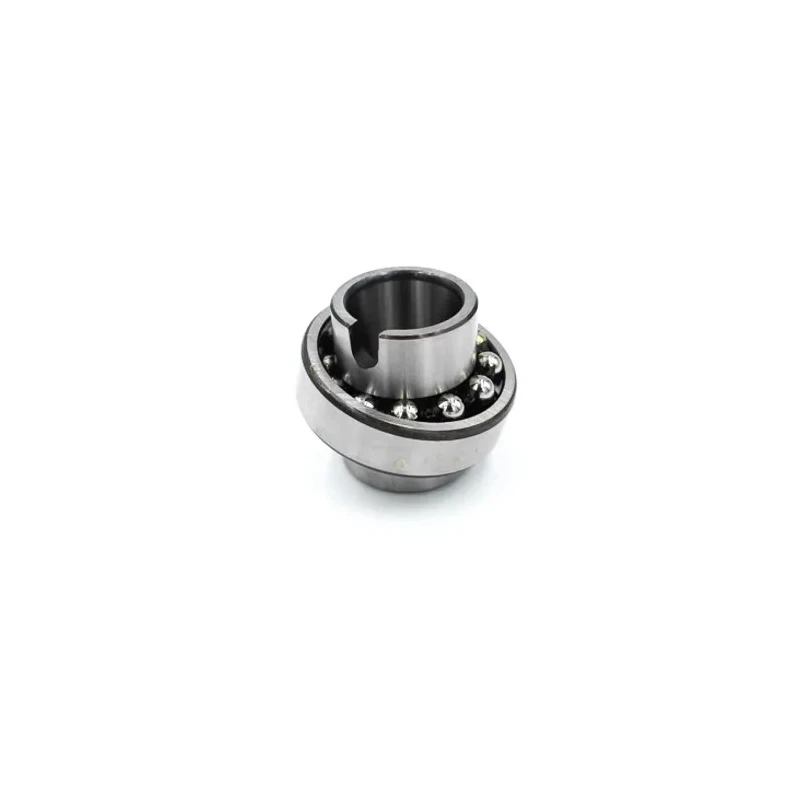

FAG Self-Aligning 2 Row Ball Bearing 20 mm ID 47 mm OD Polyamide Cage Steel Balls Open End Type TVH Series 11204-TVH

FAG 11204-TVH is a high-quality self-aligning 2 row ball bearing featuring a 20 mm inside diameter and a 47 mm outside diameter. This ball bearing is designed to compensate for angular misalignments between the inner and outer rings, which makes it suitable for applications with skew or shaft deflections.

Equipped with a polyamide cage, this bearing offers excellent lightweight properties along with durability, while the steel balls provide high rigidity and resistance to wear. The bearing features an open end type, facilitating easier maintenance and inspection activities.

This 11204-TVH model belongs to the TVH series, which is optimized for high-speed operation with a limiting speed of 18100 rpm. Its bore has a parallel design to ensure precise shaft fitting. The bearing is rated for a static load of 2.6 kN and a dynamic load of 10.1 kN, making it robust for demanding industrial environments.

The internal clearance is normalized as CN, allowing standard fit and performance under typical load conditions. The plain race design reduces friction and thermal generation during high-speed runs. Due to its self-aligning capability, it effectively accommodates angular misalignments, reducing stress on connected components and improving operational lifespan.

Features polyamide cage for lightweight and durability. Contains steel balls ensuring rigidity and wear resistance. Open end type design for ease of maintenance and inspection. TVH series optimized for high speed with a limiting speed of 18100 rpm.

Parallel bore type suitable for precise shaft fitting. Static load rating of 2.6 kN and dynamic load rating of 10.1 kN for robust performance. Internal clearance classified as CN for normal fit and performance. Plain race type designed to reduce friction and heat buildup during operation.

Self-aligning bearing type accommodates angular misalignment in shafts.

This Ball Bearing is ideal for industrial applications involving high radial loads and where reliable, quiet, and low-temperature operation at high speeds is required. It is commonly used in manufacturing machinery, HVAC systems, agricultural machinery, and various mechanical equipment requiring durable rotary bearings with compensation for shaft misalignment.
