Siretta Puck Multi-Band Antenna with SMA Male Connector, ZigBee, ISM, NB IoT, Dual WiFi, IP67, 8dB TANGO44/5M/LL/SMAM/S/S/19

Free Delivery in India | Lowest Global Shipping Charges

Siretta Puck Multi-Band Antenna with SMA Male Connector, ZigBee, ISM, NB IoT, Dual WiFi, IP67, 8dB TANGO44/5M/LL/SMAM/S/S/19

Name: Siretta Puck Multi-Band Antenna with SMA Male Connector, ZigBee, ISM, NB IoT, Dual WiFi, IP67, 8dB TANGO44/5M/LL/SMAM/S/S/19
Brand: Siretta
SKU: 80664
Price: 20.22 USD
Availability: InStock



Category Multi-Band Antenna Brand Siretta Condition New

Specifications

Country of Origin	Taiwan
Brand	Siretta

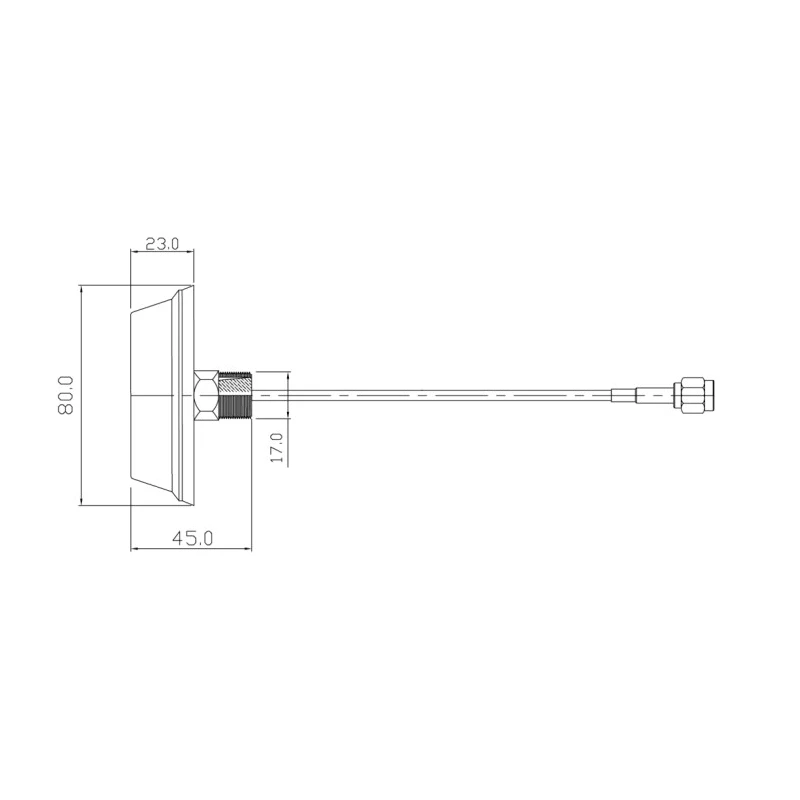

Dimensions	23 mm height x 80 mm diameter
Operating Temperature Range	-40 to +85 °C
Model	TANGO44/5M/LL/SMAM/S/S/19
Cable	RG174
Connector Type	SMA Male
Gross Weight	80 g
Bandwidth	5900MHz
Series	Tango 44
Polarization	Vertical
Gain	8dB
Lead Length	5m
Impedance	50 Ohm
Max Input Power	50 W
Mounting Method	M17 Screw Mount
Standards/Approvals	IP67
Maximum Frequency	5900MHz
Connector Gender	Male
Minimum Frequency	410MHz

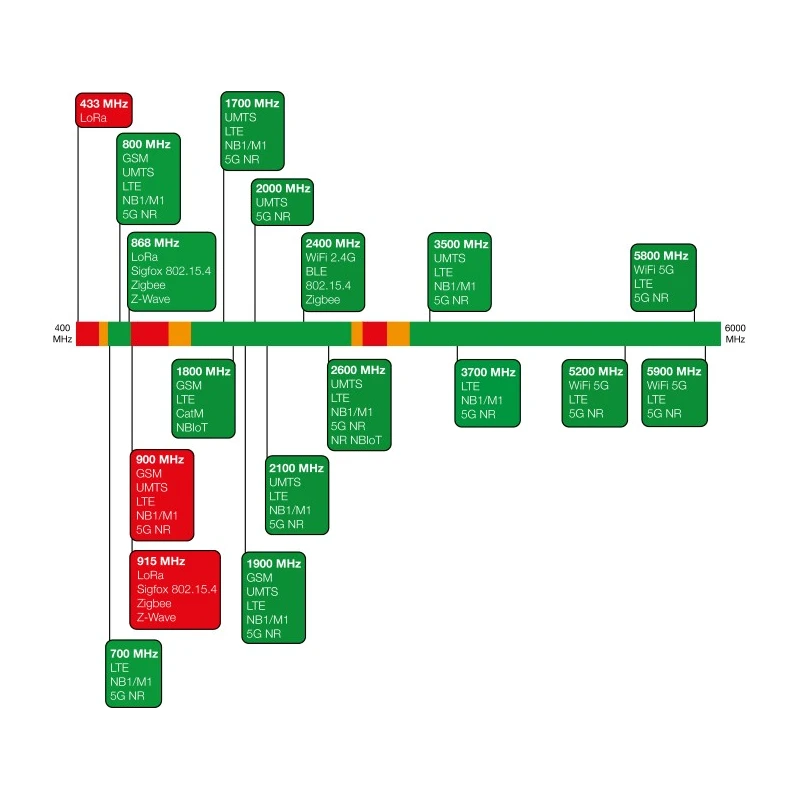

RF Protocols	ZigBee, ISM, NB IoT, WiFi (Dual Band), 4G (LTE), 5G (LTE), LoRaWAN, 4G (LTE Cat-M), 4G, Wi-Fi 6, IEEE 802.15.4, WiFi, 5G, Bluetooth (BLE), 2G (GSM/GPRS), Cat-M, 3G (UMTS), ISM Band
Antenna Physical Form	Puck
Antenna Mount Type	Screw
Directivity	Omni-Directional
Antenna Internal Construction	Low Profile
Number of Bands	2
Mounting Screw Length	22 mm
Max Panel Thickness	10 mm
Radome materials	Nylon PA6

Key Features

Omni-directional puck antenna supporting ZigBee, ISM, NB IoT, WiFi, 2G, 3G, 4G, and 5G bands.
Features robust IP67 weatherproof protection for both indoor and outdoor installations.
Provides 8dB gain performance, enhancing wireless signal strength and coverage.
Includes a 5m low-loss RG174 cable pre-terminated with SMA male connector.
Wide operating and storage temperature range from -40°C to +85°C.
Low profile and anti-vandal design for covert, secure environments.
Ground plane independent with vertical polarization and 50 Ohm impedance.

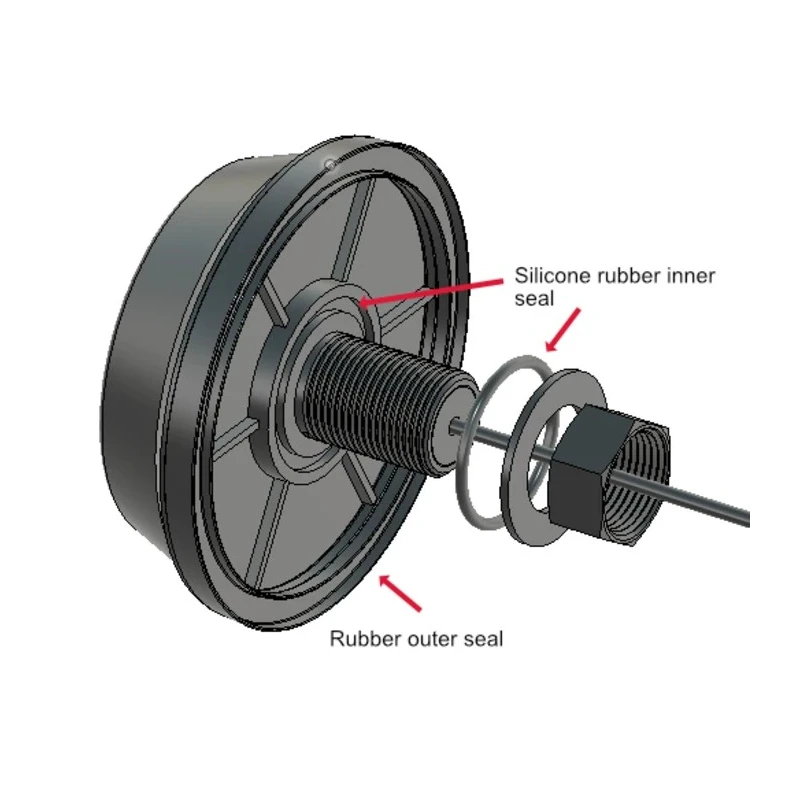

M17 screw mount allows secure installation even in industrial panel applications.

Product Description

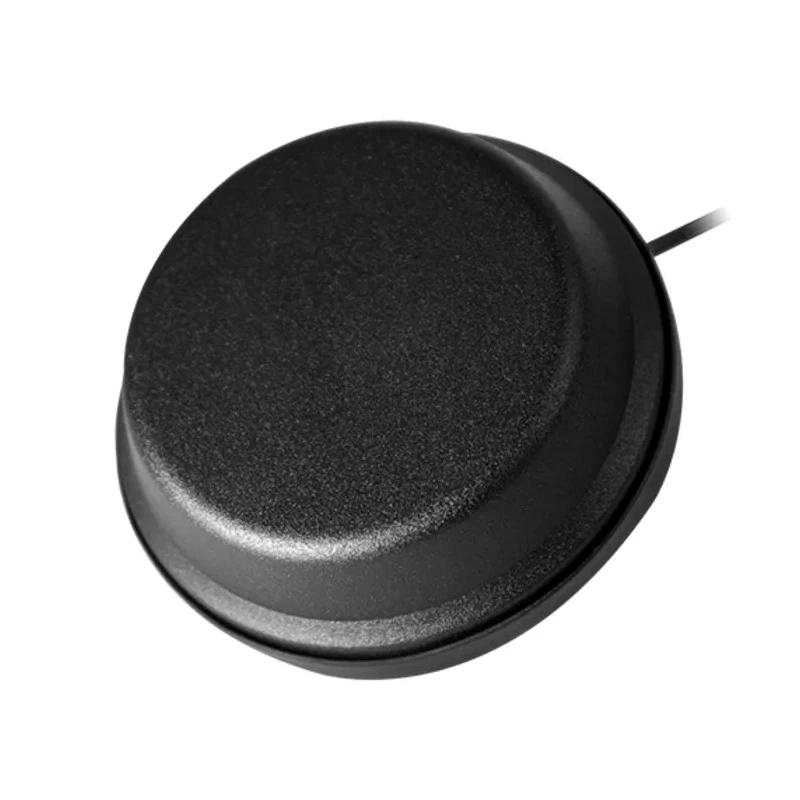

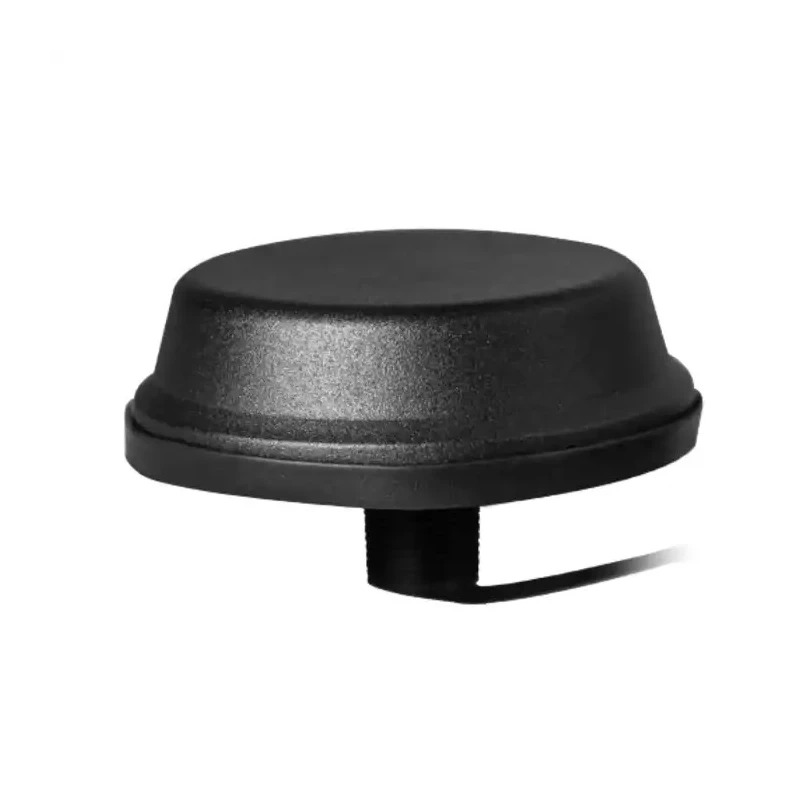

The Siretta TANGO44/5M/LL/SMAM/S/S/19 is a high-performance puck multi-band antenna specifically engineered for integration with a broad range of industrial, wireless, IoT, and telecommunications devices. Featuring an omnidirectional radiation pattern, this antenna covers multiple wireless protocols including ZigBee, ISM, NB IoT, WiFi (both 2.4GHz and 5GHz dual bands), LoRaWAN, Sigfox, 2G (GSM/GPRS), 3G (UMTS), 4G/LTE (including Cat-M and Cat-NB), 5G NR, and Bluetooth BLE, making it extremely versatile for complex radio communication environments.

Constructed with a rugged, low-profile puck form factor, the antenna is both anti-vandal and covert, suitable for secure installations in industrial premises, field panels, or outdoor assets where durability and unobtrusive presence are required. The secure mounting system utilizes an M17 screw and supports panels up to 10mm thick for robust physical attachment.

Offering a substantial 8dB gain and bandwidth up to 5900MHz, the antenna ensures reliable signal strength and data throughput across wide frequency ranges without ground plane reliance. The cable is a 5m low-loss RG174 type pre-terminated with a standard SMA male connector for quick, secure electrical installation.

Rated IP67, the antenna is designed for long-term weather resistance and operational stability in harsh environments. It is capable of operating and being stored between -40°C and +85°C, making it suitable for demanding industrial, commercial, field deployment, and outdoor scenarios.

Its 23mm height and 80mm diameter profile allow for easy mounting on equipment chassis, vehicles, instrumentation cases, or control panels, with a tough nylon PA6 radome protecting the internal elements from impacts and environmental stress.

Typical applications include IoT gateway devices, wireless meters, vehicle tracking systems, industrial asset monitoring, smart building communication hubs, and outdoor sensor networks. The antenna's multi-protocol capabilities allow one device to communicate simultaneously with a range of networks and standards, simplifying system design and connectivity.

The Siretta Tango44 series provides reliable, high-performance connectivity for industrial, commercial, and laboratory environments - browse more Multi-Band Antennas in the Electronics & Electricals category or explore advanced Siretta solutions for wireless system integration.
