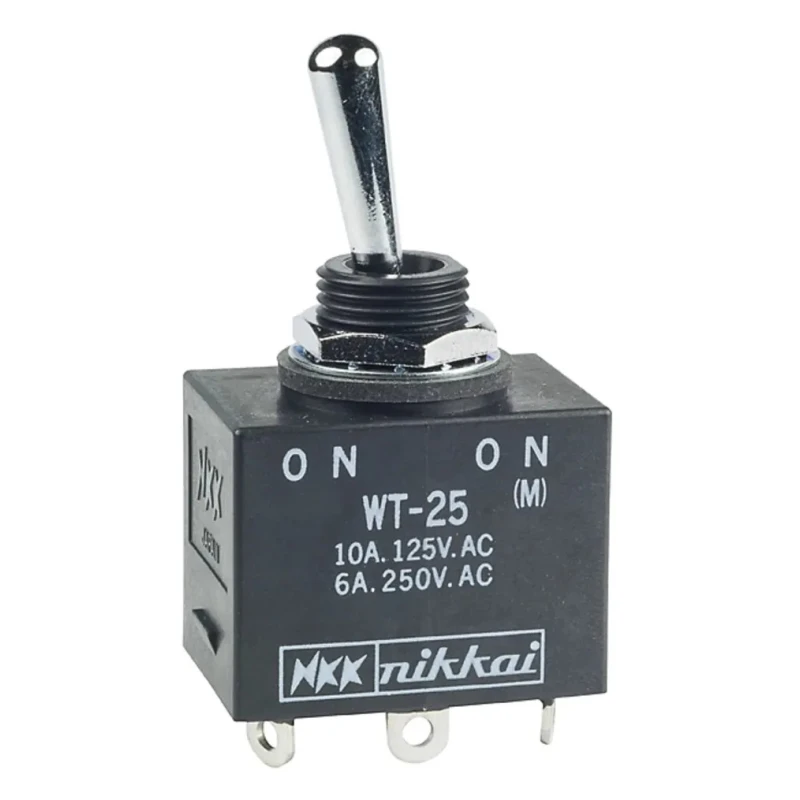

NKK Switches Toggle Switch Panel Mount On-On DPDT Solder Terminal 30V DC 125V AC WT25S

Free Delivery in India | Lowest Global Shipping Charges

NKK Switches Toggle Switch Panel Mount On-On DPDT Solder Terminal 30V DC 125V AC WT25S

Name: NKK Switches Toggle Switch Panel Mount On-On DPDT Solder Terminal 30V DC 125V AC WT25S
Brand: NKK Switches
SKU: 155398
Price: 17.03 USD
Availability: InStock



Category Toggle Switch Brand NKK Switches Condition New

Specifications

Country of Origin	China
Brand	NKK Switches
Model	WT25S
IP Rating	IP67, IP60
Mount Type	Panel
Series	WT
Maximum Operating Temperature	70°C
Contact Configuration	DPDT
Switch Configuration	On-(On)
Minimum Operating Temperature	-30°C
Panel Cutout Size	12.5 mm
Terminal type	Solder
Standards/Approvals	UL, CSA
Switch Operation	On-On
Actuator Length	17.5mm
Contact DC Voltage	30V dc
Switch Contact Current	10A
Mechanical Life	50000Operations
Contact AC Voltage	125V ac
Actuator Material	Brass with Chrome Plated

Key Features

DPDT (Double Pole Double Throw) contact configuration supports dual switching circuits.
10A switch contact current rating ensures reliable performance under load.
Panel mount type with solder terminal facilitates secure installation.
Sealed construction with IP67 and IP60 ratings protects against dust and water ingress.
Brass actuator material with chrome plating offers corrosion resistance and durability.
Panel cutout size of 12.5 mm and actuator length of 17.5 mm provide precise fit and operation.
Operating temperature range from -30°C to 70°C for use in harsh environments.
Mechanical life rated for 50000 operations ensures long-term reliability.

Product Description

NKK Switches WT25S Toggle Switch is a panel mount, on-on DPDT toggle switch rated for 30V DC and 125V AC use. It features a durable brass actuator with chrome plating and solder terminals designed for robust and reliable electrical switching in critical industrial and automation environments.

This toggle switch is engineered for harsh environments and offers a sealed IP67/IP60 construction that protects the contacts from dust and water, making it highly suitable for outdoor, marine, and industrial applications. Its design focuses on long operational life with a mechanical durability rated for 50000 operations.

The switch supports a 10A contact current at the specified voltages, enabling it to handle moderate load electrical circuits. The panel cutout size of 12.5 mm and an actuator length of 17.5 mm ensure easy and secure mounting on control panels and electrical enclosures.

Temperature tolerance ranges from -30°C up to 70°C, supporting use in extreme ambient conditions encountered in transportation, construction equipment, and medical devices.

Mechanical features include an anti-jamming design that prevents damage to the contacts from excessive force, contributing to switch reliability. The WT series is recognized for its wide application and compliance with UL and CSA certifications, underscoring its adherence to international safety and quality standards.

DPDT contact configuration with on-on switch operation. 10A contact current rating for dependable electrical switching. Sealed construction with IP67 and IP60 ratings for environmental protection. Brass actuator with chrome plating for durability.

Panel mount with 12.5 mm cutout for installation. Mechanical life of 50000 operations ensures long-lasting use. Temperature range -30°C to 70°C meets industrial requirements. Complies with UL and CSA standards for safety and quality.

Suitable for marine, medical, transportation, and construction applications. Anti-jamming toggle design protects contacts from mechanical damage. Explore more Toggle Switches and related electrical components in the Electronics & Electricals category at EnvMart for high-quality, certified solutions.
