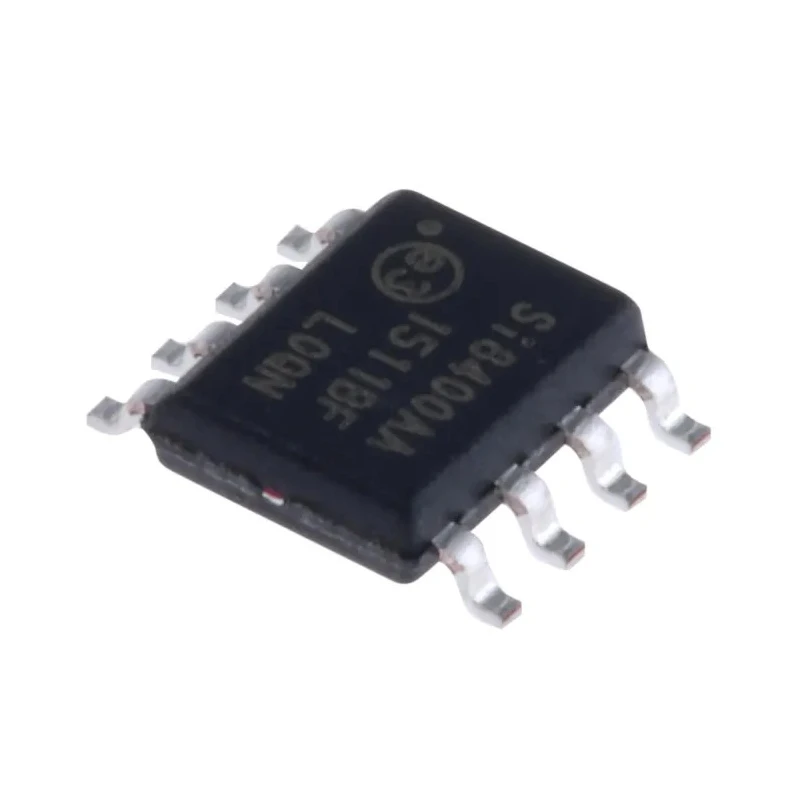

Skyworks Solutions Inc 2-Channel Digital Isolator 1 Mbps, 1 kVrms, 5.5V, 8-Pin SOIC Si8400AA-B-IS
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Skyworks Solutions Inc |
| Length | 5mm |
| Model | Si8400AA-B-IS |
| Depth | 1.55mm |
| Width | 4mm |
| Mount Type | Surface |
| Series | Si840 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 6.3mA |
| Number Of Channels | 2 |
| Rise Time | 6ns |
| Power Dissipation | 220W |
| Supply Voltage | 5.5V |
| Standards/Approvals | IEC, CSA, UL |
| Maximum Forward Voltage | 5.5V |
| Number of Pins | 8 |
| Maximum Data Rate | 1Mbps |
| Propagation Delay Time | 29ns |
| Package Style | SOIC |
Key Features
- The device supports a maximum data rate of 1 Mbps.
- It features a 1 kVrms isolation voltage for robust electrical isolation.
- The supply voltage is rated at 5.5V ensuring low power dissipation of 220W.
- Compact 8-Pin SOIC package with surface mount technology enables space-efficient PCB integration.
- Operating temperature range extends from -40°C to 125°C for industrial applications.
- Propagation delay time is 29ns, facilitating fast signal transmission.
- High electromagnetic immunity enhances signal integrity in noisy environments.
- Certified to IEC, CSA, and UL standards, ensuring safety and quality.
Product Description
Skyworks Solutions Inc Si8400AA-B-IS is a 2-Channel Digital Isolator IC designed for applications requiring robust electrical isolation with high performance and low power consumption. This device supports a maximum data rate of 1 Mbps and an isolation voltage of 1 kVrms, making it suitable for sensitive electronic circuits requiring isolation from high-voltage domains.
Housed in a compact 8-Pin SOIC surface-mount package, the Si8400AA-B-IS supports a supply voltage of 5.5V and features low power dissipation of 220W. It operates over a wide temperature range from -40°C to 125°C, enabling its deployment in harsh industrial and commercial environments.
The device exhibits a propagation delay of 29ns and a rise time of 6ns, facilitating rapid signal isolation with minimal latency. Its high electromagnetic immunity ensures reliable operation in electrically noisy settings commonly found in industrial and HVAC systems.
Spatially it occupies 5mm length, 4mm width, and 1.55mm depth, supporting modern compact PCB designs requiring minimal space. Certified under IEC, CSA, and UL standards, this digital isolator meets strict safety and performance criteria.
Typical applications include industrial automation, power supply isolation, data communication interfaces, and medical instrumentation, where signal integrity and electrical isolation are critical. Manufactured in Taiwan, Province Of China, this component adheres to high manufacturing and quality standards.
The device supports a maximum data rate of 1 Mbps. Features robust 1 kVrms isolation voltage. Low power dissipation of 220W with 5.5V supply voltage. Compact 8-Pin SOIC surface-mount package for efficient PCB integration.
Operating temperature range from -40°C to 125°C. Fast propagation delay time of 29ns and 6ns rise time. High electromagnetic immunity for reliable operation. Dimensions: 5mm length × 4mm width × 1.55mm depth. Certified by IEC, CSA, and UL safety standards.
Manufactured in Taiwan, Province Of China. Explore the Skyworks Solutions Inc range and other Digital Isolator ICs on EnvMart for reliable electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The device supports a maximum data rate of 1 Mbps, allowing for efficient signal transmission in various applications.
It features a robust isolation voltage of 1 kVrms, ensuring effective electrical isolation for sensitive circuits.
This digital isolator has dimensions of 5mm in length, 4mm in width, and 1.55mm in depth, making it suitable for compact PCB designs.
The operating temperature range extends from -40°C to 125°C, allowing for use in harsh industrial environments.
It has a low power dissipation of 220W, contributing to energy efficiency in electronic applications.
This model features 2 channels, enabling it to isolate multiple signals simultaneously.
The rise time is 6ns, facilitating rapid signal transitions and improving overall performance.
It is certified to IEC, CSA, and UL standards, ensuring compliance with safety and quality requirements.
It is housed in a compact 8-Pin SOIC surface-mount package, suitable for modern PCB integration.
The propagation delay time is 29ns, which helps in maintaining fast signal transmission with minimal latency.
The supply voltage is rated at 5.5V, which supports its low power operation.
This component is manufactured in Taiwan, Province Of China, adhering to high manufacturing and quality standards.
