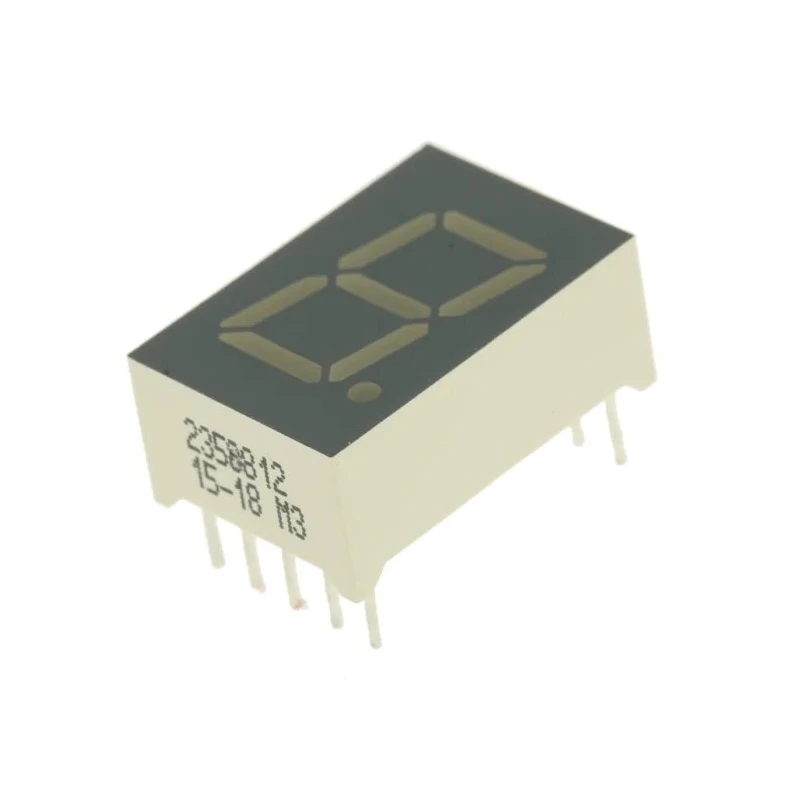

Kingbright 1 Digit 7 Segment Cathode Green LED Display Right Side 12.7 mm SC05-11GWA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | SC05-11GWA |
| Mount Type | Through Hole |
| Character height | 12.7mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 12.7mm |
| External Depth | 8mm |
| External Height | 19mm |
| Power Dissipation | 62.5mW |
| Luminous Intensity | 10mcd |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 568nm |
| Colour of Face | Grey |
| Forward Voltage | 2.2V |
| Forward Current | 25mA |
| Number of Characters | 1 |
| Character Width | 7.3mm |

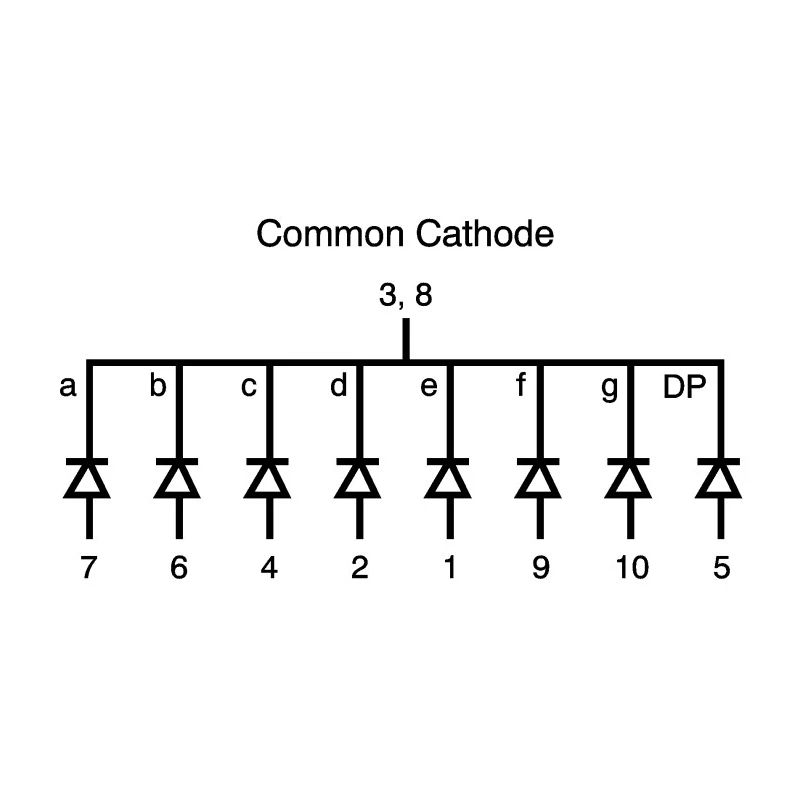

| Common Connection | Cathode |

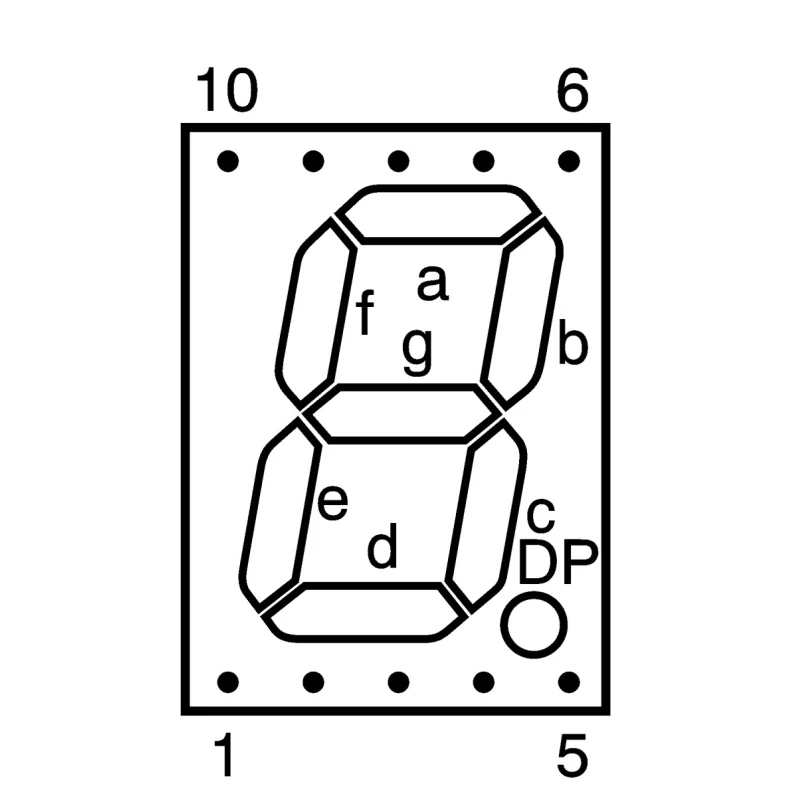

| Decimal Orientation | Right Side |
Key Features
- The display features a single character with 7 segments for clear digit representation.
- Character height is 12.7 mm and character width is 7.3 mm, ideal for compact display applications.
- Operates at a forward voltage of 2.2 V and forward current of 25 mA, ensuring low power consumption.
- Constructed with a grey face and white segments for enhanced contrast and easy readability.

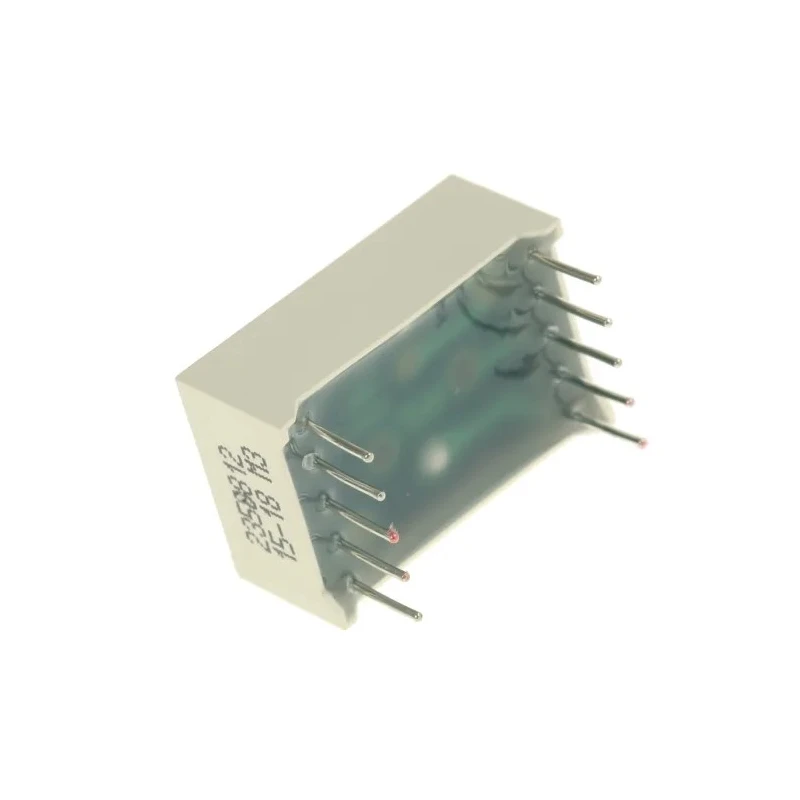

- Designed with through-hole mounting for reliable and easy PCB installation.
- Meets RoHS compliance standards for environmental safety.
- Operating temperature range is from -40°C to 85°C suitable for industrial, laboratory, and commercial uses.
- Luminous intensity of 10 mcd ensures bright display in various lighting conditions.
Product Description
Kingbright SC05-11GWA is a single digit 7 segment LED display designed for precise numerical displays in industrial, laboratory, commercial, and manufacturing environments. This LED display features a cathode common connection and emits a bright green light with a dominant wavelength of 568 nm, providing excellent visibility in diverse ambient conditions.
The 7-segment configuration allows clear digit representation with a character height of 12.7 mm and character width of 7.3 mm, making it suitable for compact and space-conscious display panels. Its grey face with white segments offers high contrast for readability and is mechanically rugged for durability.
The device operates at a low forward voltage of 2.2 V with a forward current of 25 mA, ensuring energy efficiency. It has a power dissipation of 62.5 mW, maintaining safe operation within thermal limits. The decimal point is oriented on the right side, ideal for numeric values requiring precise decimal placement.
Mounting is through-hole, allowing straightforward installation on PC boards or sockets. It complies with RoHS environmental standards, ensuring safety and regulatory compliance.
The operating temperature range from -40°C to 85°C supports deployment in various environments, including harsh industrial settings. The luminous intensity rating of 10 mcd categorizes the display for use cases requiring illuminated numeric output with clarity.
Single digit, 7 segment LED display for numerical visualization. Green LED color at 568 nm dominant wavelength for high visibility. Through-hole mount type enables secure PCB integration. Low forward voltage and current optimize power consumption.
Robust grey face with white segments for clear character display. Wide operating temperature range from -40°C to 85°C. RoHS compliant ensuring environmentally friendly materials and manufacturing. Right-side decimal orientation suitable for precise numeric display needs.
This Kingbright LED display module is ideal for electronics assemblies requiring reliable numerical readouts, including instrumentation, control panels, and communication devices. For more options on LED Displays and modules, please explore EnvMart's comprehensive electronics components catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this model is 12.7 mm, making it suitable for compact display applications.
It operates at a forward voltage of 2.2 V and a forward current of 25 mA, ensuring low power consumption.
The luminous intensity of this unit is rated at 10 mcd, providing bright visibility in various lighting conditions.
This model features a through-hole mounting type, allowing for easy and reliable installation on PCB boards.
This display utilizes a cathode common connection, which is typical for 7-segment LED displays.
The external dimensions of this unit are 12.7 mm in width, 8 mm in depth, and 19 mm in height.
Yes, it complies with RoHS standards, ensuring it is made with environmentally friendly materials.
The LED emits a green light with a dominant wavelength of 568 nm, and the face of the display is grey with white segments for high contrast.
This model is suitable for applications in industrial, laboratory, commercial, and manufacturing environments where numerical displays are needed.
The display features 7 segments, allowing for clear digit representation.
The power dissipation is rated at 62.5 mW, which helps maintain safe operation within thermal limits.
