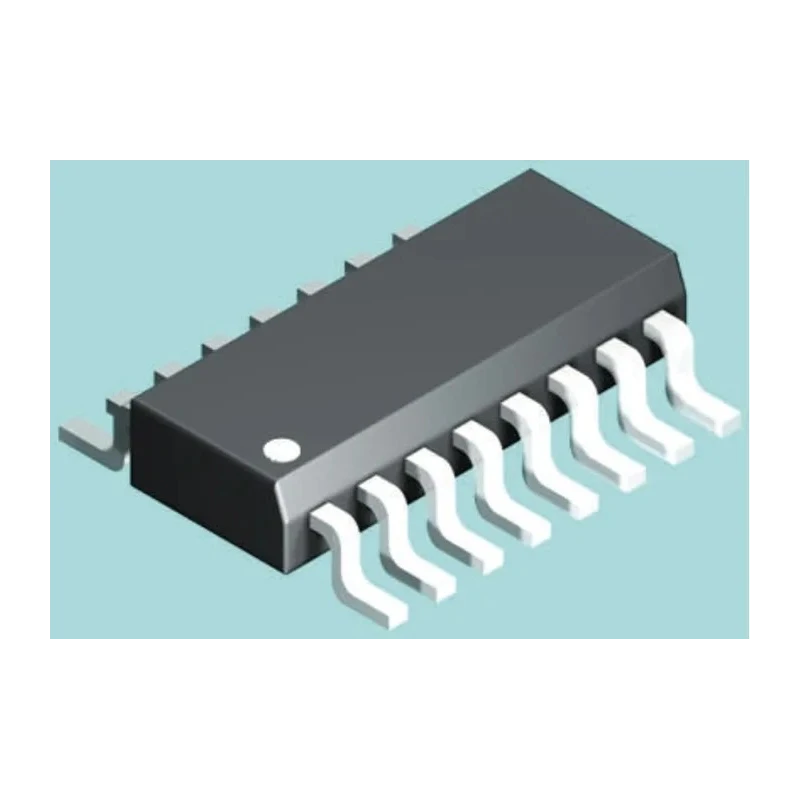

STMicroelectronics 7 Darlington Transistor NPN 500 mA 50 V HFE:1000 16-Pin SOIC ULN2001D1013TR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 7 Darlington Transistor NPN 500 mA 50 V HFE:1000 16-Pin SOIC ULN2001D1013TR

Name: STMicroelectronics 7 Darlington Transistor NPN 500 mA 50 V HFE:1000 16-Pin SOIC ULN2001D1013TR
Brand: STMicroelectronics
SKU: 211563
Price: 0.44 USD
Availability: InStock



Category Darlington Transistor Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.65mm
Length	10mm
Model	ULN2001D1013TR
Mount Type	Surface
Series	ULN200x
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-20°C
Standards/Approvals	ECOPACK/JESD97
Pin Count	16
Maximum Continuous Collector Current Ic	500mA
Maximum Collector Emitter Voltage Vceo	50V
Number of Elements per Chip	7
Minimum DC Current Gain hFE	1000
Transistor Polarity	NPN
Maximum Collector Emitter Saturation Voltage VceSAT	1.6V
STMicroelectronics ULN2001D1013TR 7 Darlington Transistor NPN, 500 mA 50 V HFE	1000, 16-Pin SOIC

Key Features

This transistor has a high current gain (hFE) of 1000.
It features a 16-pin SOIC surface mount package for compact PCB layout.
Seven Darlington pairs are integrated within the chip, providing efficient power switching capabilities.
Maximum collector-emitter saturation voltage is 1.6 V for minimal power loss during switching.
Operating temperature range is from -20°C to 85°C, suitable for various environmental conditions.
The device is compliant with ECOPACK and JESD97 standards ensuring environmental safety and reliability.
Inputs are standard logic level for TTL or CMOS compatibility.
Integrated suppression diodes protect against inductive load damage.

Product Description

STMicroelectronics ULN2001D1013TR 7 Darlington Transistor NPN, with a maximum continuous collector current of 500 mA and collector-emitter voltage rating of 50 V, is designed for efficient power switching in industrial and electronic applications.

This transistor array features seven integrated Darlington pairs combined with suppression diodes for reliable switching of inductive loads. Housed in a compact 16-pin SOIC surface mount package, ULN2001D1013TR simplifies circuit design while maintaining high performance.

With a minimum DC current gain of 1000 and a collector-emitter saturation voltage of 1.6 V, these transistors assure low power dissipation and increased efficiency. The device operates reliably over a temperature range from -20°C to 85°C, making it suitable for various environmental conditions in industrial, HVAC, manufacturing, and electronic projects.

STMicroelectronics ULN2001D1013TR is RoHS compliant and meets ECOPACK and JESD97 standards, ensuring environmental compliance and product quality.

The logic level inputs are compatible with TTL and CMOS, facilitating easy integration with digital control systems. This makes the ULN2001D1013TR ideal for driving relays, motors, and other inductive loads requiring high current handling.

This transistor array contains seven Darlington pairs with NPN polarity for effective switching. Surface mount SOIC package enables compact PCB designs. Maximum collector current per output is 500 mA with a voltage rating of 50 V.

Minimum gain (hFE) of 1000 ensures strong signal amplification. Operating temperature range from -20°C to 85°C supports harsh environment use. Integral suppression diodes protect against voltage spikes from inductive loads.

Fully compliant with ECOPACK and JESD97 environmental standards. Compatible with TTL and CMOS logic inputs for versatile control applications. Explore the Electronics & Electricals category on EnvMart for more STMicroelectronics semiconductor solutions and Darlington Transistor arrays.
