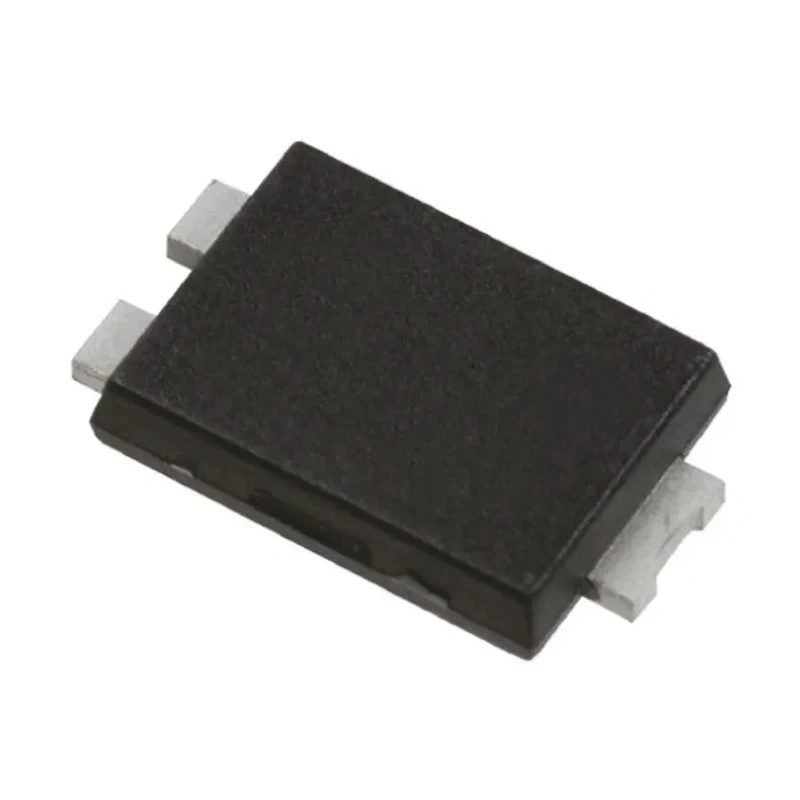

DiodesZetex Switching Diode Single 6 A 3-Pin PowerDI5 Package 200 V PDU620-13

The DiodesZetex PDU620-13 is a high-performance, single switching diode designed for electronic and industrial applications requiring robust and reliable switching capabilities. It supports a maximum continuous forward current of 6 amps and is packaged in a surface mount PowerDI5 package with three pins, facilitating compact circuit board designs.

This diode operates efficiently under high voltage conditions with a maximum peak reverse repetitive voltage of 200 volts, making it suitable for circuits where voltage spikes need to be controlled.

The diode features a fast switching time with a peak reverse recovery time of only 25 nanoseconds and a low forward voltage drop of 975 millivolts which reduces power dissipation in switching circuits.

Engineered to operate within a wide temperature range from -65°C to 175°C, this component is capable of withstanding harsh industrial environments and transient surge current events up to 150 amps.

Measuring 5.45 mm in length, 4.05 mm in width, and 1.15 mm in height, the compact dimensions of this diode allow for space-efficient circuit designs. It does not have specific automotive standards or certifications but is suitable for general industrial electronics.

Made in China and supplied new, this diode is an essential semiconductor component for switching applications in industrial, manufacturing, and electronics assembly sectors. Constructed with silicon junction technology for reliable switching diode performance.

Surface mount PowerDI5 package ensures easy PCB assembly with three-pin configuration. Supports continuous forward current up to 6 A for demanding applications. Handles peak reverse voltages up to 200 V for protection against voltage spikes.

Low forward voltage drop of 975 mV reduces power loss in circuits. Fast peak reverse recovery time of 25 ns improves switching efficiency and reduces heat. Operational temperature range from -65°C to 175°C ensures durability in extreme conditions.

Capable of withstanding 150 A peak non-repetitive forward surge current. Small and compact form factor dimensions support space-saving electronic designs. Manufactured in China with New product condition for assured quality and reliability.

Ideal for use in industrial automation, power management, manufacturing electronics, and semiconductor assemblies. Browse our comprehensive range of Switching Diodes and semiconductor components at EnvMart for quality assured electronic parts and solutions.
