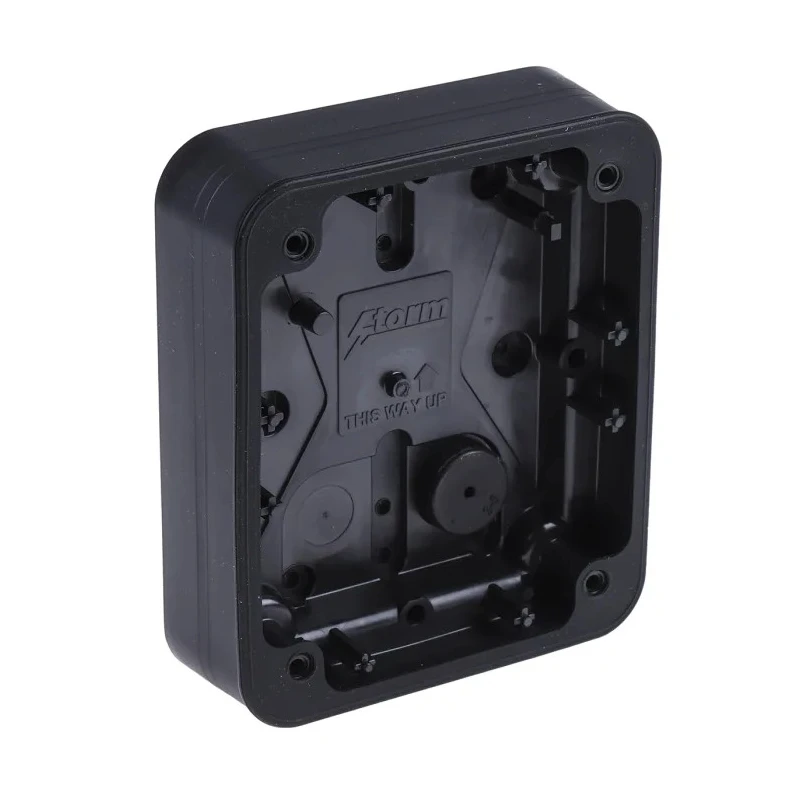

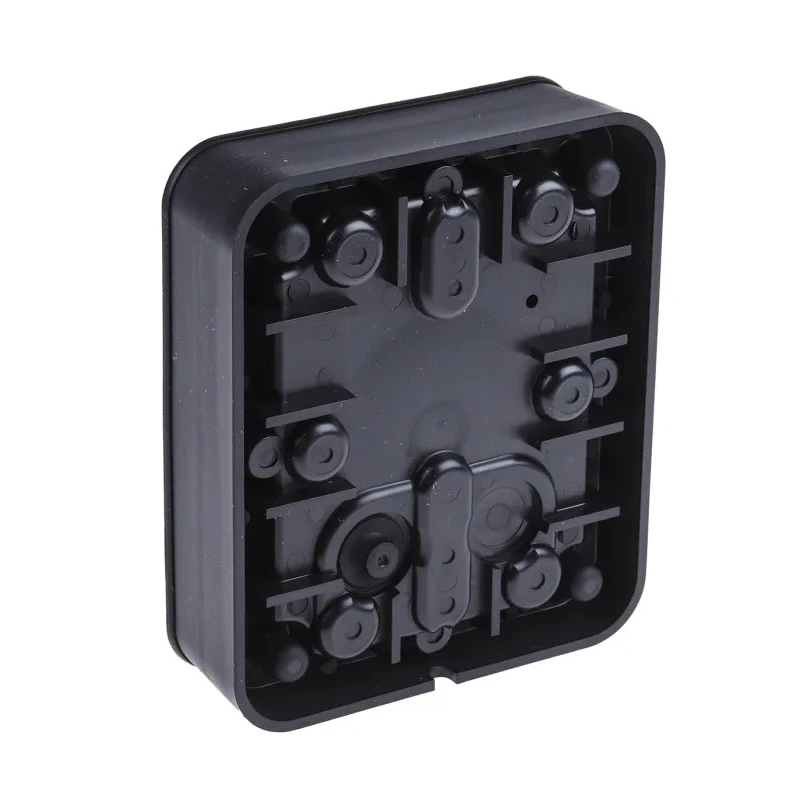

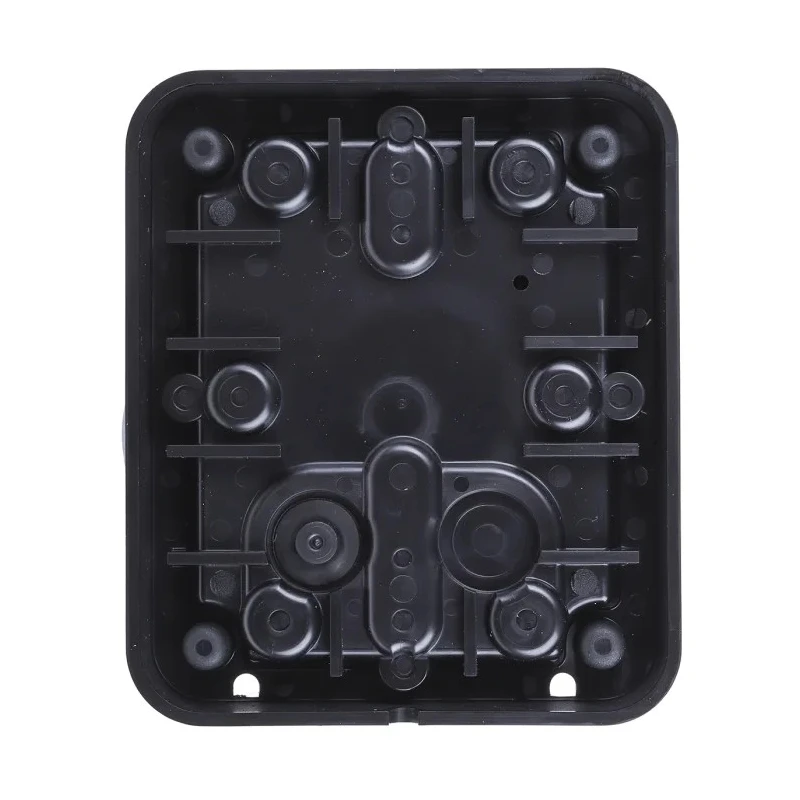

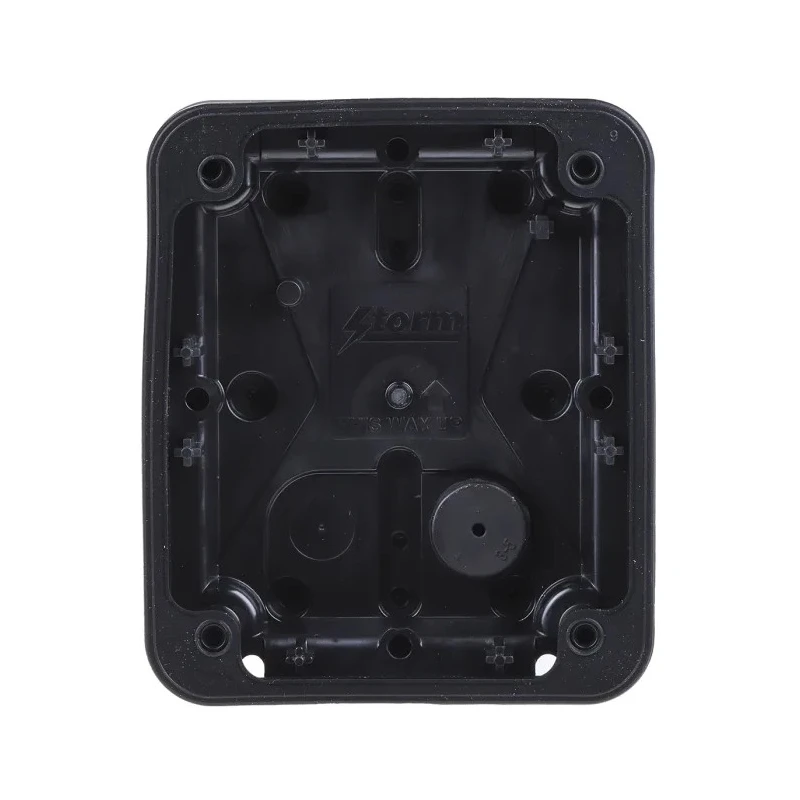

Storm Keypad Back Box for Use With 1000 Series and 1000 PLX Series RC120202

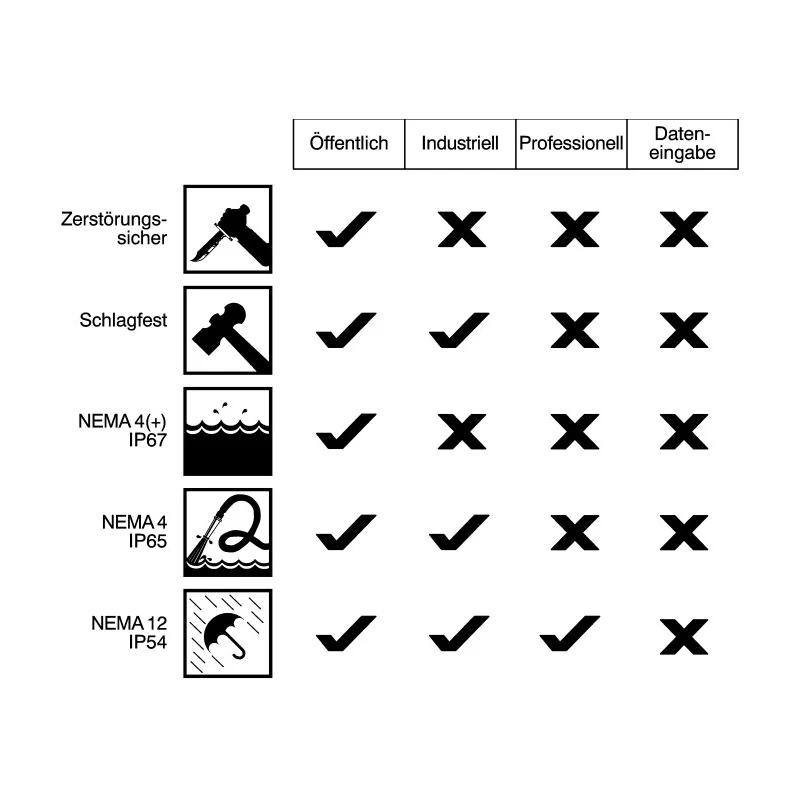

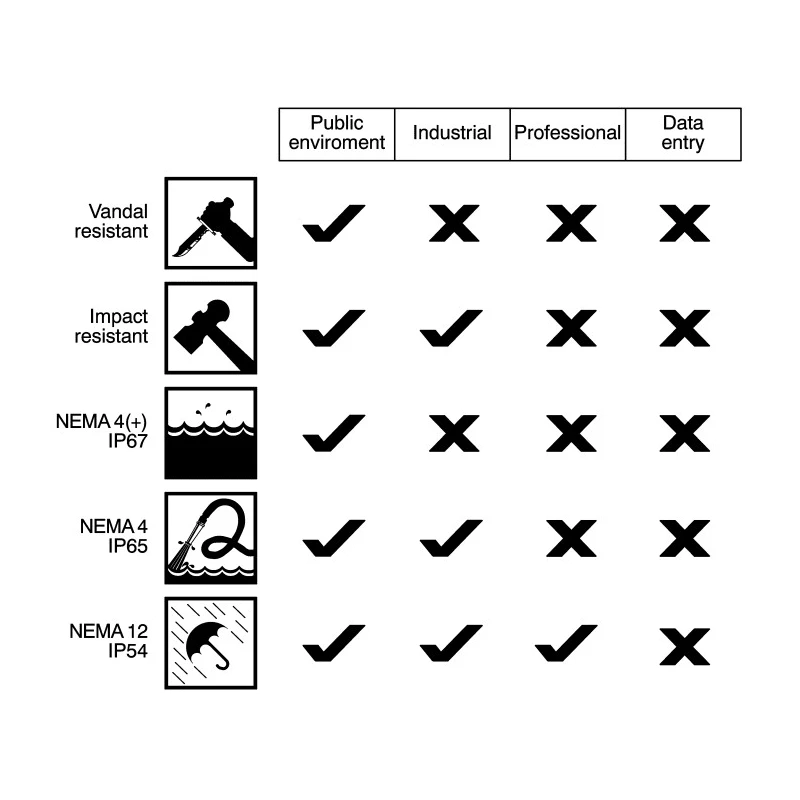

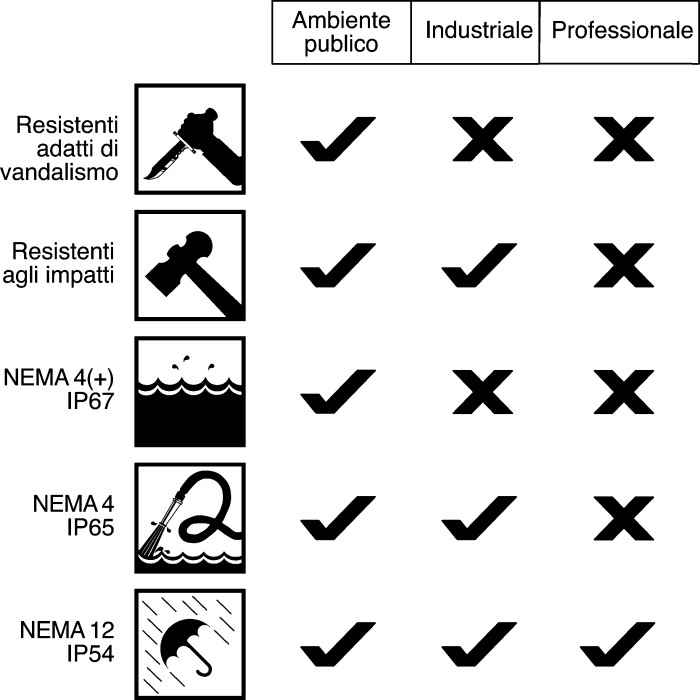

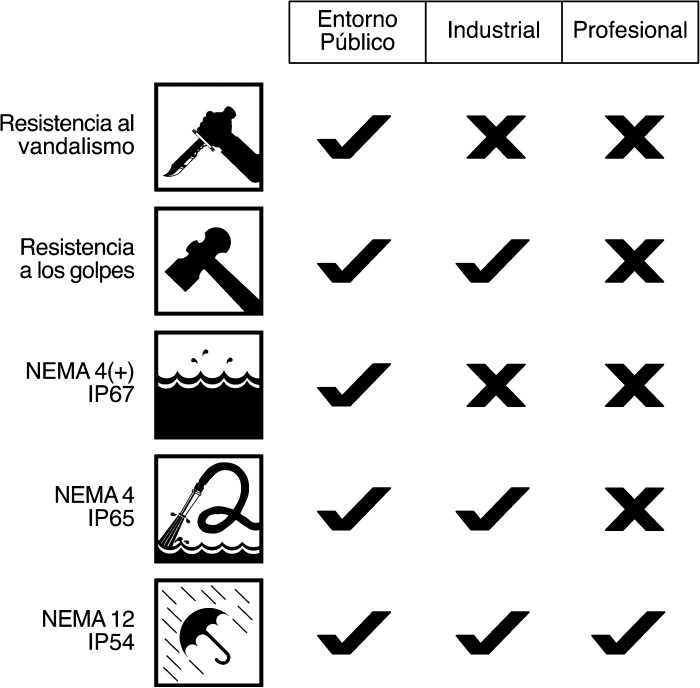

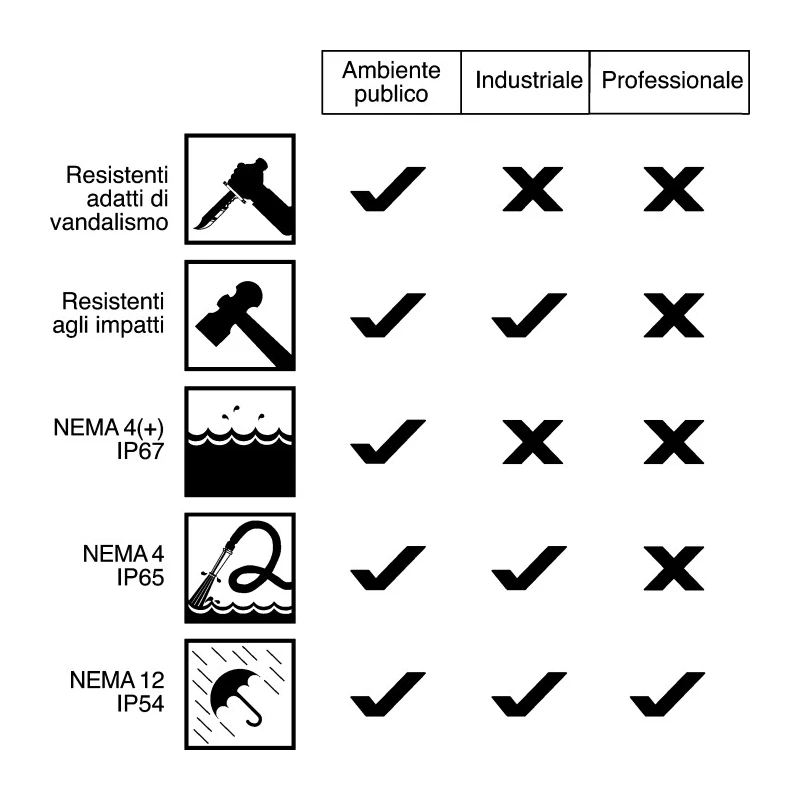

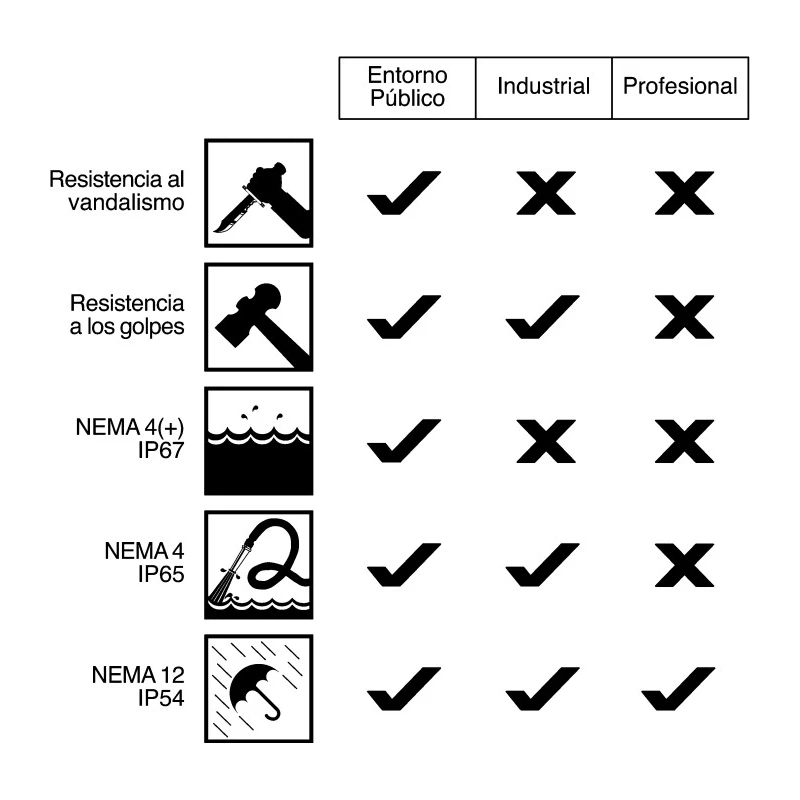

Storm RC120202 keypad back box is engineered for robust performance in public and outdoor environments, supporting the 1000 Series and 1000 PLX Series keypads. The product features a vandal resistant design with a metal casing and chromed zinc keytops that withstand harsh conditions. It is fully sealed to an IP65 rating, making it suitable for exposed outdoor installations requiring protection against dust and water ingress.

The engraved keytop characters offer excellent legibility, while the gold on nickel plated FR4 contact PCB ensures high reliability and long service life. Available in multiple key formats including 4, 12, and 16 keys, this back box covers a wide range of application requirements.

Electrical safety is assured with a contact rating of 50mA at 24Vdc, contact resistance of 100Ω, dielectric strength of 500Vac, and insulation resistance of 50MΩ. The keypad assembly has an operational life exceeding 4 million cycles per key, withstanding temperatures ranging from -40°C in dry conditions up to +100°C.

Additional features include a back box and a privacy shroud option. The operating force for key actuation is approximately 180g, combined with a 5ms contact bounce to deliver responsive and reliable performance.

This product is manufactured in the United Kingdom and complies with RoHS standards, ensuring environmental and safety compliance. Ideal for industrial, commercial, and public sector use, especially in settings requiring durable, weather-proof keypad solutions for secure access or control panels.

Explore the complete range of high-quality keypad fittings and electrical enclosures at EnvMart for your industrial automation and access control needs. Vandal resistant with robust metal casing and chromed zinc keytops.

Fully sealed to IP65 for exposed outdoor applications. Engraved keytop characters for clarity. Gold on nickel plated FR4 contact PCB for durability. Available in 4, 12, and 16 key formats. Contact rating: 50mA @ 24Vdc. Contact resistance: 100Ω.

Dielectric strength: 500Vac. Insulation resistance: 50MΩ. Operational life exceeds 4 million cycles per key. Operates from -40°C to +100°C (dry). Back Box and privacy shroud available. Operating force approximately 180g; contact bounce 5ms.
