Tempo Single Mode Optical Light Source 1310/1550/1650nm Wavelengths with FP Emitter SLS536

Free Delivery in India | Lowest Global Shipping Charges

Tempo Single Mode Optical Light Source 1310/1550/1650nm Wavelengths with FP Emitter SLS536

Name: Tempo Single Mode Optical Light Source 1310/1550/1650nm Wavelengths with FP Emitter SLS536
Brand: Tempo
SKU: 169063
Price: 4563.1 USD
Availability: InStock



Category Network Test & Measurement Brand Tempo Condition New

Specifications

Country of Origin	China
Resolution	0.01 dB
Brand	Tempo
Battery Life	100h
Battery type	9V Alkaline, Lithium
Height	6.1in
Length	155mm
Model	SLS536
Gross Weight	300g
Width	3.5mm
Maximum Operating Temperature	50°C
Equipment Type	Optical Light Source
Cable Type	Single Mode
Minimum Operating Temperature	-10°C
Standards/Approvals	FCC, 21 CFR 1040.10 (Laser), CE

Key Features

The light source features an LCD display for clear status monitoring.
Battery type includes 9V alkaline or lithium with 100 hours battery life.
Operates reliably between -10°C to 50°C temperature range.
Compact design with dimensions of 155mm length, 6.1 inches height, and 3.5mm width.
Weighs approximately 300 grams for portability.
Compliant with FCC, CE, and 21 CFR 1040.10 laser safety standards.
Supports 270Hz, 1kHz, and 2kHz tone frequencies for testing versatility.

Product Description

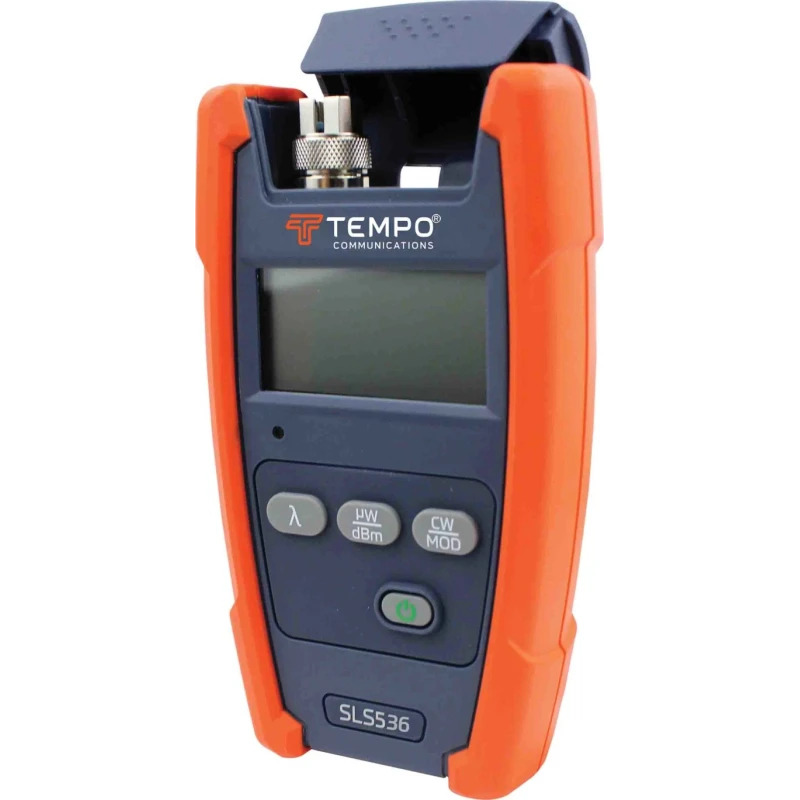

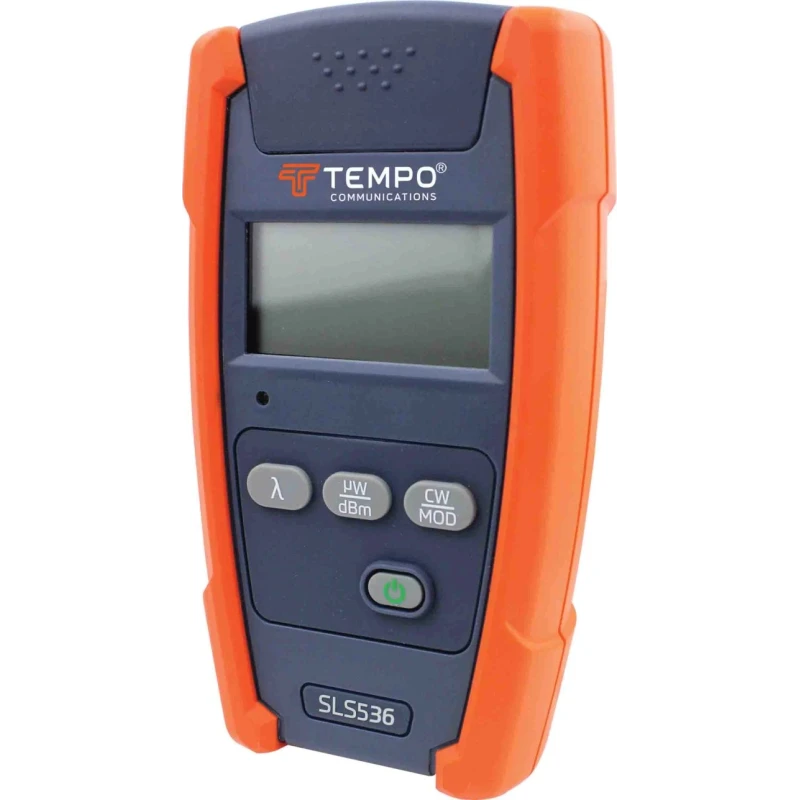

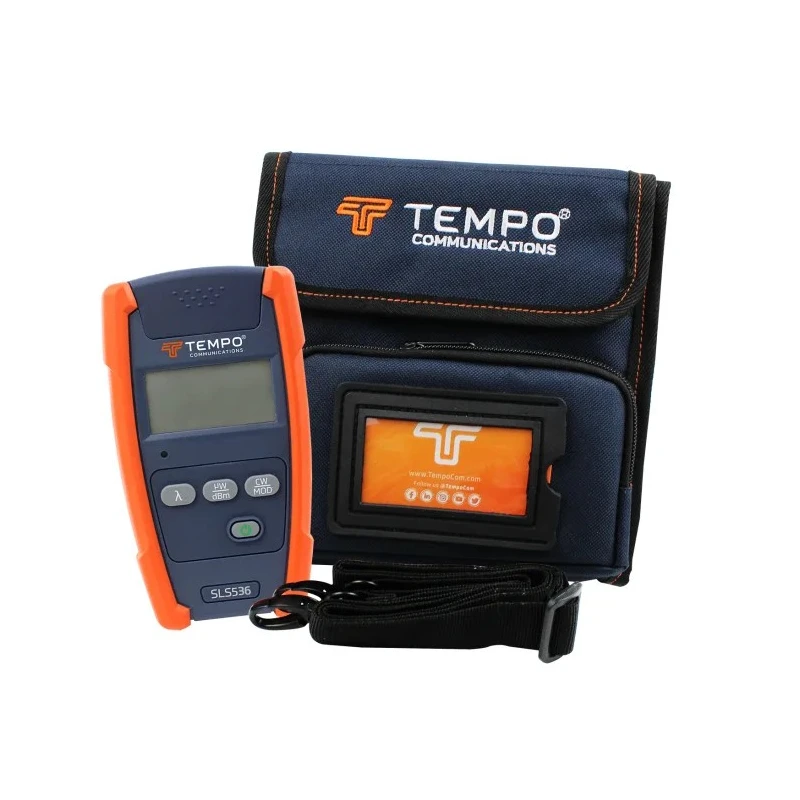

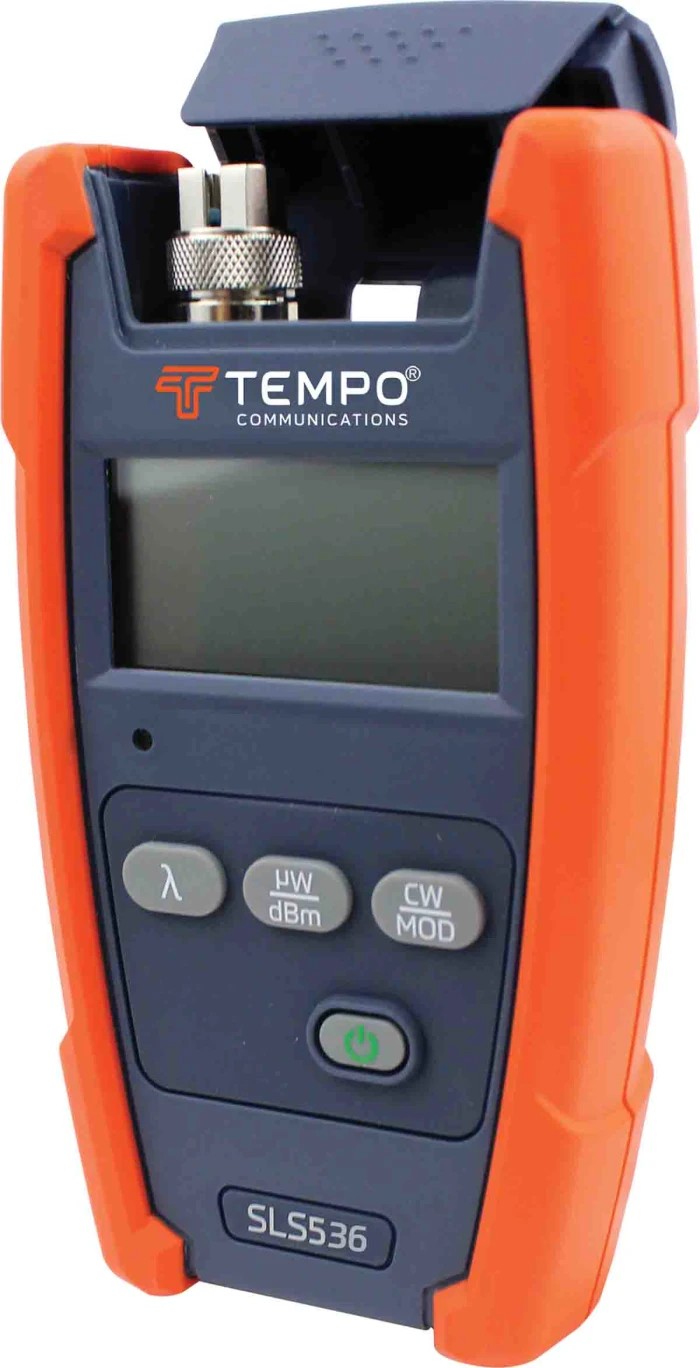

Tempo SLS536 Single Mode Optical Light Source is a fibre optic stabilised laser source that operates at 1310 nm, 1550 nm, and 1650 nm wavelengths, designed specifically for precise network test and measurement applications.

This device utilizes a Fabry-Perot (FP) type emitter and features a clear LCD display, ensuring easy operation and monitoring. It supports dual and triple laser functions, making it versatile for various single-mode fibre optic testing needs.

Powered by a 9V alkaline or lithium battery, it delivers up to 100 hours of continuous operation, ideal for field use. The compact design measures 155 mm in length, 6.1 inches in height, and 3.5 mm in width, with a lightweight build of 300 grams that enhances portability.

The light source complies with global standards and regulations including FCC, CE, and 21 CFR 1040.10 for laser safety, ensuring reliable and safe operation. It offers an operating temperature range from -10°C to 50°C, suitable for diverse environmental conditions.

Featuring a PC flat polish interface and an IP54 degree of protection, the SLS536 is built for durability and ease of connection. It supports tone generation at frequencies of 270Hz, 1kHz, and 2kHz to facilitate fault location and fibre identification in complex fibre optic networks.

The device features FP emitter technology providing stable and accurate light output. Battery life extends up to 100 hours using 9V alkaline or lithium batteries. Compact and lightweight design allows ease of field deployment.

Certified with FCC, CE, and laser safety approvals for compliance. Supports multiple laser wavelengths at 1310nm, 1550nm, and 1650nm for comprehensive testing. IP54 rated enclosure provides dust and splash resistance. Includes tone generation for fibre tracing with 270Hz, 1kHz, and 2kHz options.

This single mode optical light source is ideal for industrial, laboratory, telecommunication, and network maintenance applications, aiding in precise power measurements and fault analysis on fibre optic lines.
