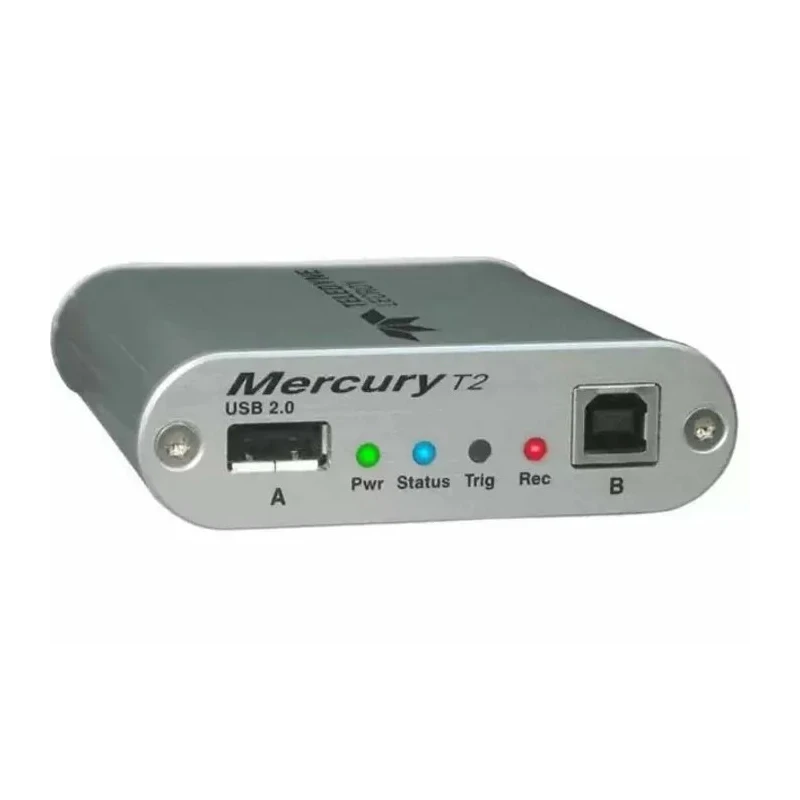

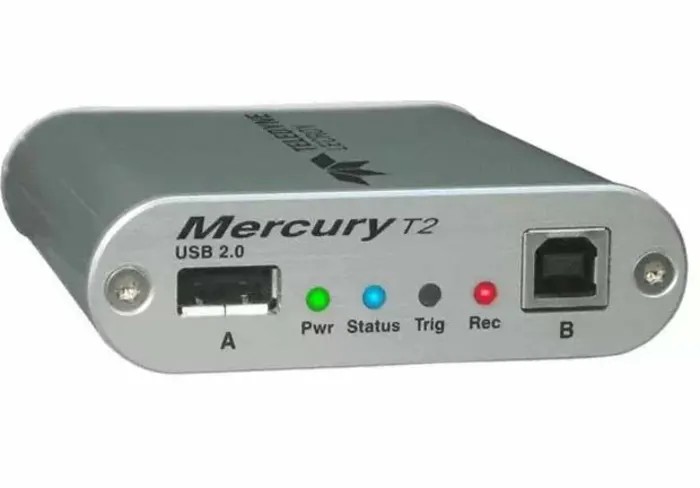

Teledyne LeCroy Protocol Analyser USB 2.0 USB-TMS2-M01-X

Free Delivery in India | Lowest Global Shipping Charges

Teledyne LeCroy Protocol Analyser USB 2.0 USB-TMS2-M01-X

Name: Teledyne LeCroy Protocol Analyser USB 2.0 USB-TMS2-M01-X
Brand: Teledyne LeCroy
SKU: 211023
Price: 2121.95 USD
Availability: InStock



Category Network Test & Measurement Brand Teledyne LeCroy Condition New

Specifications

Country of Origin	United States
Brand	Teledyne LeCroy
Height	90mm
Length	24mm
Model	USB-TMS2-M01-X
Width	80mm
Maximum Operating Temperature	55°C
Minimum Operating Temperature	0°C
Interfaces	USB 2
Connectors	USB 2.0
Memory size	512MB
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Supported Protocols	USB 2.0
Standard Trigger Events	Splits, Bus Conditions, Data Length, Data Pattern, Device Request, Errors, Frame Pattern, Packet Identifier, PD Messages, Token Pattern, Transactions, Type C logical states

Key Features

Supports USB 2.0 connectivity for broad compatibility.
Features 512MB memory for extensive data capture.
Advanced triggering isolates specific traffic, errors, or data patterns.
Standard trigger events include packet identifier, token pattern, and frame pattern.
Includes hardware filtering to focus on crucial data.
Records up to 256MB for detailed analysis.
Compact dimensions of 24mm length, 80mm width, and 90mm height.
Operates reliably between 0°C and 55°C.

Product Description

Teledyne LeCroy USB-TMS2-M01-X Protocol Analyser USB 2.0 is a small, bus-powered device that delivers lab-quality USB protocol analysis features in a compact form factor. This hardware-based analyser combines the standard CATC Trace display with powerful analysis capabilities controlled via any Windows PC.

It supports USB 2.0 interface and includes 512MB memory for capturing and analyzing high volumes of data traffic.

The device offers advanced triggering features that allow isolation of important USB bus traffic, specific errors, or data patterns such as splits, bus conditions, and data length.

Standard trigger events cover a wide range including packet identifier, token pattern, frame pattern, device requests, and PD messages, enhancing detailed USB 2.0 protocol debugging.

Extensive protocol decoding supports mass storage, Bluetooth HCI, hubs, PTP/still image, printer, HID, and audio devices. This analyser's compact size (24mm x 80mm x 90mm) and operation temperature range (0°C to 55°C) make it suitable for various environments.

Applications include SCADA engineering, industrial automation, network engineering, service and maintenance, and field services requiring precise USB protocol analysis. Supports USB 2.0 connectivity. 512MB memory for data capture.

Advanced triggering isolates crucial data and errors. Wide range of standard trigger events. Hardware filtering for event reporting. Compact, portable design. Operating temperature from 0°C to 55°C. Extensive protocol decoding capabilities.

Ideal for industrial and network service applications. Country of origin: United States. Explore more protocol analysers and USB test equipment on EnvMart for advanced network test and measurement solutions.
