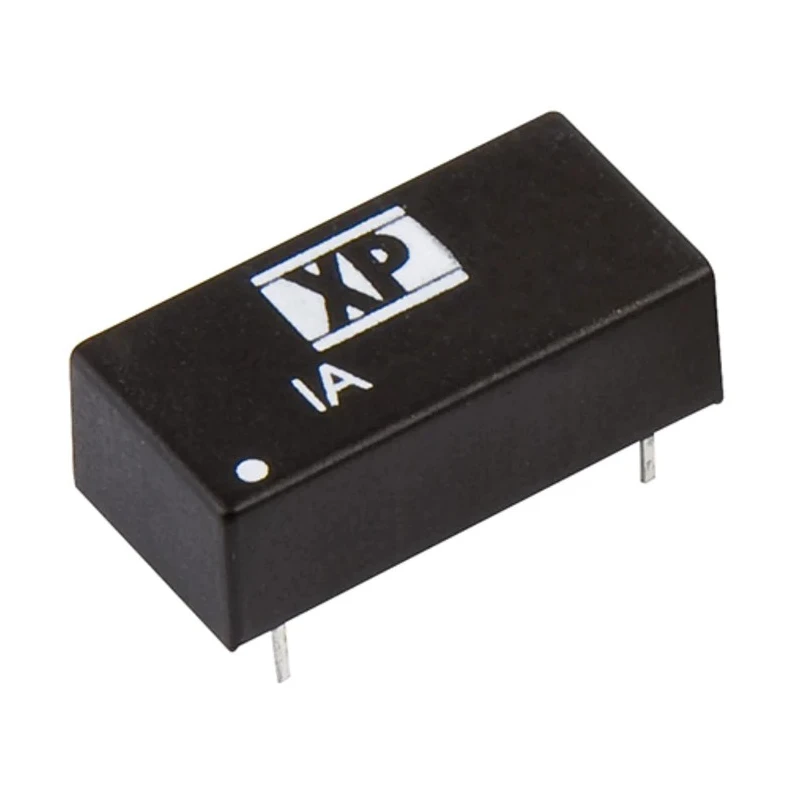

XP Power 1 W Isolated Dual Output DC-DC Converter 24 V Input, -3.3 V/3.3 V Output IA2403D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | XP Power |
| Efficiency | 68% |
| Length | 20.32mm |
| Model | IA2403D |
| Depth | 6.35mm |
| Width | 10.16mm |
| Mount Type | Through Hole |
| Series | IA |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 2 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 24V dc |
| Minimum Input Voltage | 0V |
| Number of Pins | 4 |
| Output Voltage 1 | -3.3, 3.3V |
| Output Current 1 | 151mA |
| Output Voltage Adjustment Range | 0/5 V |
| Isolation Voltage | 1kV dc |
Key Features
- This converter provides dual outputs of -3.3 V and 3.3 V with 151 mA current capacity.
- It supports a wide input voltage range from 0 V up to a maximum of 24 V DC.
- The device features a Through Hole DIP package with a standard pinout of 4 pins for easy integration.
- Designed for industrial and electronic applications, it operates efficiently with up to 68% efficiency.
- It has a robust isolation voltage rating of 1 kV DC ensuring safe and reliable signal separation.
- The unit supports a wide operating temperature range from -40 °C to +85 °C.
- The mean time between failures (MTBF) is rated at 1,100,000 hours, highlighting its durability.
- Compact dimensions include a length of 20.32 mm, width of 10.16 mm, and depth of 6.35 mm.
Product Description
XP Power IA2403D is a new, high-quality isolated dual output DC-DC converter delivering 1 W output power with dual voltages of -3.3 V and 3.3 V. It is designed for use in electronic components, power supply systems, and industrial applications that require reliable and compact power conversion.
This DIP Through Hole converter supports a wide input voltage range from 0 V minimum to 24 V maximum DC input, making it versatile for different power sources. Its standard 4-pin configuration and compact package dimensions (20.32 mm length, 10.16 mm width, 6.35 mm depth) allow easy PCB mounting and integration into various circuits.
The IA2403D ensures electrical safety and signal isolation with a 1 kV DC isolation voltage, providing protection against voltage spikes and interference. Its efficiency reaches up to 68%, optimizing power consumption for industrial and commercial environments.
Designed for harsh environments, it operates reliably over a wide temperature range from -40 °C to 85 °C. The device’s MTBF of 1,100,000 hours further confirms its long operational life and durability in continuous use.
Dual output voltages of -3.3 V and 3.3 V at 151 mA output current. Wide input voltage range from 0 V to 24 V DC. Through Hole DIP package with 4 pins for easy mounting. High isolation voltage of 1 kV DC for safety. Compact size with industry-standard pinout.
Robust operating temperature range from -40 °C to +85 °C. MTBF of 1,100,000 hours ensuring long life. Efficient operation with 68% efficiency. Manufactured in Taiwan, Province Of China.
This DC-DC converter is ideal for industrial automation, power management systems, communication devices, and laboratory equipment where stable dual voltage outputs and isolation are required. XP Power products are known for quality compliance and reliability in demanding power supply roles.
Explore more DC/DC Converters and power supply solutions at EnvMart to find components suitable for your industrial and electronic design needs.
