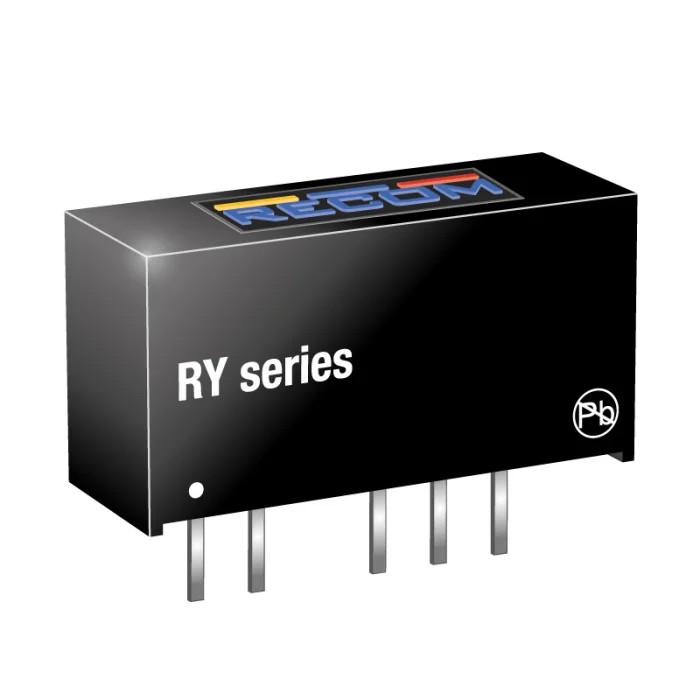

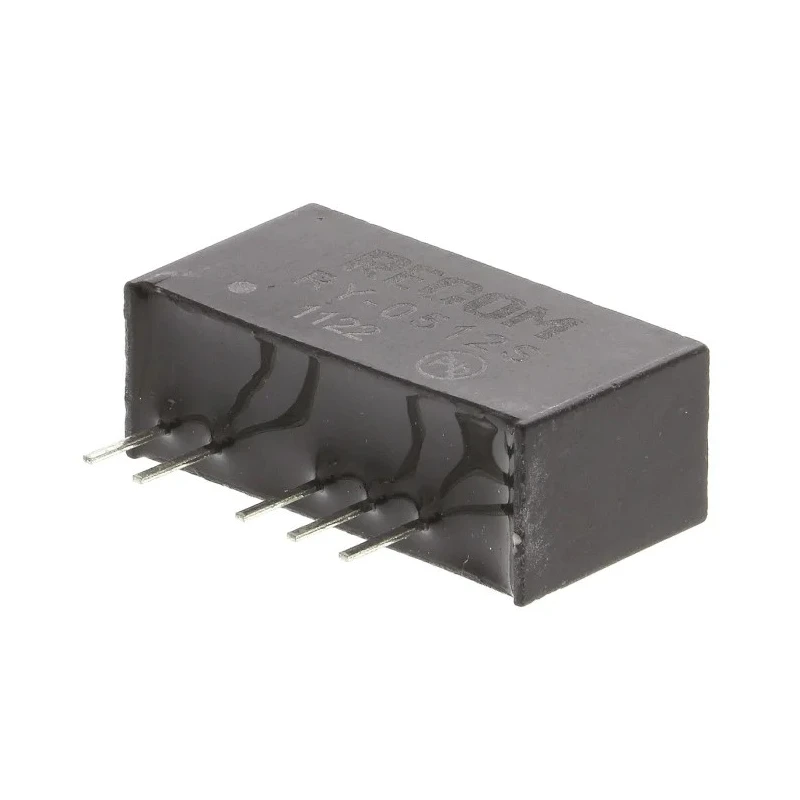

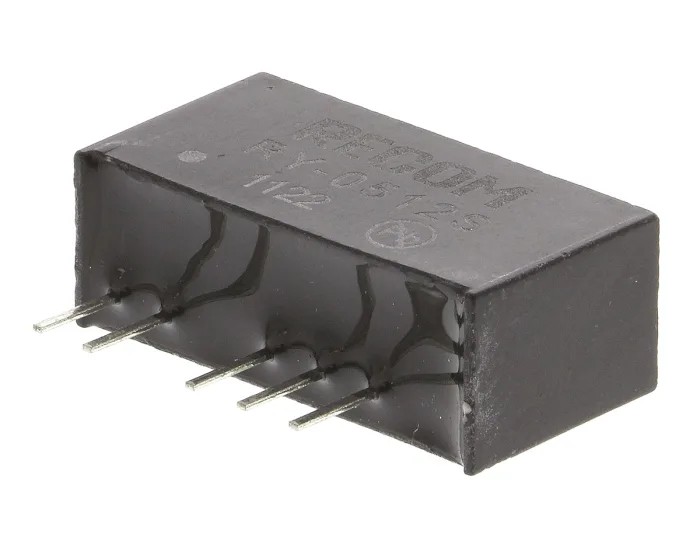

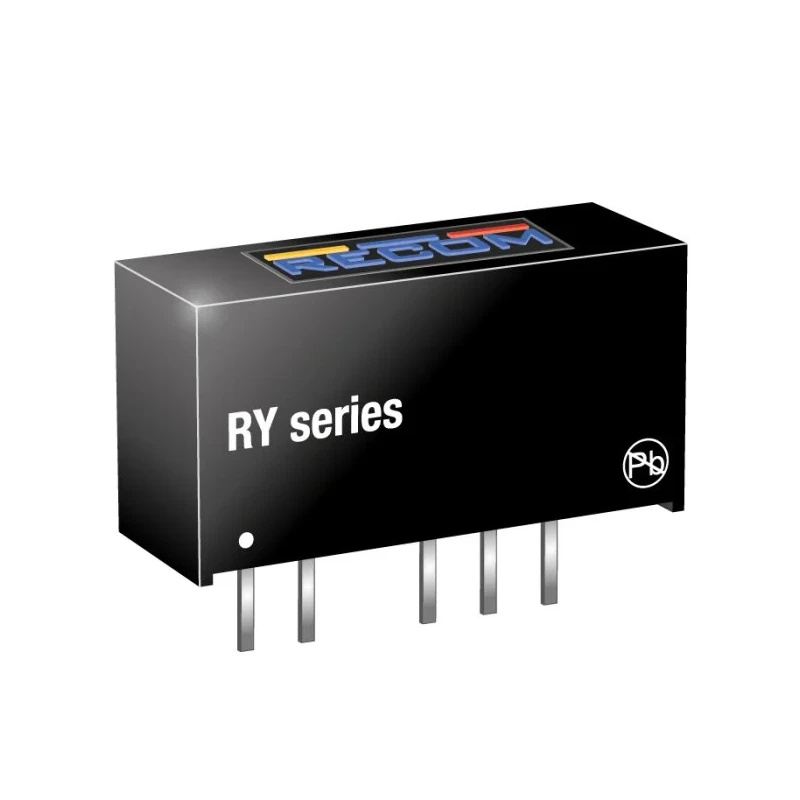

Recom DC/DC Converter through-hole SIP package 1 W power 12 V dc output 84 mA current RY-0512S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RY DC/DC Converter, 12V dc/ 84 mA, 5V dc Inp |
| Brand | Recom |
| Efficiency | 66% |
| Length | 19.65mm |
| Model | RY-0512S |
| Depth | 10.2mm |
| Gross Weight | 2.8g |
| Width | 7.05mm |
| Mount Type | Through Hole |
| Series | RY |
| Maximum Operating Temperature | 70°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 135000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 5V dc |
| Standards/Approvals | EN 60950-1 |
| Minimum Input Voltage | 4.75V dc |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 84mA |
| Output Voltage Adjustment Range | 5/24 V |
| Isolation Voltage | 1kV dc |
Key Features
- Operates with input voltage range from 4.75 V dc to 5 V dc.
- Maintains constant voltage output with ±1% load regulation.
- Designed for maximum ambient temperatures up to 70°C and minimum down to -40°C.
- Provides 1 kV dc isolation for enhanced safety in circuits.

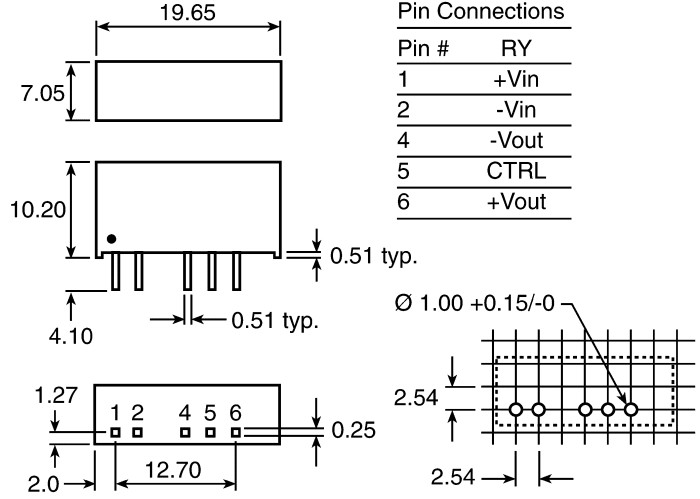

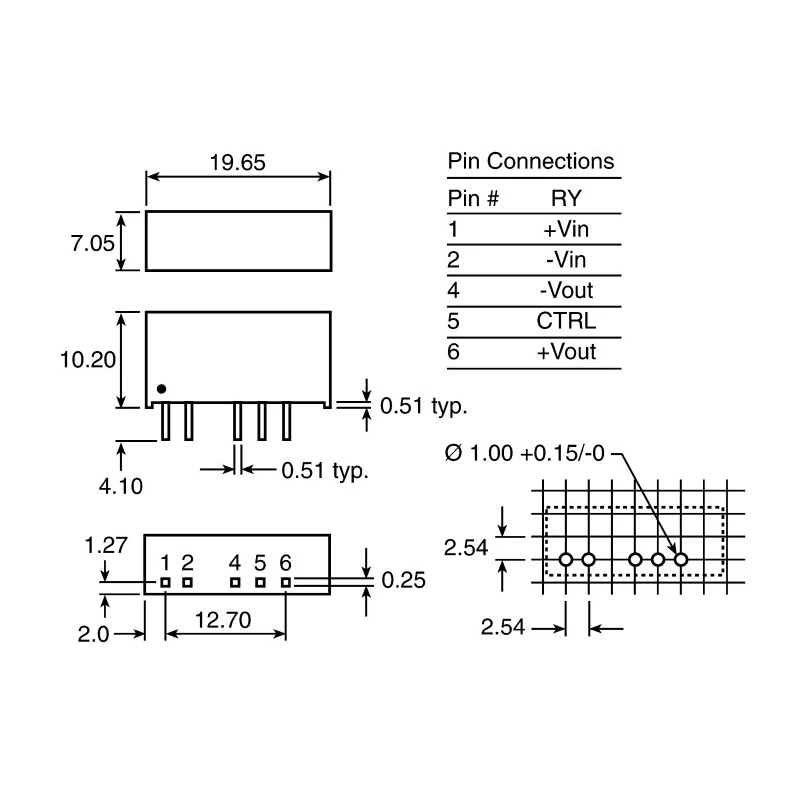

- Compact dimensions of 19.65 mm length, 7.05 mm width, and 10.2 mm depth.
- Encapsulated design protects against environmental contamination.
- Features 66% efficiency ideal for low power applications.
- Includes a control pin for remote on/off operation.
Product Description
Recom RY-0512S DC/DC Converter is a reliable and efficient power supply solution providing a 12 V dc output voltage at 84 mA maximum output current with 1 W power rating. This converter accepts a 4.75 V dc to 5 V dc input voltage range and delivers stable, constant voltage output with a tight load regulation of ±1%. Its fully encapsulated SIP (Single In-line Package) design offers protection against environmental contaminants and enables hassle-free through-hole mounting on PCBs.
The device is rated for operation in demanding temperature conditions between -40°C and 70°C, making it suitable for various industrial and automotive environments. It also features 1 kV dc isolation voltage to ensure safety of personnel and equipment by providing galvanic isolation between input and output.
With compact physical dimensions (19.65 mm length × 7.05 mm width × 10.2 mm depth) and a weight of only 2.8 g, this converter is ideal for space-constrained printed circuit board designs. The unit operates at an efficiency of approximately 66%, optimizing power usage for low-power applications. Additionally, it includes a remote control pin which enables enabling or disabling the converter remotely, adding flexibility in complex system architectures.
This DC/DC converter adheres to the EN 60950-1 safety standard, ensuring compliance with international safety requirements. Its typical applications include automotive manufacturing systems, industrial automation equipment, and LED lighting systems where compact, efficient, isolated voltage conversion is required.
The Recom RY-0512S is manufactured in Taiwan, Province Of China, reflecting stringent quality controls and reliability. Its robust design and performance make it a suitable choice for electronics professionals seeking dependable power conversion components.
Operates from 4.75 V dc to 5 V dc input voltage. Provides isolated 12 V dc output at 84 mA current. Encapsulated SIP through-hole package for durable mounting. Wide temperature operation range suitable for industrial use.
High efficiency of 66% supports energy saving. Remote control pin enables on/off switching. Conforms to EN 60950-1 safety standard. Compact size fits in small PCB footprint. Explore EnvMart’s Electronics & Electricals > Power Supply & Distribution > DC/DC Converter category to find compatible components and accessories for your application needs.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range from 4.75 V dc to 5 V dc.
The RY-0512S provides a maximum output power of 1 W.
It delivers a 12 V dc output voltage with a maximum output current of 84 mA.
The compact dimensions are 19.65 mm in length, 7.05 mm in width, and 10.2 mm in depth.
It has an efficiency rating of approximately 66%.
The RY-0512S operates in a temperature range from -40°C to 70°C.
This unit features a through-hole mounting design.
It provides an isolation voltage of 1 kV dc for enhanced safety.
This model conforms to the EN 60950-1 safety standard.
Yes, it includes a control pin for remote on/off operation.
The weight of this model is 2.8 g.
It is suitable for automotive manufacturing systems, industrial automation equipment, and LED lighting systems.
