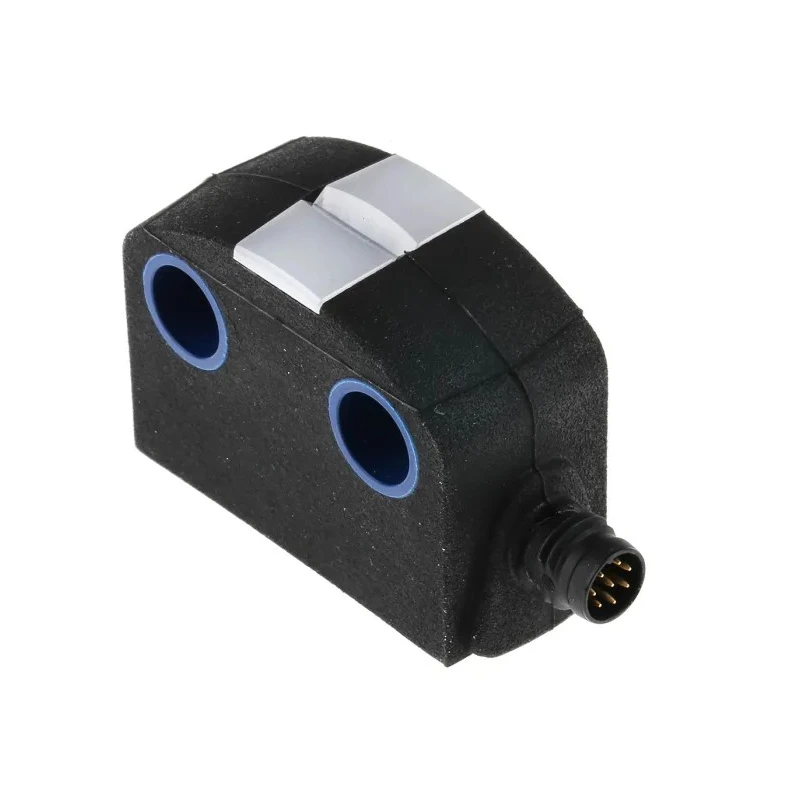

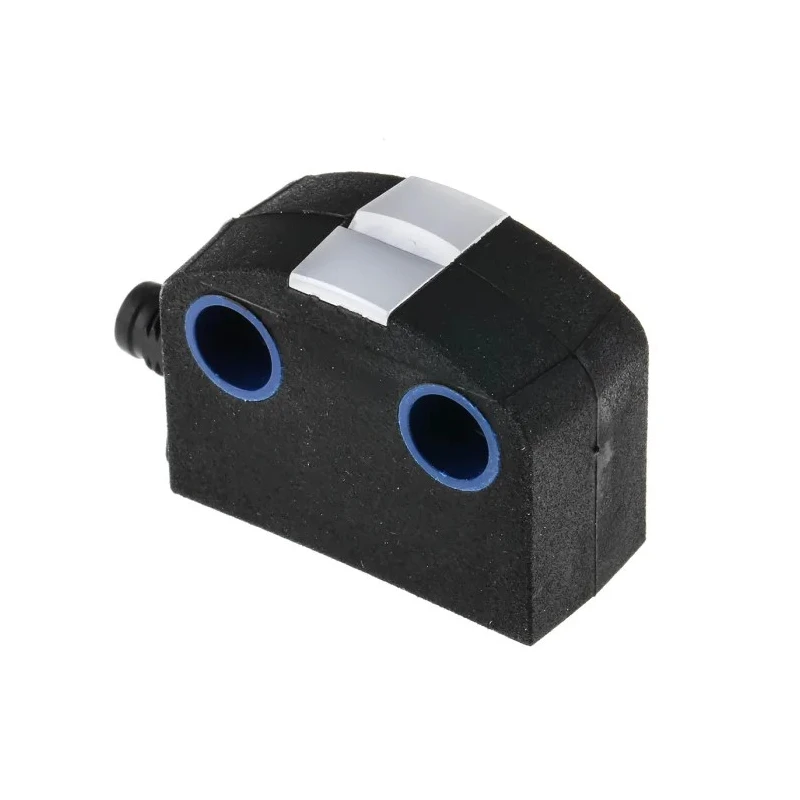

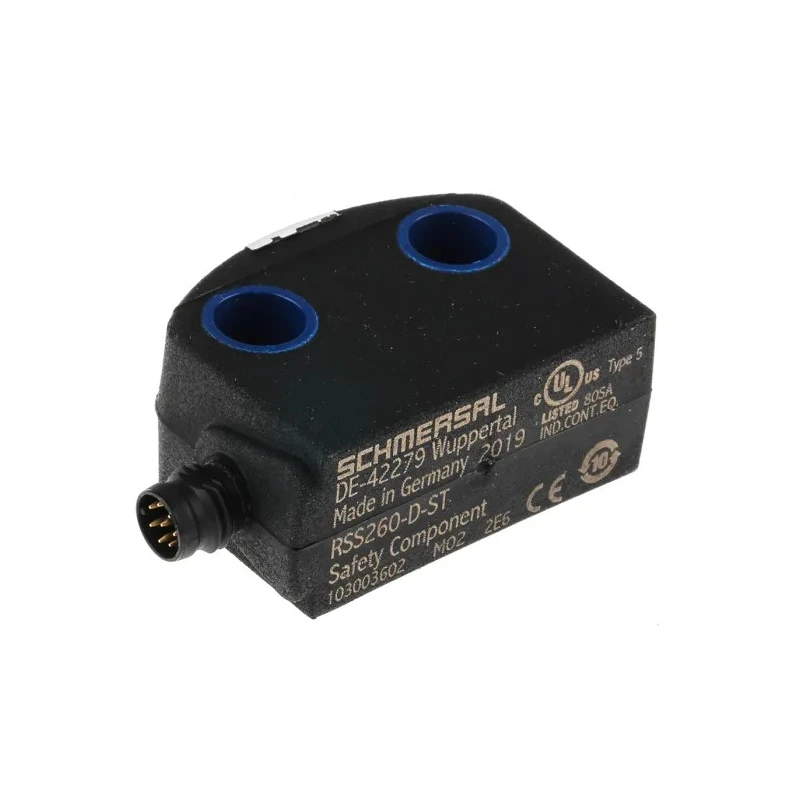

Schmersal RFID Non-Contact Safety Switch, Plastic Housing, 26.4V DC, P-Type, M8 Connection, 600mA - RSS260-D-ST

Schmersal RSS260-D-ST RFID Non-Contact Safety Switch combines robust safety functionality with advanced RFID technology to prevent unauthorized tampering in industrial environments. Featuring a durable thermoplastic housing rated IP67 and IP65 for protection against dust and water immersion, this switch is designed for dependable use in harsh conditions. Operating at 26.4V DC with a switching current of 600mA, the device utilizes a coded actuator and RFID sensor principle to enhance workplace safety by monitoring swivel door status and triggering alarms on unauthorized access.

The switch is compact with dimensions of 39.2mm length, 29.5mm width, and 18mm depth, making installation versatile in limited spaces. It supports connection via an M8 type terminal and allows linking of up to 31 sensors in series for simplified diagnostics and configuration through programmable logic controllers (PLC). Compliance with multiple industry standards such as cULus Listed, EN ISO 13849-1, IEC 60947-5-3, CE, and TUV certifies its suitability for rigorous safety control applications.

Wide switching distances ranging laterally and frontally assure reliable sensing. Three LED indicators provide immediate visual feedback on supply voltage (green), error status (red), and sensing activity (yellow), facilitating efficient monitoring and maintenance. Its chemical resistance and rugged housing color-coded black contribute to sustained performance in aggressive industrial environments.

This switch is ideal for industrial safety interlock solutions at hazardous area entrances, chemical plants, and machinery requiring secure access control. Its advanced RFID technology prevents manipulation, thereby improving safety reliability and workflow protection.

Equipped with coded actuator and RFID sensor principle for tamper resistance. Switching current rating of 600mA ensures dependable operation. IP67 and IP65 rated housing provides dust and water ingress protection. Complies with international standards including cULus, EN ISO 13849-1, IEC 60947-5-3, and CE.

Suitable for hazardous area access points and chemical processing plant applications. Compact dimensions with 39.2mm length, 29.5mm width, and 18mm depth. Includes three LED status indicators for supply voltage, errors, and sensing status.

Supports serial connection of up to 31 sensors for enhanced diagnostic capabilities via PLC. Browse the Electronics & Electricals category for Safety Switches and Schmersal brand products at EnvMart for similar high-quality industrial safety components.
