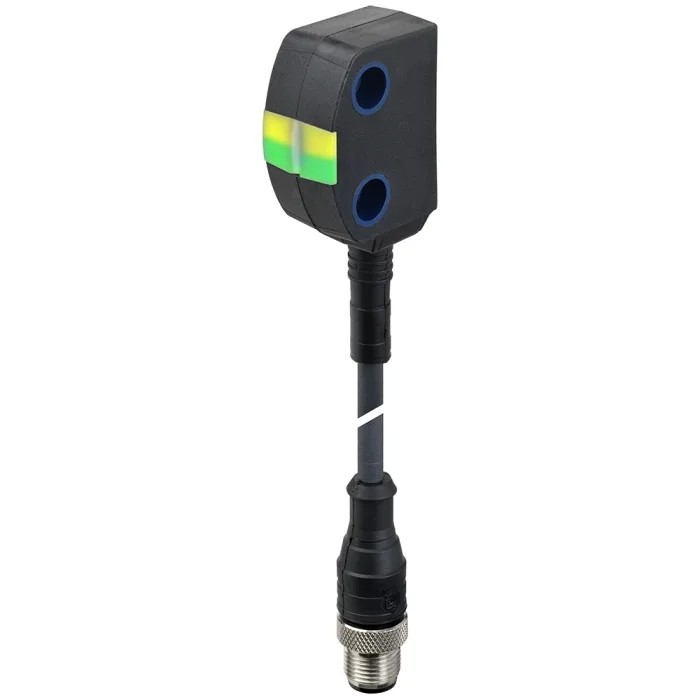

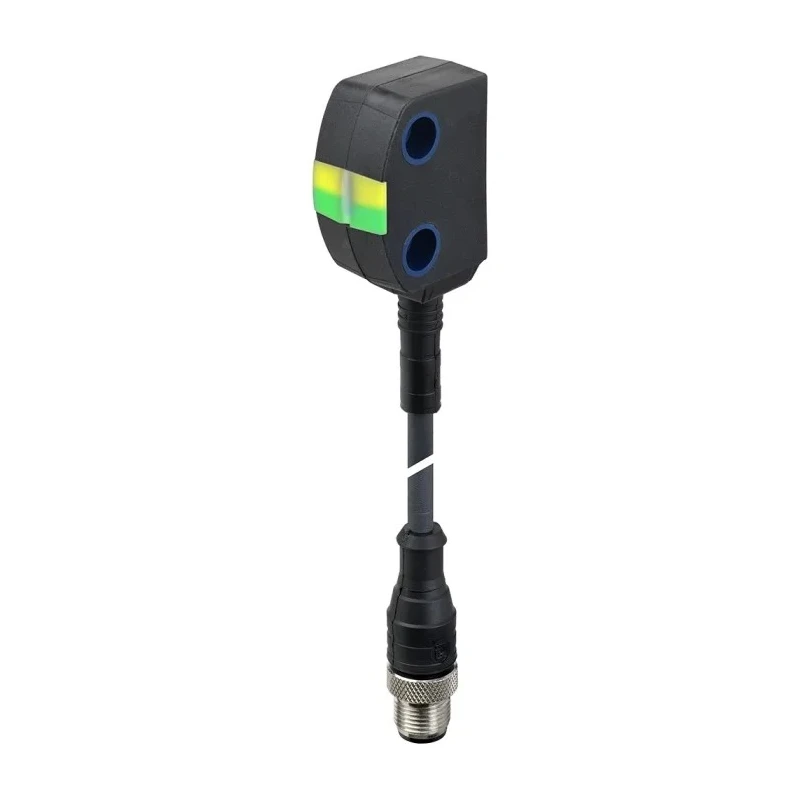

Omron Non-Contact Safety Switch with PBT Housing, 24V DC, 0.25A Switching Current, 12 mm Switching Distance D41D-2CD-025N2

Omron D41D-2CD-025N2 is a Non-Contact Safety Switch featuring a robust PBT (polybutylene terephthalate) housing designed for industrial environments. It operates at 24V DC with a switching current of 0.25A and includes two safety contacts that provide dual-channel machine interlock functionality.

This switch offers a 12 mm switching distance utilizing a magnetic actuator, allowing reliable detection without physical contact. Its compact rectangular body (37 mm length, 15 mm width, and 29.5 mm depth) and M12 connection type enable easy and standardised field wiring installations.

The PBT housing is rated IP67 and IP69, ensuring resistance to dust, water ingress, and washdown, making it suitable for demanding industrial conditions. Certified to Safety Category 4 with Performance Level e, it meets stringent safety requirements for high-risk applications.

Omron’s D41D series is ideal for monitoring guarded access points such as industrial machine doors or guards, supporting cascading of multiple switches in series for comprehensive line-wide safety. It is particularly suited for packaging machinery, production line perimeter guard monitoring, and confined machine interiors where compact, tamper-resistant safety is necessary.

Additional diagnostic LEDs provide indication of power, actuator presence, and fault conditions, while auxiliary outputs enable central status monitoring. The unit functions in temperature ranges from -25 to 65 °C and is tested against shock and vibration standards, but it is not designed for use beyond 2000m altitude or continuous water immersion.

The switch supports high-coded actuator pairing against tampering with irreversible individual coding or tamper-inhibited re-teaching options. Three-colour LEDs indicate operational status and diagnostic alerts for maintenance ease.

Non-critical faults initiate delayed safety outputs shutdown, allowing controlled stop procedures. Designed with international safety approvals including CSA, EN, IEC, CE, and UL standards for assured quality and compliance.

This product is made in Germany and represents the forefront of safety technology for industrial automation systems. Its rugged design and compliance credentials make it indispensable for factory automation, manufacturing, and process safety applications.
