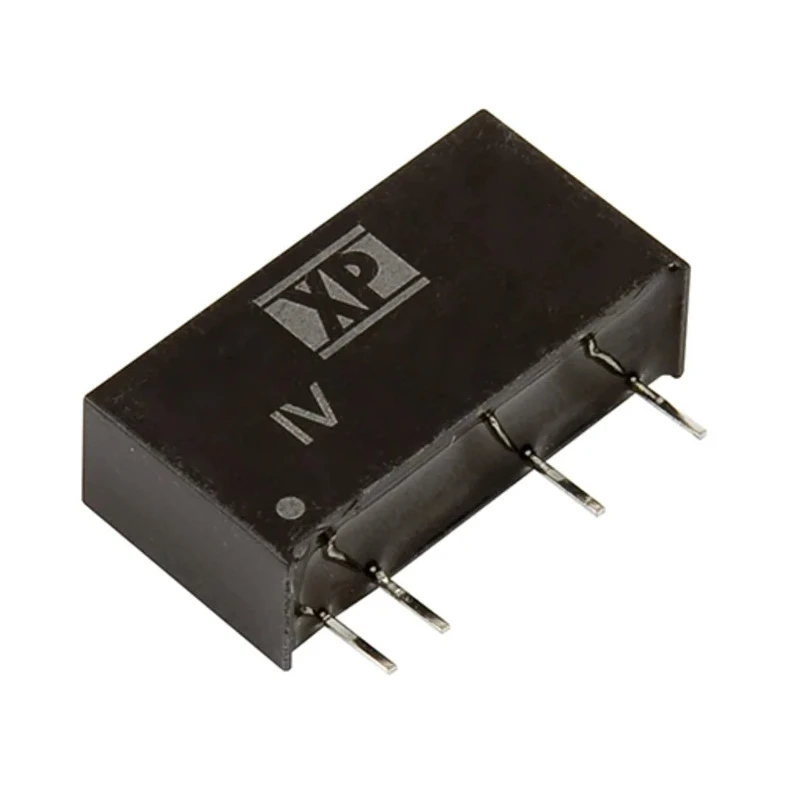

XP Power 1 W Isolated DC-DC Converter, 24V DC Output, 10 mA, 24V DC Input, Through Hole SIP Package IV2424SA

XP Power IV2424SA is a compact 1 W isolated DC-DC converter designed to provide a stable 24 V DC output with a maximum output current of 10 mA. It operates with a DC input voltage up to 24 V, including 0 V minimum input, allowing flexible integration in electronic power systems. This module features a small SIP package and through hole mounting, simplifying assembly on printed circuit boards.

The device offers electrical isolation with a voltage rating of 3 kV DC, which enhances safety in industrial and commercial voltage conversion tasks. It supports output voltage adjustment from 0 to 48 V, allowing users to fine-tune power delivery as needed.

With a high MTBF of 1,100,000 hours, the IV2424SA ensures robust and reliable operation over extended periods, suitable for demanding environments. Its operating temperature range spans from -40 °C to +85 °C, enabling use in harsh conditions and wide temperature variances.

The converter's dimensions - 19.5 mm by 9.5 mm by 6 mm - make it well-suited for applications requiring space-efficient power solutions. It complies with RoHS standards, confirming environmentally safe manufacturing and usage.

Efficiency at 78% ensures the module provides energy-efficient power conversion, reducing heat generation and power loss. Typical applications include commercial electronics, industrial automation, telecommunications equipment, and other uses requiring isolated DC power conversion with compact size and high reliability.

Operates at 1 W power rating with single isolated output. Supports input up to 24 V DC and output current up to 10 mA. Through hole SIP package for printed circuit board mounting. Wide temperature operation from -40 °C to +85 °C.

3 kV DC isolation voltage for enhanced safety. RoHS compliant for environmental standards. High MTBF rating of 1,100,000 hours ensures durability. Compact dimensions enable use in tight spaces. 78% efficiency optimizes power consumption and heat dissipation.

Suitable for various industrial, commercial, and telecommunications applications. Explore XP Power DC/DC Converters in EnvMart for reliable power supply components.
