VCC CMS 442 Series 1-Way Clear Hexagon Polycarbonate Threaded LED Lens CMS_442_CTP

Free Delivery in India | Lowest Global Shipping Charges

VCC CMS 442 Series 1-Way Clear Hexagon Polycarbonate Threaded LED Lens CMS_442_CTP



Category LED Lenses & Reflectors Brand VCC Condition New

Specifications

Country of Origin	India
Diameter	8.74mm
Brand	VCC
Height	10.92mm
Length	10.92mm
Model	CMS_442_CTP
Width	7.11mm
Series	CMS_442
Lens Material	Polycarbonate
For Use With	LED
Lens Shape	Hexagon
Fixing Method	Threaded
Number of LEDs Per Lens	1

Key Features

The lens material is durable polycarbonate providing good clarity and protection.
The lens shape is hexagonal with a single LED per lens design.
It is designed for LED use with an 8.74 mm diameter and precise dimensions for easy integration.
The threaded fixing method enables easy and secure mounting on panels from 0.8 to 3.2 mm thickness.
This LED lens is sealed and provides a wide viewing angle thanks to Fresnel lens design.
Standard compliance includes UL 94-V2 for polycarbonate flame retardant rating.

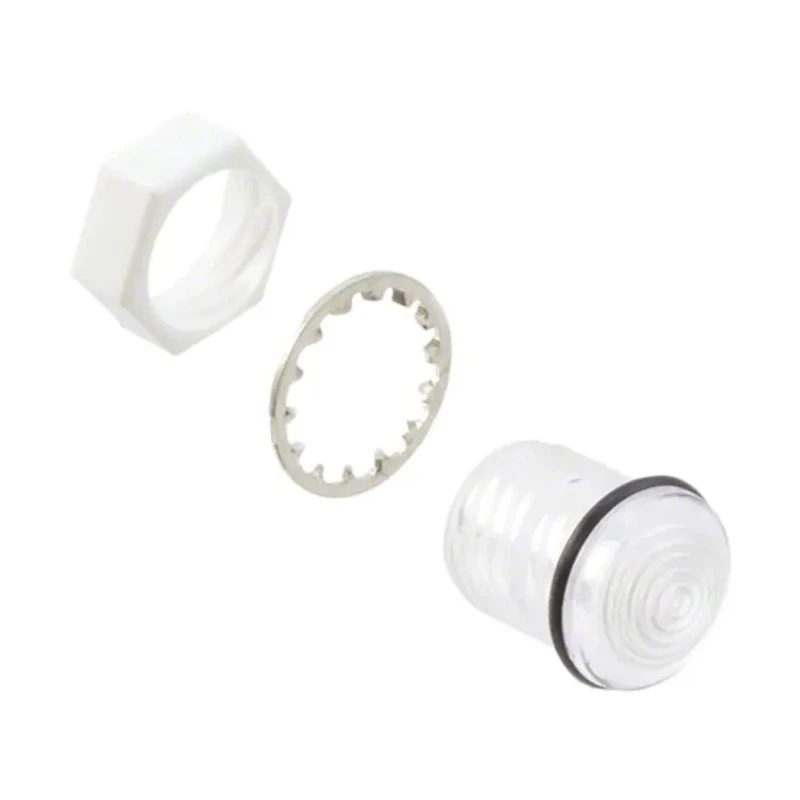

The product includes sealing ring, lock washer, and retaining nut for assembly.

Product Description

VCC CMS_442_CTP is a 1-way LED lens from the CMS 442 series designed to provide efficient light projection and protection for LED units. This lens features a clear hexagonal shape made from durable polycarbonate material, ensuring long-lasting use and high optical clarity. The threaded fixing method allows it to be securely mounted on panels ranging from 0.8 to 3.2 mm thickness, offering flexibility for different applications.

The CMS 442 series lenses utilize a Fresnel design, which increases the viewing angle for the LED light, making them suitable for various electronic and lighting projects. Their sealed construction provides watertight protection, while components such as the sealing ring, lock washer, and retaining nut are supplied to facilitate panel mounting.

With precise dimensions including an 8.74 mm diameter, 10.92 mm height, and 7.11 mm width, these lenses are compact and ideal for LED lighting components in electronic devices, fixtures, and displays. The polycarbonate material used meets UL 94-V2 flame retardant standards ensuring safety in electrical environments.

This lens is well-suited for industrial and commercial LED lighting, electronic design, and instrumentation. It is ideal for use cases requiring a reliable optical solution that is easy to install and ensures secure panel mounting.

The lens is hexagonal in shape with clear polycarbonate material. It is designed for use with LEDs, offering one LED per lens configuration. The mounting is threaded with an included locking assembly for panel thicknesses from 0.8 to 3.2 mm.

Fresnel lens design provides wide light viewing angles. Sealed design supports watertight panel mounting to NEMA4 standards. Compliant with UL 94-V2 for material flame retardance. Supplied with sealing ring, lock washer, and retaining nut for installation.

Explore the Electronics & Electricals category on EnvMart for more LED lens and lighting component options suitable for various industrial, laboratory, and commercial applications.
