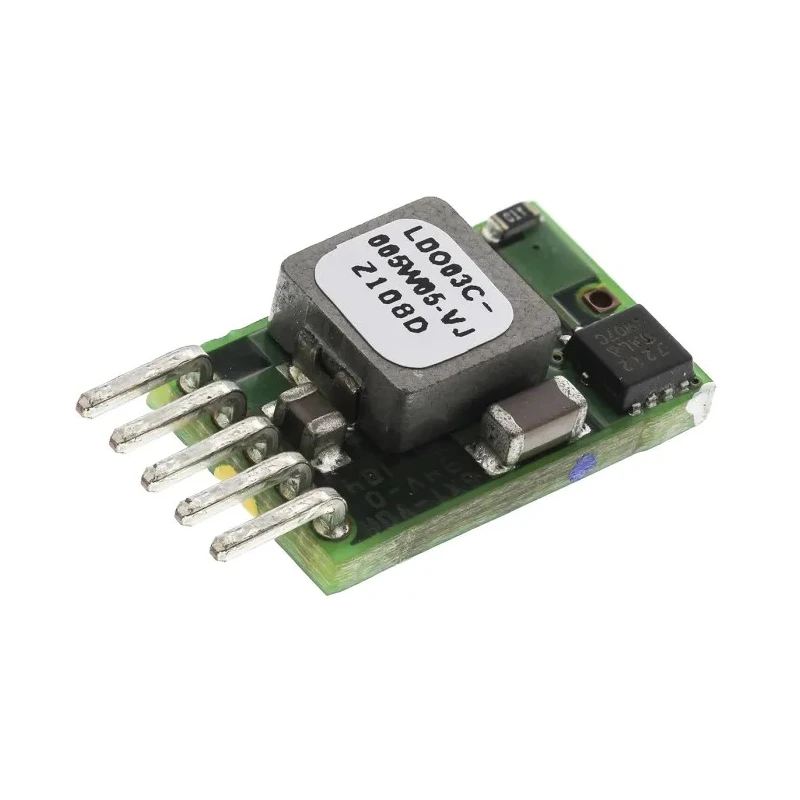

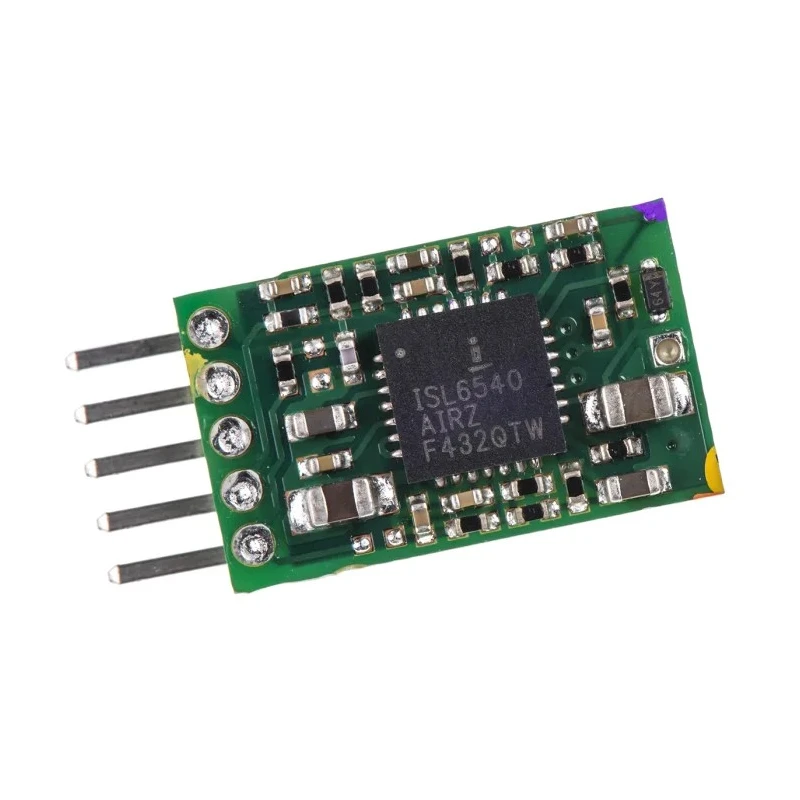

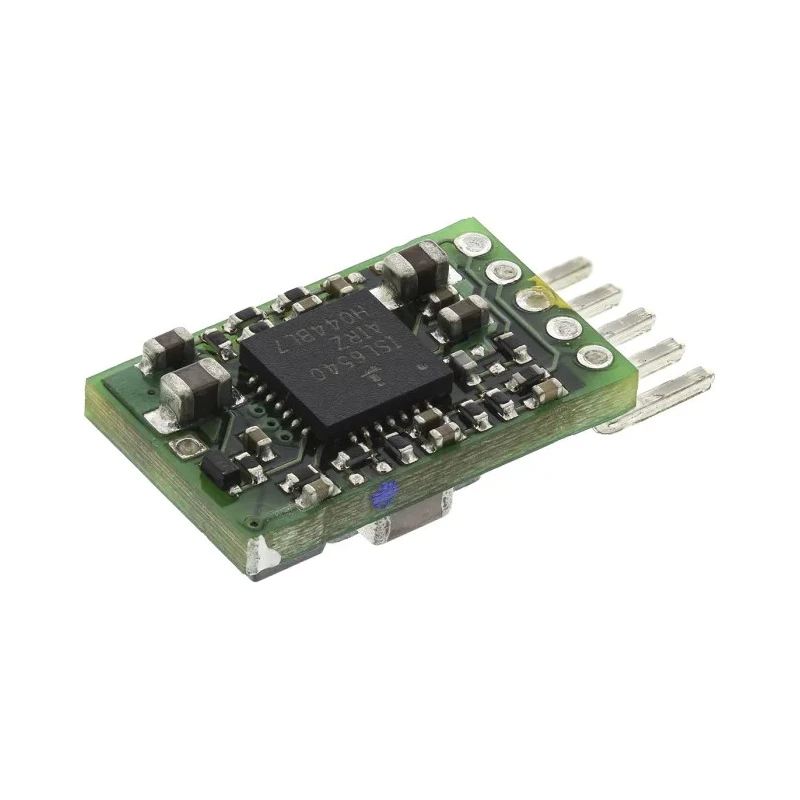

Artesyn / Advanced Energy 15W 3A Single Output Regulated Non-Isolated DC/DC Converter Through Hole Mount LDO03C

Artesyn / Advanced Energy LDO03C is a single output regulated non-isolated DC/DC converter designed for industrial and electronic applications requiring a compact, efficient power solution. Rated at 15 Watts maximum output power, it supports a wide input voltage range of 3 V to 13.8 V DC, making it suitable for various embedded system designs.

The converter delivers adjustable output voltages from 0.59 V to 5.1 V DC, configurable via external resistors, and can provide up to 3 Amps of continuous output current. Its low ripple and noise output (25 mV) ensure reliable power quality for sensitive electronic circuits.

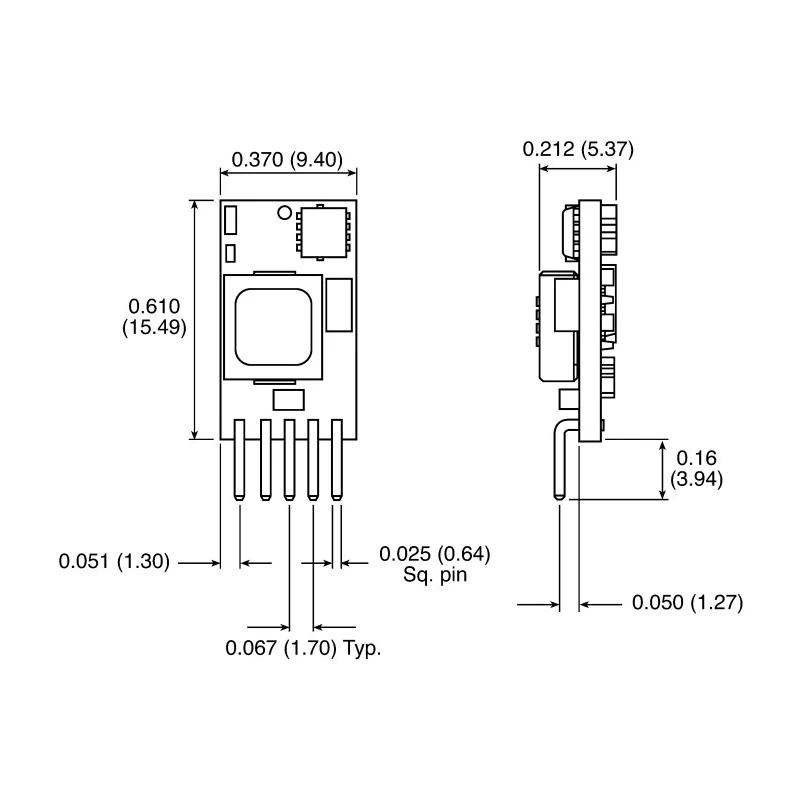

This module features through-hole mounting with a compact form factor of 9.4 mm length, 5.37 mm width, and 15.49 mm depth, supporting easy PCB integration. It is rated for operation within a temperature range of 0°C to 70°C, catering to diverse environmental conditions.

Designed with safety and robustness in mind, it includes built-in over-voltage and short current protection mechanisms. The converter is UL/cUL 60950 certified, complying with stringent safety regulations for industrial and commercial use.

The expected mean time between failures (MTBF) is 10 million hours, indicating high reliability suitable for critical system designs in industrial, telecommunications, medical, and instrumentation applications.

Due to its efficiency and form factor, the LDO03C series is an ideal choice for powering embedded systems, instrumentation, and telecommunications equipment requiring isolated power conversion with minimal noise interference.

Supports wide input voltage range from 3V to 13.8V for versatile applications. Provides adjustable output voltage of 0.59 V to 5.1 V DC via external resistors. Delivers up to 3A output current with maximum power of 15 Watts.

Features low ripple and noise output of 25 mV ensuring clean power delivery. High reliability with MTBF of 10 million hours conforming to industry standards. Compact through-hole package measuring 9.4 mm length, 5.37 mm width, and 15.49 mm depth.

Operating temperature range from 0°C up to 70°C for stable performance in various environments. Includes protection features such as over-voltage and short current protection for system safety. UL/cUL 60950 certified ensuring compliance with global safety standards.
