XP Power 1.5kW 36V DC Switching Power Supply Chassis Mount HDS1500PS36

Free Delivery in India | Lowest Global Shipping Charges

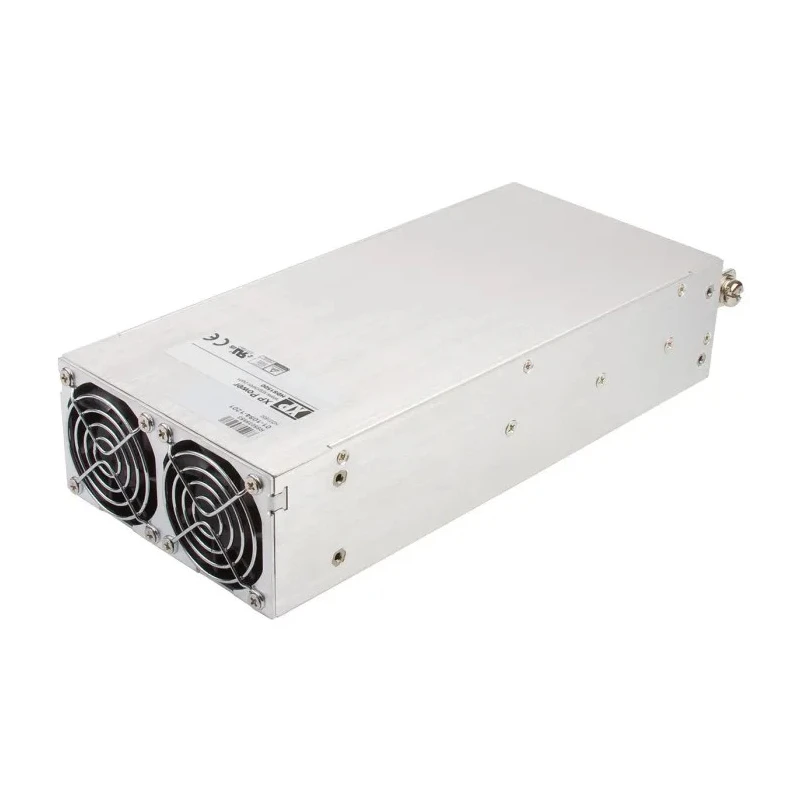

XP Power 1.5kW 36V DC Switching Power Supply Chassis Mount HDS1500PS36

Name: XP Power 1.5kW 36V DC Switching Power Supply Chassis Mount HDS1500PS36
Brand: XP Power
SKU: 300927
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand XP Power Condition New

Specifications

Country of Origin	India
Brand	XP Power
Power	1.5kW
Efficiency	92%
Length	280mm
Model	HDS1500PS36
Depth	63.5mm
Gross Weight	2.6kg
Width	127mm
Mount Type	Chassis
Series	HDS
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	UL 609501, CSA C. . 609501, EN 609501
Maximum Output Voltage	36V dc
SMPS Output Current	41.7A
Minimum Input Voltage	90V ac

Key Features

Produces a maximum output voltage of 36V DC suitable for precise power delivery.
Features a programmable output voltage and current enabling flexible operation.
Supports a wide input voltage range from 90V to 264V AC for versatile use.
Operates reliably within temperature range of -25°C to 60°C.
Constructed for high power density with an efficiency rating up to 92%.
Includes fully featured control signals and parallel operation capability.
Compact dimensions with length 280mm, width 127mm, and depth 63.5mm.
Weighs 2.6 kg, suitable for industrial and commercial applications.

Product Description

XP Power HDS1500PS36 is a high-performance 1500 watt switching power supply optimized for industrial and commercial electronic applications. This chassis mount power supply offers a stable 36V DC output with programmable voltage and current control from 0 to 105%. It operates efficiently with up to 92% efficiency, ensuring energy savings and reduced heat generation.

Designed for versatile operation, the HDS1500PS36 supports a wide input AC voltage range from 90V to 264V and can operate reliably in harsh environments with ambient temperatures from -25°C up to +60°C. Its compact size of 280mm length, 127mm width, and 63.5mm depth facilitates installation in varied equipment racks and control panels.

This power supply features fully featured signals and controls, including parallel operation capabilities for scalability. The single output channel with a maximum output current of 41.7A supports demanding loads with precision. Safety and compliance are ensured through approvals such as UL 60950-1, CSA C.60950-1, and EN 60950-1 standards.

Typical uses include powering industrial machinery, automation systems, laboratory equipment, test instruments, communications gear, and instrumentation that require a reliable DC power source. The robust construction and high power density make this power supply ideal for space-constrained environments.

Maximum output voltage of 36V DC delivers consistent power. High operating temperature range from -25°C to +60°C ensures reliability in harsh conditions. Efficiency of 92% promotes energy savings and minimizes heat dissipation.

Compact chassis mount design for ease of installation. Programmable voltage and current output for application flexibility. Compliance with UL, CSA, and EN safety standards. Supports parallel operation for increased power requirements.

Choose XP Power HDS1500PS36 for your industrial and commercial power supply needs, combining reliability, efficiency, and flexible control. Explore more power supply options and brands on EnvMart for your specific applications.
