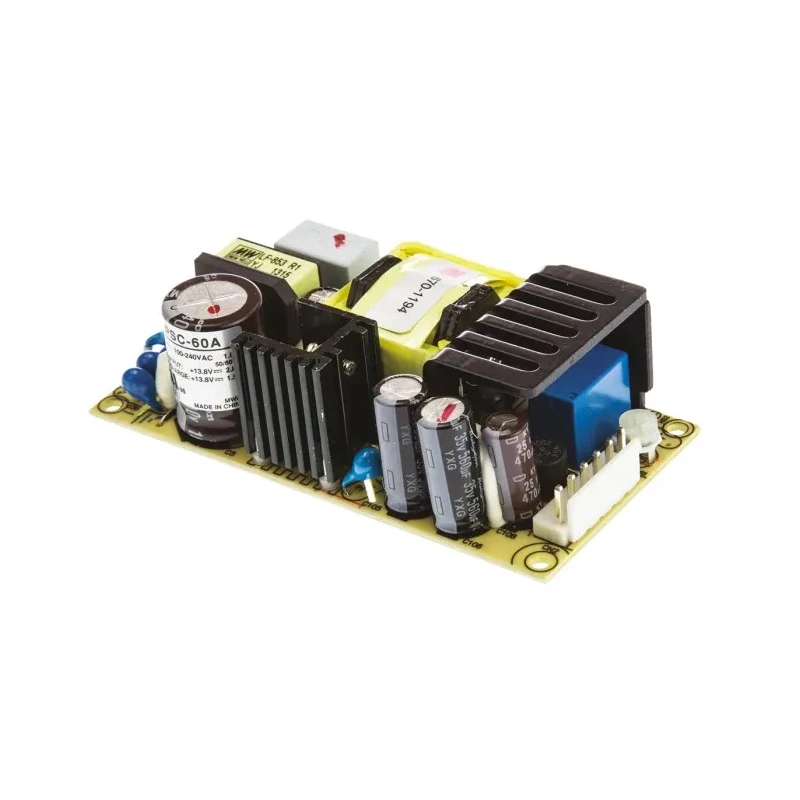

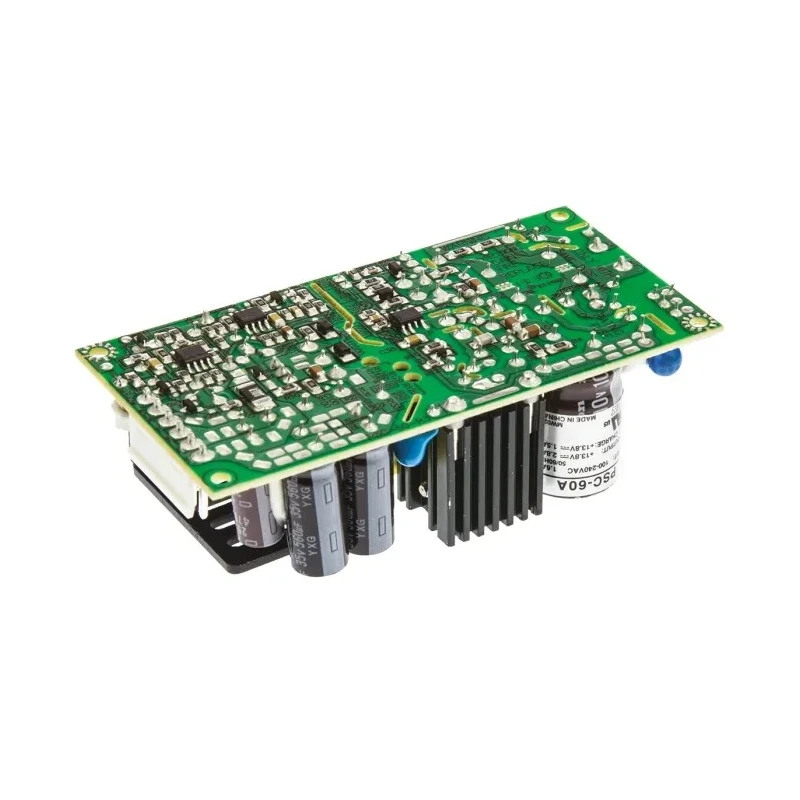

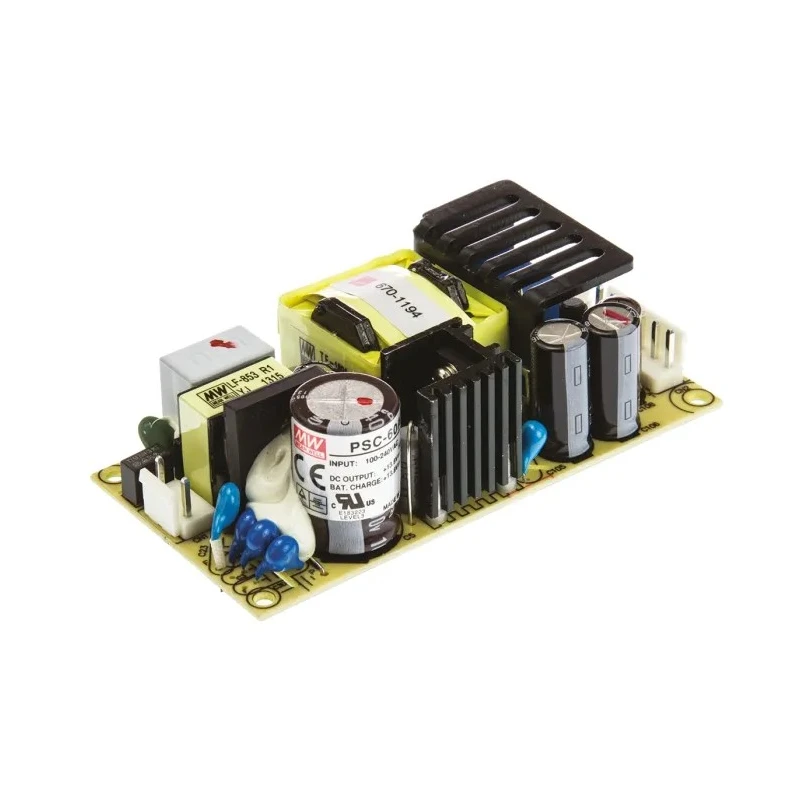

MEAN WELL Switching Power Supply 2 Output 13.8V DC, 59W, Chassis Mount PSC-60A

MEAN WELL PSC-60A Switching Power Supply 2 Output is a robust chassis mount power supply providing a maximum output voltage of 13.8V DC at 59 watts power. Designed for industrial and electronic equipment, it offers reliable and efficient power conversion with 79% efficiency. The dual output configuration supports various applications requiring stable DC power.

This model features a universal AC input voltage range from 90V AC minimum to 370V DC maximum, supporting diverse power sources. The device operates reliably in harsh environments with an ambient operating temperature range of -20°C to 70°C.

Protection features include short circuit, overload, and overvoltage protection, alongside battery charger UPS functions, battery low protection, and polarity protection via fuse. Alarm signals inform about AC OK and battery low conditions, ensuring enhanced monitoring and safety.

The PSC-60A is cooled by free air convection, eliminating the need for additional cooling hardware, and undergoes a 100% full load burn-in test to guarantee quality. Its compact form factor with dimensions 101.6 x 29 x 29 mm and lightweight design of 130 grams make it an excellent choice for space-constrained applications.

Applications for this switching power supply include industrial automation, control systems, instrumentation, telecommunications, and battery backup systems. Its chassis mount configuration allows easy integration into existing assemblies.

Provides dual output with maximum 13.8V DC voltage. Chassis mount type for secure installation. Rated power of 59 watts suitable for various electronic applications. Supports universal AC input voltage range with minimum 90V AC and maximum 370V DC.

Efficient power supply with 79% efficiency. Operational temperature range from -20°C to 70°C for versatile environments. Equipped with short circuit, overload, and over voltage protection for safety. Includes battery charger UPS functions and alarm signals for AC OK and battery low status.

Cooled by free air convection ensuring reliable thermal management. Compact dimensions: 101.6 mm length, 29 mm width, and 29 mm depth. Explore our wide selection of Switching Power Supplies to find the right solution for your industrial, laboratory, or manufacturing needs at EnvMart.
