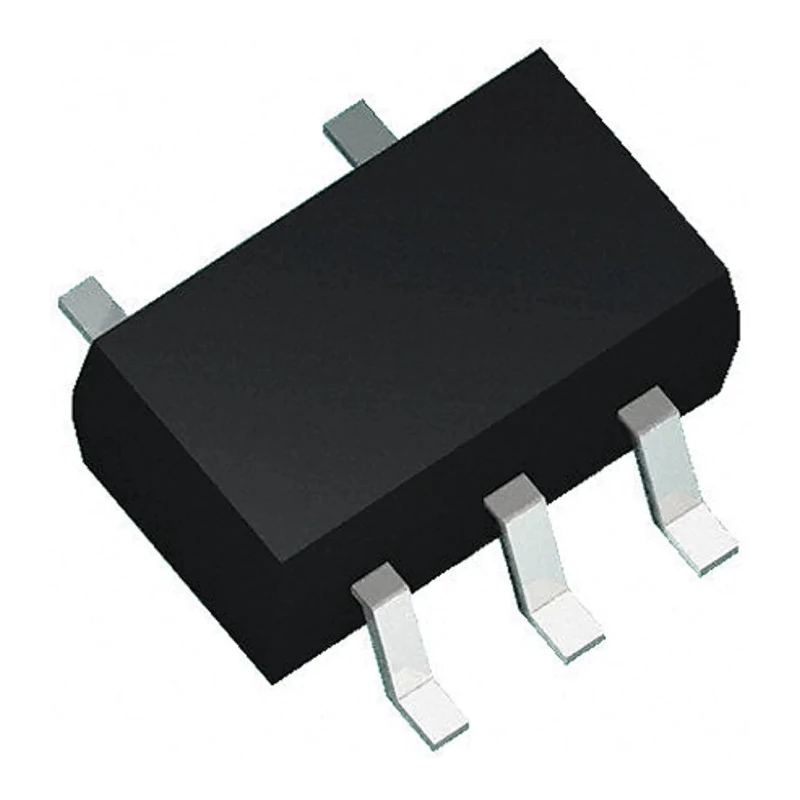

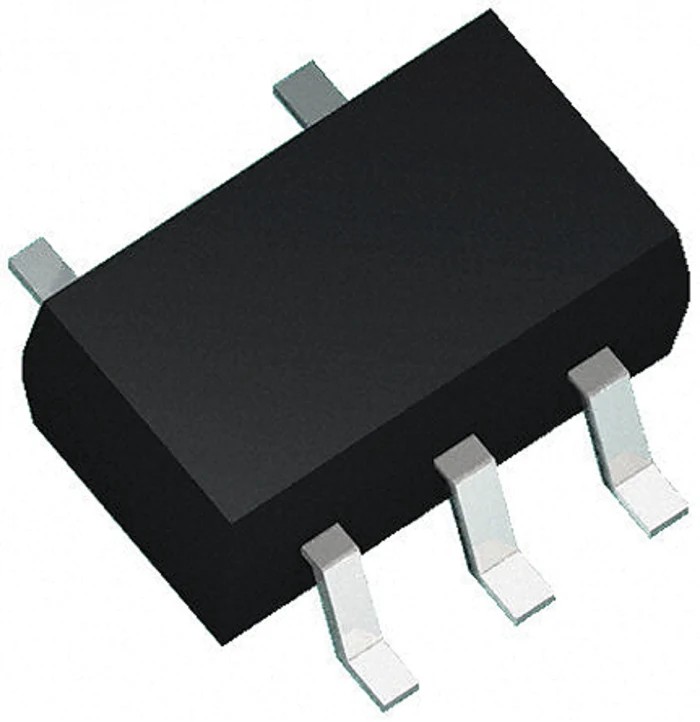

Littelfuse 4-Element Uni-Directional TVS Diode Array 5-Pin SC-70, Surface Mount, 6V Breakdown, 2A Peak Pulse, SP1001-04JTG
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Littelfuse |
| Height | 1mm |
| Length | 2.25mm |
| Model | SP1001-04JTG |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | SP1001 |
| Maximum Operating Temperature | 125°C |
| Package Type | SC-70 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Number of Elements per Chip | 4 |
| Clamping Voltage VC | 13V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Array |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 6V |
| Maximum Reverse Stand-off Voltage Vwm | 5.5V |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 2A |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Provides uni-directional transient voltage suppression with four elements in a single array.
- Offers surface mount construction in a compact SC-70 package for easy integration.
- Minimum breakdown voltage of 6V, ideal for low-voltage signal protection.
- Supports peak pulse currents up to 2A and ESD protection up to ±15kV contact discharge.
- Low clamping voltage of 13V and very low leakage current at 5V, enhancing safety and efficiency.
- Automotive-standard AEC-Q101 compliant for demanding environments.
- Operating temperature range from -40°C to 125°C offers robustness in extreme applications.
- Suitable for high-speed signal pins, computer peripherals, mobile devices, and industrial electronics.
Product Description
The Littelfuse SP1001-04JTG Uni-Directional TVS Diode Array is designed to safeguard sensitive electronic equipment from damaging electrostatic discharge and transient events. This surface mount device features four uni-directional elements within a compact SC-70 package, enabling efficient board space utilization and integration into various circuit designs.
With a minimum breakdown voltage of 6V and a maximum reverse stand-off voltage of 5.5V, the SP1001-04JTG provides reliable protection for low-voltage signals. It supports a peak pulse current of up to 2A and delivers ESD protection rated up to ±15kV contact and ±30kV air discharge, meeting rigorous requirements in automotive, industrial, and consumer electronics.
Low leakage current (max 0.5μA at 5V) and a typical capacitance of 8pF per I/O pin ensure minimal interference with high-speed signal lines, making this diode array suitable for applications like computer peripherals, mobile phones, digital cameras, desktop/notebook computers, LCD/PDPTVs, set-top boxes, DVD players, and MP3 devices.
The product is compliant with Automotive Standard AEC-Q101, supporting temperatures from -40°C to 125°C, and is built using Littelfuse's proprietary silicon avalanche technology for enhanced performance and longevity. Its small physical dimensions - 2.25mm length, 1.35mm width, and 1mm height - make it ideal for compact PCB layouts.
Integration into electronics provides lightning protection, EFT safeguarding, and robust performance against repetitive surge events, ensuring continued operation without degradation. The array form factor also expedites manufacturing processes, allowing multiple pins to be protected in one device.
Industrially, the Littelfuse SP1001-04JTG is used in laboratory equipment, automotive controllers, consumer electronics, communication devices, and manufacturing systems requiring advanced surge protection.
Browse more TVS Diode Array and Littelfuse surge protection solutions in the Electronics & Electricals category at EnvMart for efficient component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The minimum breakdown voltage of this model is 6V, providing reliable protection for low-voltage signals.
It supports a maximum peak pulse current of up to 2A, making it suitable for various transient events.
The clamping voltage for this unit is 13V, which helps to protect sensitive components from voltage spikes.
This model has a length of 2.25mm, a width of 1.35mm, and a height of 1mm, making it compact for PCB layouts.
The operating temperature range is from -40°C to 125°C, allowing it to function in extreme environments.
The maximum reverse leakage current at 5V is 100nA, ensuring minimal interference with signal lines.
Yes, it is compliant with Automotive Standard AEC-Q101, suitable for automotive applications.
This diode array features surface mount construction, facilitating easy integration into various circuit designs.
It contains four uni-directional elements in a single array, providing efficient protection.
The typical capacitance per I/O pin is 8pF, which helps to minimize signal interference.
This model is suitable for high-speed signal pins, computer peripherals, mobile devices, and industrial electronics.
The maximum reverse stand-off voltage is 5.5V, which is important for protecting low-voltage signals.
