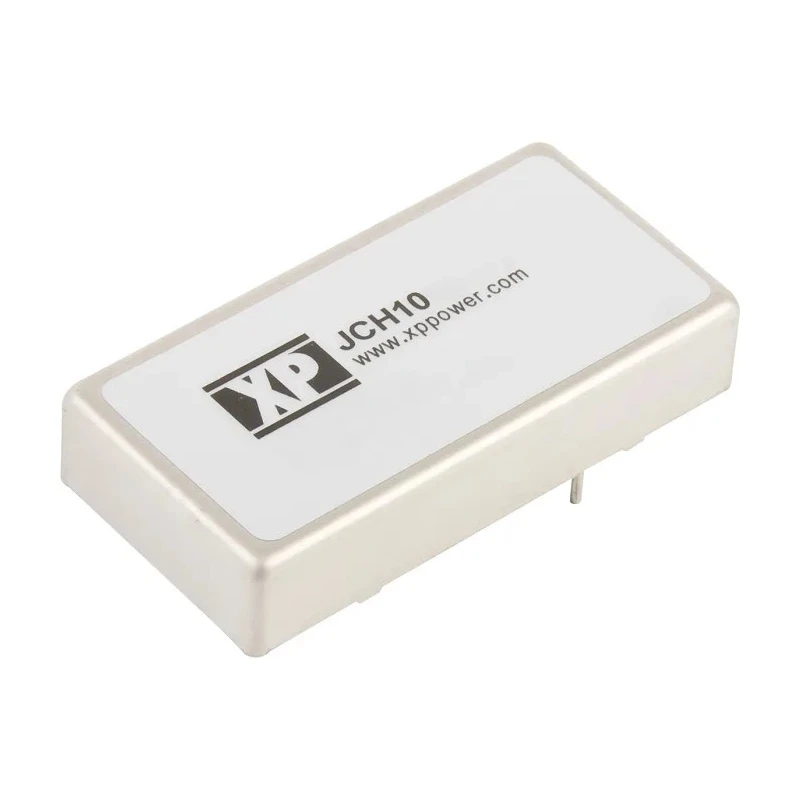

XP Power 10 W Isolated DC/DC Converter 5V DC 2A 18V DC Input Through Hole JCH1012S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCH DC/DC Converter, 5V dc/ 2 A, 18V dc I |
| Brand | XP Power |
| Efficiency | 82% |
| Length | 50.8mm |
| Model | JCH1012S05 |
| Depth | 10.16mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | JCH |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 24 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 2A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact through-hole DIP package for easy board mounting.
- Reliable single output with ±1% voltage adjustment.
- High efficiency of 82% to reduce power loss.
- 1500 VDC isolation ensures safety and noise immunity.
- Operating temperature range from -40°C to 100°C for harsh environments.
- Convection cooled design with continuous short circuit protection.
- Long mean time between failure (MTBF) of 1,100,000 hours ensures durability.
- RoHS compliant and manufactured in Taiwan.
Product Description
XP Power JCH1012S05 is a 10 W isolated DC/DC converter designed for robust industrial and commercial electronic applications requiring stable and efficient power conversion.
This converter features a compact through-hole DIP package enabling easy PCB mounting. It supports a wide input voltage range from 9V to 18V DC, allowing flexible sourcing and adaptation to varying power conditions.
The product provides a single 5V DC output with a maximum current of 2A. It incorporates a ±1% output voltage adjustment for precise regulation and delivers up to 82% efficiency, minimizing heat dissipation for reliable performance.
With 1500 VDC isolation voltage, the converter ensures high-level safety and reduced electrical noise, critical for sensitive equipment. It is designed to operate in harsh temperature environments from -40°C to +100°C, suitable for diverse industrial, laboratory, and commercial settings.
Compact industry-standard through-hole DIP package. Wide 2:1 input range from 9V to 18V DC ensuring flexibility. Single output 5V DC at 2A with ±1% adjustment range. Up to 82% efficiency for energy savings. 1500 VDC isolation offering enhanced safety.
Operating temperature from -40°C to +100°C for harsh conditions. Convection cooled with continuous short circuit protection. Long MTBF of 1,100,000 hours for reliable operation. RoHS compliant and manufactured in Taiwan, Province Of China.
This DC/DC converter series is ideal for industrial power supplies, instrumentation, telecommunications, and embedded systems. It supports board-mount configurations and is convection cooled for maintenance-free operation.
Explore the full range of XP Power products and DC/DC Converters at EnvMart for reliable, high-performance power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 9V to 18V DC, allowing for flexible power sourcing.
This unit has a maximum output power of 10W, providing a single 5V DC output with a maximum current of 2A.
It has an efficiency rating of up to 82%, which helps to minimize heat dissipation during operation.
The dimensions of this model are 50.8mm in length, 25.4mm in width, and 10.16mm in depth.
This unit offers an isolation voltage of 1500 VDC, ensuring safety and noise immunity for sensitive applications.
It operates within a temperature range of -40°C to +100°C, making it suitable for harsh environments.
This model features a through-hole DIP package, facilitating easy PCB mounting.
This converter has a single output, providing 5V DC at a maximum current of 2A.
The MTBF for this unit is 1,100,000 hours, indicating a long expected operational lifespan.
Yes, the JCH1012S05 is RoHS compliant, ensuring it meets environmental standards.
It includes continuous short circuit protection, enhancing safety during operation.
This DC/DC converter is ideal for industrial power supplies, instrumentation, telecommunications, and embedded systems.
