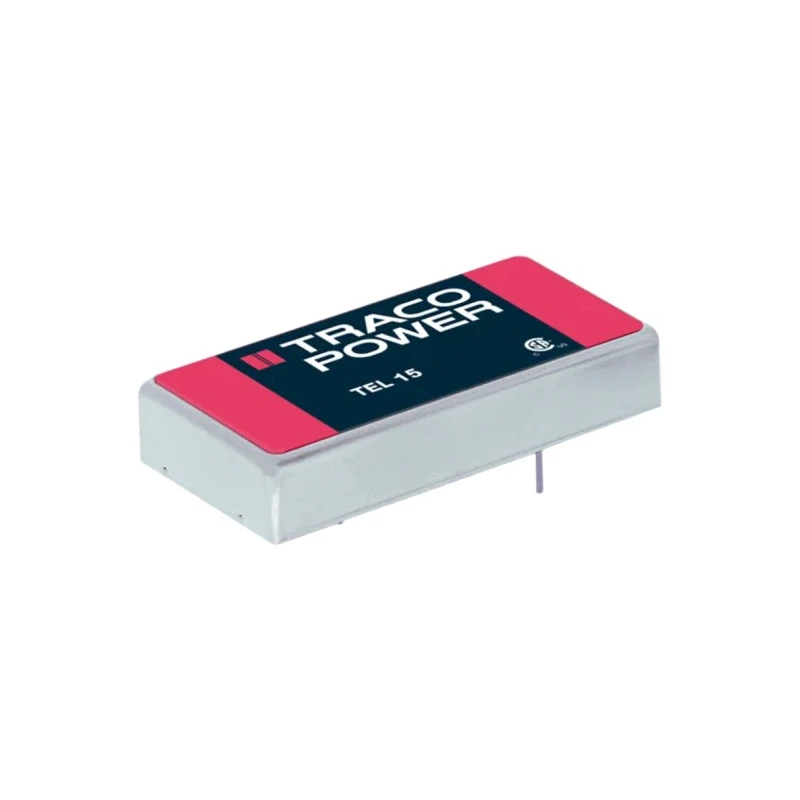

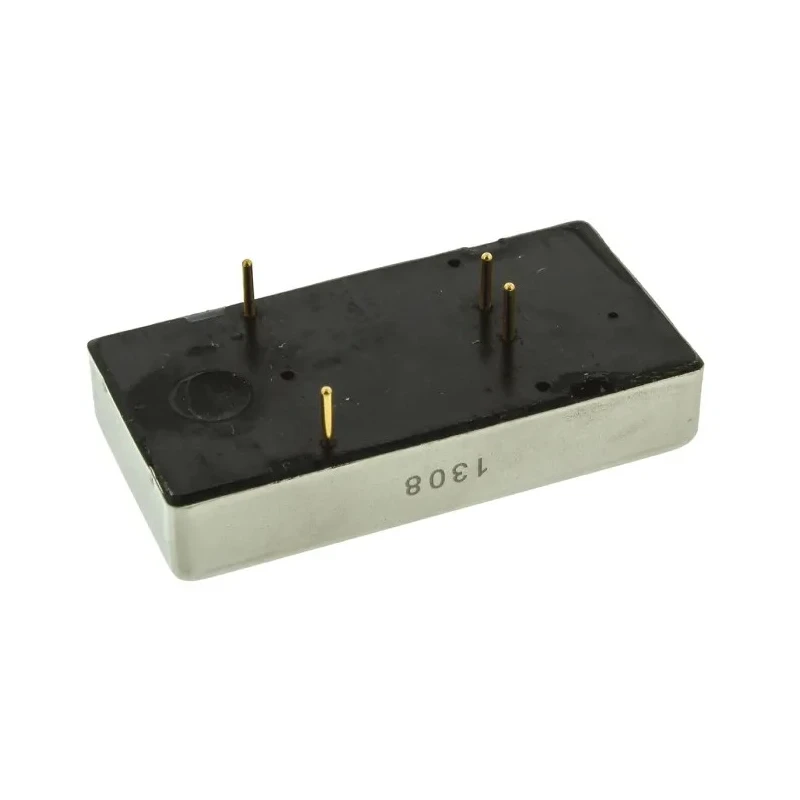

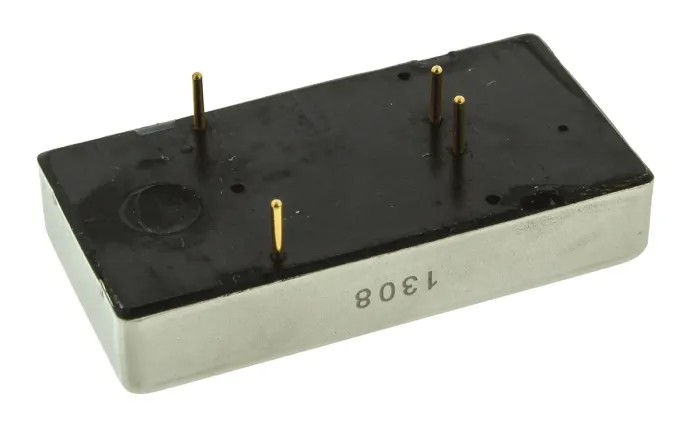

TRACOPOWER Regulated Isolated DC/DC Converter 12V dc Output 1.25A 15W PCB Mount TEL 15-1212

TRACOPOWER TEL 15-1212 is a high-quality regulated isolated DC/DC converter module designed to deliver stable 12V dc output at 1.25 A with a maximum power rating of 15W. It is engineered with highly reliable Surface Mount Device (SMD) technology and features a compact PCB mounting form factor suitable for various electronic and industrial applications.

This converter supports a wide input voltage range of 9V to 18V dc, enabling compatibility with different power sources and systems. Its high efficiency of 86% minimizes energy loss and heat generation, making it suitable for continuous use in demanding environments.

The device maintains operational stability within a broad temperature range from -40°C minimum to 80°C maximum, without requiring derating. The high 1.5 kV dc isolation voltage ensures safety and reduces electrical noise, which is critical in industrial, laboratory, and manufacturing setups.

With an MTBF of 700,000 hours, the TEL 15-1212 promises reliable long-term operation. It includes indefinite short circuit protection for enhanced durability, preventing damage from faults. The output voltage adjustment range of -1% to 1% allows precise output tuning for sensitive electronics.

This DC/DC Converter conforms to international safety standards UL/cUL 60950-1 and IEC/EN 60950-1, certified for use in Canada and the US markets, offering assurance of quality and safety.

High efficiency up to 86% ensures optimum performance. Wide input voltage range from 9V to 18V dc supports diverse applications. Robust PCB mount design with surface mount package type. Operating temperature range from -40°C to 80°C for reliable industrial use.

High isolation voltage of 1.5 kV dc for safety and noise reduction. Compact dimensions with length 50.8mm and depth 10.2mm enable space-saving installation. Mean Time Between Failures (MTBF) of 700,000 hours ensures long product life.

Single output with adjustable voltage range of -1% to 1% allows precise regulation. Indefinite short circuit protection enhances product durability. Complies with UL/cUL 60950-1 and IEC/EN 60950-1 standards for safety.

This converter is ideal for use in electronics manufacturing, communications equipment, industrial automation systems, laboratory instrumentation, and power supply design where reliable DC power conversion is critical. It offers a cost-optimized solution with industry-standard pin-out and shielded metal case with insulated base plate.
