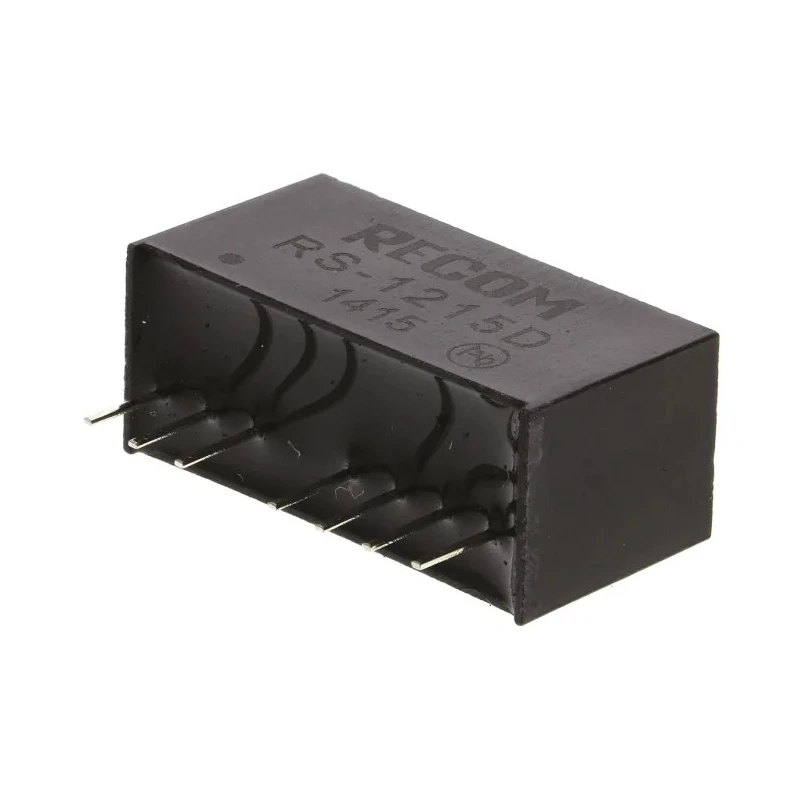

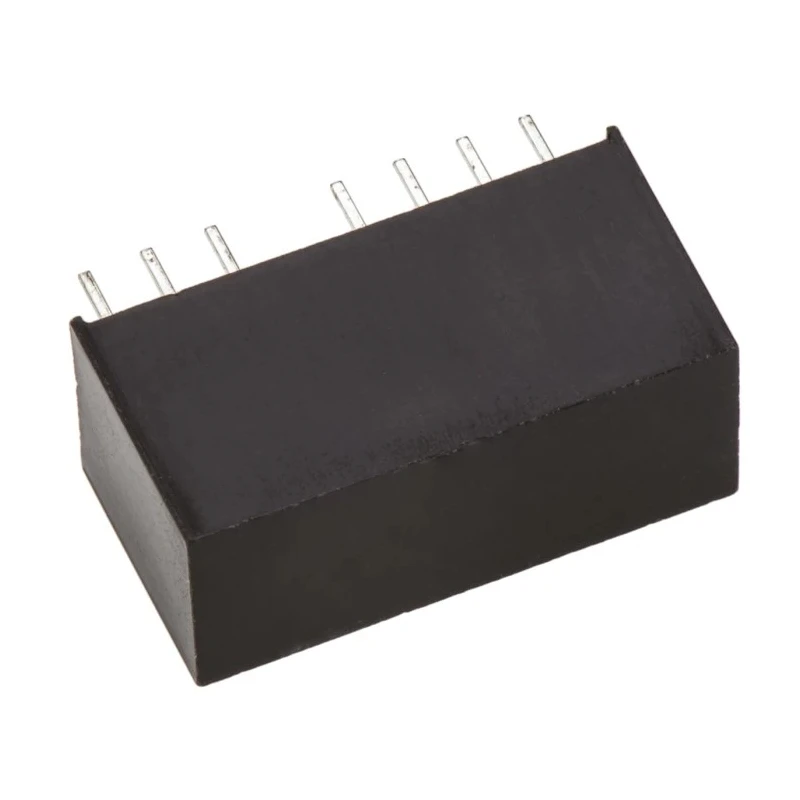

Recom RS DC/DC Converter, 15V, -15 V Output, 67 mA, 18V DC Input, 9V Input, 2 W Power, Through Hole Package, -40°C RS-1215D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RS DC/DC Converter, 15V, -15 V/ 67 mA, 18V d |
| Brand | Recom |
| Efficiency | 80% |
| Length | 21.8mm |
| Model | RS-1215D |
| Depth | 11.1mm |
| Width | 9.2mm |
| Mount Type | Through Hole |
| Series | RS |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1398h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 15, -15V |
| Output Current 1 | 67mA |
| Isolation Voltage | 500V ac |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- This DC/DC converter features dual outputs for positive and negative voltages.
- It provides isolation voltage of 500V AC ensuring safety and reducing interference.
- Compact length of 21.8 mm and width of 9.2 mm make it suitable for small PCB footprints.
- It delivers an efficiency of 80% to minimize power loss and heat generation.
- Designed with built-in short circuit protection for enhanced circuit safety.
- Its MTBF of 1398 hours ensures long-term dependable operation.
- The converter complies with no specific certifications but meets industrial operating standards.
- Applicable in consumer electronics, household appliances, and medical equipment.
Product Description
The Recom RS-1215D is a reliable DC/DC converter designed for industrial and electronic power supply applications. It provides dual output voltages of +15V and -15V at an output current of 67 mA with a maximum output power of 2 watts. Compatible with DC input voltages ranging from 9V to 18V, this module is suitable for low-voltage electronic systems requiring dual rail voltage supply.
Housed in a Through Hole SIP package with dimensions 21.8 mm length, 9.2 mm width, and 11.1 mm depth, it is compact and easy to mount on standard printed circuit boards. The unit features an input to output isolation voltage rating of 500V AC to enhance electrical safety and reduce noise interference.
Operating efficiently at 80%, RS-1215D limits power wastage and heat generation, supporting ambient temperatures from -40°C to 85°C for harsh environment endurance. Its Mean Time Between Failures (MTBF) is rated at 1398 hours, promising sustained performance over prolonged use.
This DC/DC converter incorporates built-in short circuit protection to safeguard circuitry against fault conditions, making it suitable for sensitive electronic devices. Its 2:1 input voltage ratio allows flexibility in power supply design considerations.
Dual outputs delivering +15V and -15V with 67 mA current capacity. Isolation voltage of 500V AC for safety and noise reduction. Compact SIP package with through hole mount type. Operating temperature range from -40°C to 85°C for industrial robustness.
High efficiency of approximately 80% reduces energy losses. Built-in short circuit protection enhances device safety. Suitable for household appliances, medical, pharmaceutical, and consumer electronics.
The Recom RS-1215D DC/DC Converter is an optimal choice for reliable power conversion in diverse industrial, medical, and commercial applications. Explore more high-quality power supply solutions and electronic components in the EnvMart catalog for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 2 watts.
It provides dual output voltages of +15V and -15V.
This unit is compatible with DC input voltages ranging from 9V to 18V.
The efficiency of the RS-1215D is approximately 80%.
The dimensions are 21.8 mm in length, 9.2 mm in width, and 11.1 mm in depth.
It features an isolation voltage of 500V AC.
This model operates within a temperature range of -40°C to 85°C.
Yes, it is designed with built-in short circuit protection for enhanced safety.
This DC/DC converter has two outputs.
The MTBF for the RS-1215D is rated at 1398 hours.
It uses a through hole mounting type.
It is applicable in consumer electronics, household appliances, and medical equipment.
