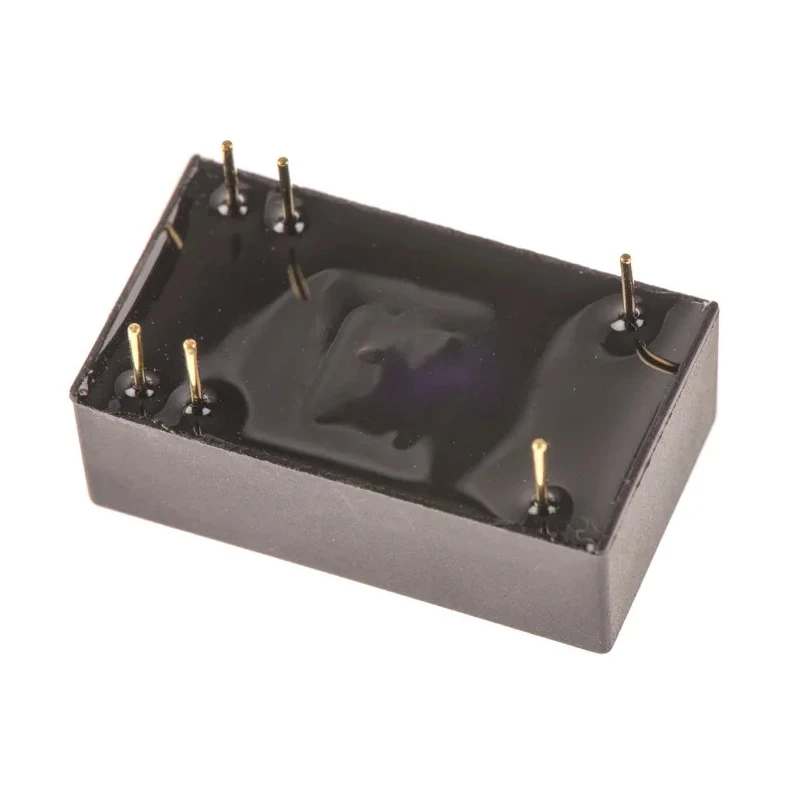

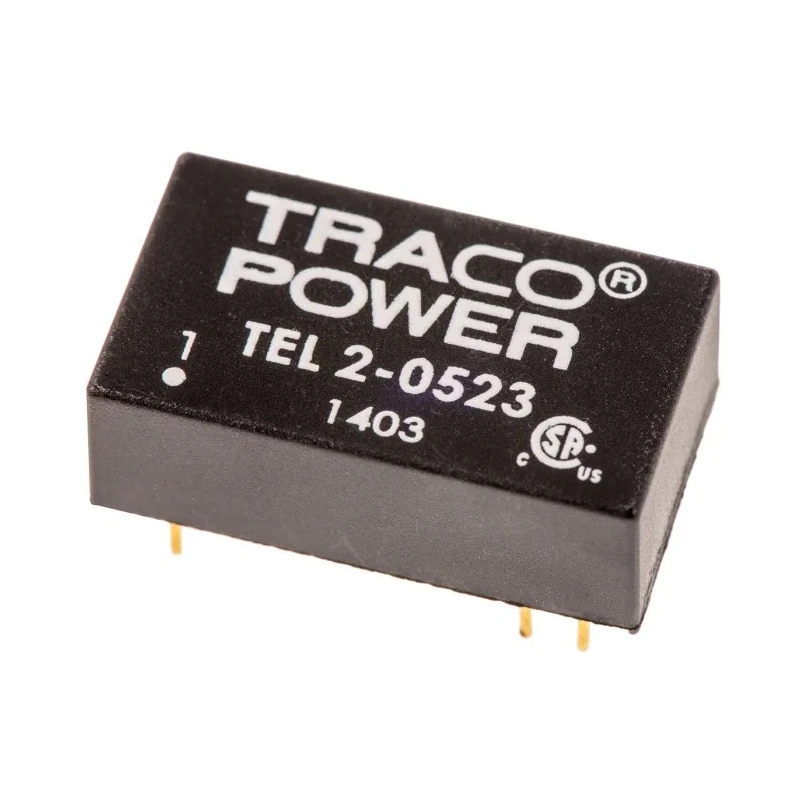

TRACOPOWER Isolated 2W Regulated DIP-16 PCB Mount DC/DC Converter 15V / 65mA, Input 4.5-9V, 6-Pin TEL 2-0523
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEL 2 DC/DC Converter, 15V dc/ 65 mA, 9 |
| Brand | TRACOPOWER |
| Efficiency | 71% |
| Length | 23.8mm |
| Model | TEL 2-0523 |
| Depth | 7.62mm |
| Width | 13.7mm |
| Mount Type | PCB |
| Series | TEL 2 |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP-16 |
| Minimum Operating Temperature | -40°C |
| MTBF | 1200000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 9V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 6 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 65mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Output Voltage 2 | -15V dc |
| Wide 2 | 1 input range |
Key Features
- Provides isolated and regulated dual output voltages suitable for industrial and consumer electronics.
- Operates with input voltage range of 4.5V to 9V DC for flexible power supply requirements.
- Compact DIP-16 plastic package ensures space-efficient PCB mounting with low profile.
- High isolation voltage of 1.5kV DC supports safety and interference immunity.
- Wide operating temperature range from -40°C to 80°C for harsh environment tolerance.
- Low ripple and noise output ensures stable power delivery.
- Indefinite short circuit protection enhances device reliability.
- Efficiency rating of 71% optimizes power conversion performance.
Product Description
TRACOPOWER TEL 2-0523 is an isolated 2 Watt DC/DC converter featuring a DIP-16 plastic package designed for PCB mounting. This regulated converter supports dual output voltages, including a primary 15V DC output rated at 65mA, and a negative output voltage of -15V DC, meeting diverse power demands.
The unit operates reliably over a wide input voltage range of 4.5V to 9V DC with a 2:1 input ratio, delivering up to 2W maximum output power. Its compact dimensions - 23.8mm length, 13.7mm width, and 7.62mm depth - allow efficient integration into space-constrained industrial and consumer electronics devices.
The converter provides galvanic isolation rated at 1.5kV DC to enhance electrical safety and reduce noise coupling. With an operating temperature range of -40°C to +80°C, it is suitable for use in demanding environmental conditions without derating.
Designed with performance and robustness in mind, this model offers low output ripple and noise, indefinite short circuit protection, and an input filter compliant with EN55022 Class A without additional external filters. Its efficiency of 71% ensures effective power conversion while minimizing thermal dissipation.
The TRACOPOWER TEL-2 series is widely used in industrial control systems, measurement instruments, automation equipment, and consumer electronics where small size, high reliability, and electrical isolation are priorities.
Provides isolated and regulated dual output voltages suitable for industrial and consumer electronics. Operates with input voltage range of 4.5V to 9V DC for flexible power supply requirements. Compact DIP-16 plastic package ensures space-efficient PCB mounting with low profile.
High isolation voltage of 1.5kV DC supports safety and interference immunity. Wide operating temperature range from -40°C to 80°C for harsh environment tolerance. Low ripple and noise output ensures stable power delivery.
Indefinite short circuit protection enhances device reliability. Efficiency rating of 71% optimizes power conversion performance. Input filter compliant with EN55022 Class A without external components. Ideal for cost-sensitive applications requiring compact isolated DC/DC conversion.
Explore more specialized DC/DC Converters and power supply solutions from TRACOPOWER on EnvMart to meet your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range of 4.5V to 9V DC, allowing for flexible power supply requirements.
It provides dual output voltages: a primary output of 15V DC at 65mA and a secondary output of -15V DC.
The efficiency rating of this unit is 71%, optimizing power conversion performance.
The TRACOPOWER TEL 2-0523 is housed in a compact DIP-16 plastic package, designed for PCB mounting.
It features a high isolation voltage of 1.5kV DC, enhancing electrical safety and reducing noise coupling.
This unit operates reliably over a wide temperature range of -40°C to +80°C, making it suitable for harsh environments.
This model has two outputs, providing both positive and negative voltage outputs.
The dimensions are 23.8mm in length, 13.7mm in width, and 7.62mm in depth.
The maximum output power of the TEL 2-0523 is 2W.
Yes, it features indefinite short circuit protection, enhancing device reliability.
The MTBF for the TRACOPOWER TEL 2-0523 is rated at 1,200,000 hours.
It includes an input filter compliant with EN55022 Class A without the need for additional external filters.
