TRACOPOWER 1 Watt DC/DC Converter, 15 V DC Output, 67 mA Output Current, 18 V Maximum Input, 12 V Minimum Input TRV 1-1513M

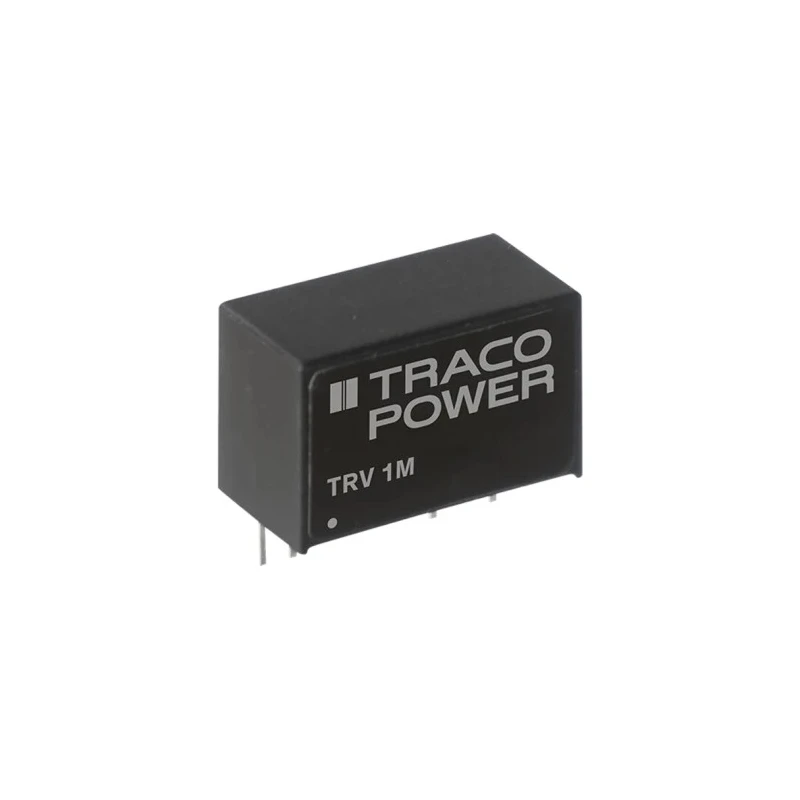

The TRACOPOWER TRV 1-1513M is a 1 Watt DC/DC Converter engineered for medical, industrial, and embedded electronic applications where high safety and reliable performance are critical. This compact SIP-9 package converter supports an input voltage range of 12 to 18 V DC and provides a stable 15 V DC output at 67 mA, suitable for low power devices.

Featuring reinforced isolation rated at 5000 VAC, the converter ensures safety compliance with IEC/EN/ES 60601-1 3rd edition standards, making it ideal for patient-connected devices. Its semi-regulated output design balances cost-effectiveness with regulated performance, supported by low noise (100 mV peak-to-peak) and minimal leakage current below 2 µA for sensitive electronic protection.

Designed for through-hole PCB mounting using its SIP-9 package and 5 pins, this module offers robust integration with minimal board space. It features a wide operating temperature range from -40 °C to +85 °C without derating, maintaining performance in harsh environments including industrial and outdoor settings. With a Mean Time Between Failure (MTBF) of over 19 million hours, the product promises dependable long-term operation.

This converter achieves an efficiency level of 0.84%, minimizing heat generation and enhancing power usage. The product is RoHS compliant, supporting environmentally responsible manufacturing and usage.

Common applications include power supply isolation, medical equipment, industrial control systems, and embedded electronics requiring compact, isolated DC voltage conversion with regulatory safety requirements. The TRACOPOWER TRV series also supports short circuit protection and a low leakage feature, enhancing overall system reliability.

Operates with input voltage range from 12 V to 18 V DC. Compact SIP-9 package designed for through-hole mounting. Provides reinforced input-output isolation of 5000 VAC for safety. Features low ripple and noise of 100 mV peak-to-peak ensuring output stability.

Operating temperature from -40 °C up to 85 °C without derating. High MTBF of 19,360,000 hours for reliable long-term performance. Efficient semi-regulated output with efficiency rating of 0.84%. Low leakage current under 2 µA, compliant with IEC medical safety standards.

Single output with five pins in a robust SIP package for easy PCB integration. Meets RoHS standards ensuring environmental compliance. Explore EnvMart’s Electronics & Electricals section for a comprehensive range of DC/DC Converters and power supply components from reputed manufacturers like TRACOPOWER.
