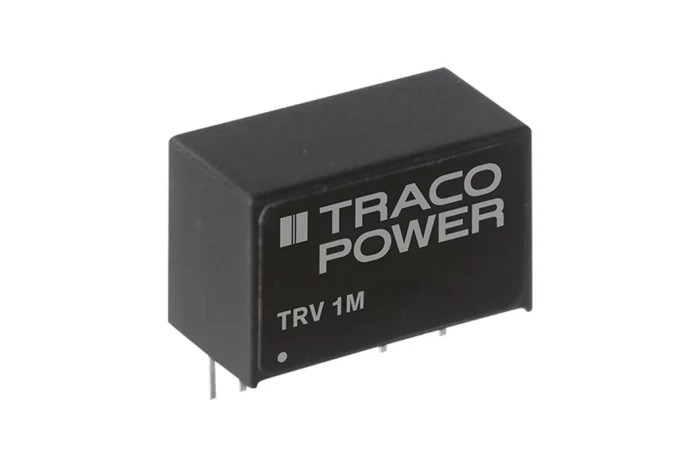

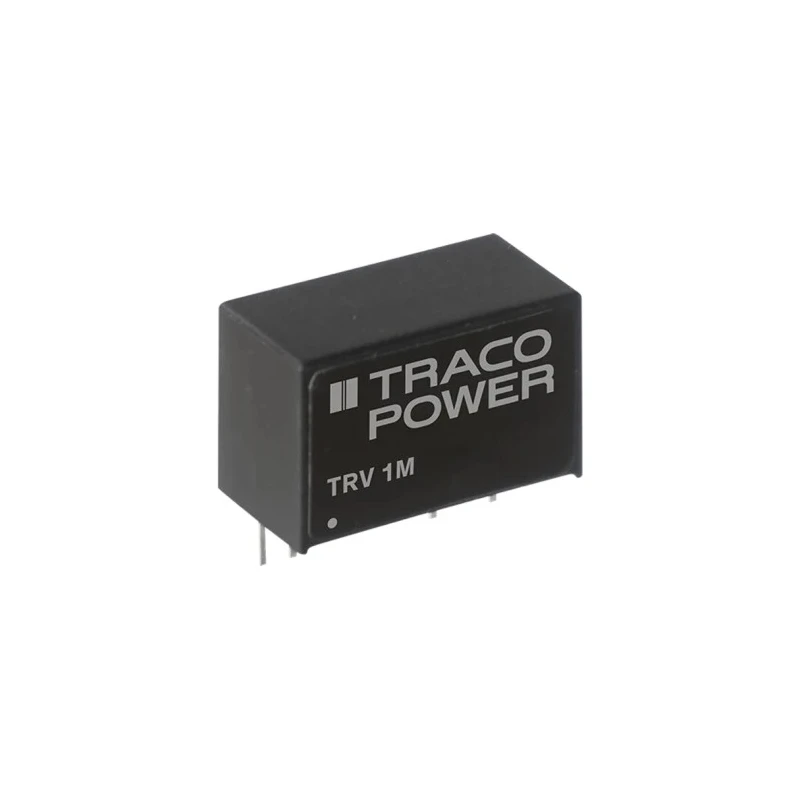

TRACOPOWER 1 Watt 12V DC/DC Converter, 42 mA Output, 14.4V Max Input, 9.6V Min Input, Through Hole Mount TRV 1-1222M

TRACOPOWER TRV 1-1222M is a 1 Watt DC/DC converter designed for medical and industrial use, offering highly reliable isolated power conversion in a compact SIP-9 through hole mount package. This device delivers a stable 12V DC output with a maximum output current of 42 mA, supporting a maximum input voltage of 14.4V DC and a minimum of 9.6V DC.

The TRV series is engineered with reinforced isolation voltage of 5000 VAC which ensures excellent protection and meets stringent safety requirements, including IEC/EN/ES 60601-1 3rd edition for 2xMOPP, making it suitable for patient-related applications.

Operating over a wide temperature range from -40°C to +85°C without derating, the converter is robust for diverse environmental conditions. It provides semi-regulated dual outputs at ±12 V DC with low ripple and noise of 100 mV peak-to-peak, ensuring signal integrity and stable power delivery.

This converter features continuous short circuit protection and maintains low leakage currents below 2 μA, guaranteeing both component and patient safety. Its efficiency rating up to 83% supports energy-efficient operation with a maximum output power rating of 1 Watt.

The compact dimensions of 19.6 mm length, 9.8 mm width, and 12.5 mm depth facilitate easy integration into electronic devices requiring through hole mounting. The product complies with multiple industry standards including EN, IEC, REACH, RoHS, and UL, ensuring environmental safety and universal acceptance.

Typical applications include medical instrumentation, industrial electronics, instrumentation, and low power isolated DC supply requirements. The TRACOPower TRV series provides reliability, safety, and performance for demanding industrial and medical power conversion tasks.

Compact SIP-9 package with reinforced isolation voltage of 5000 VAC for patient and industrial safety. Dual outputs at ±12 V DC with 100 mV peak-to-peak ripple and noise. Wide operating temperature range from -40°C to +85°C without derating.

Low leakage currents less than 2 μA protect connected equipment and patients. Continuous short circuit protection ensures robustness under fault conditions. Meets EN, IEC, REACH, RoHS, UL safety and environmental standards.

High MTBF of 19,360,000 hours assures long operational life. Explore the range of TRACOPOWER DC/DC Converters for reliable, isolated power solutions in industrial and medical equipment at EnvMart.
