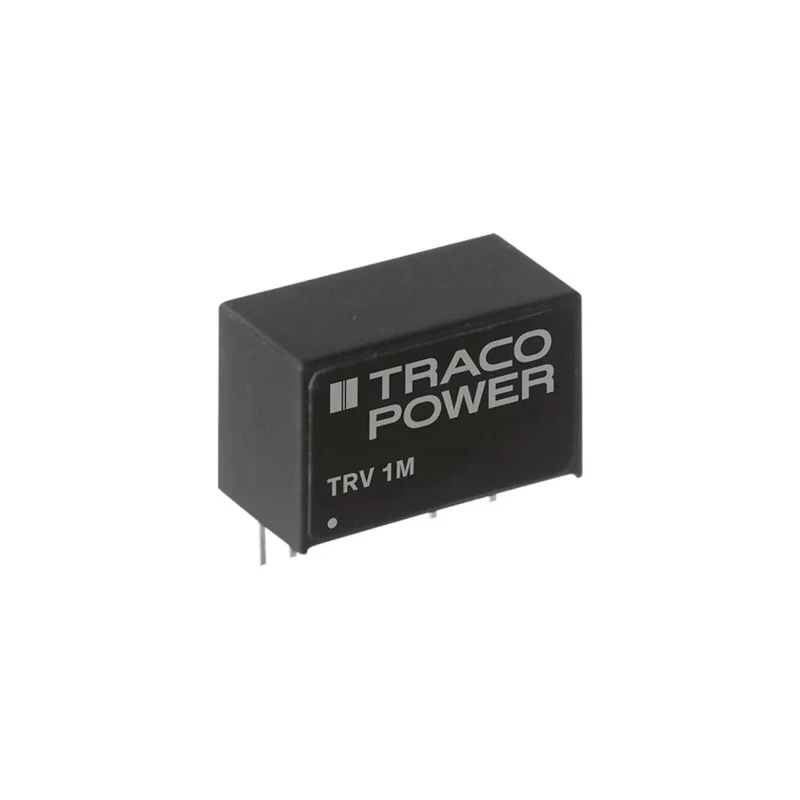

TRACOPOWER 1 Watt 12V DC / -12V DC Dual Output SIP-9 Through Hole DC/DC Converter TRV 1-2422M

The TRACOPOWER TRV 1-2422M is a high-performance DC/DC converter providing dual outputs of 12V dc and -12V dc with a maximum output power of 1 Watt. Housed in a compact SIP-9 through hole package, this converter features reinforced isolation voltage up to 5000 VAC making it suitable for medical and industrial applications requiring stringent safety standards.

Operating efficiently within an input voltage range of 19.2V to 28.8V dc, it ensures low ripple and noise at 100mV peak-to-peak, which is critical for sensitive equipment. The device incorporates continuous short circuit protection for durability, and semi-regulated outputs offer a balance of regulation with cost-effectiveness.

With a wide operational temperature range from -40 to 85 °C and certified compliances including UL, RoHS and EN, the TRV 1-2422M is reliable in harsh environments and elevated altitudes up to 5000 meters.

The small footprint with dimensions of 19.6mm length, 9.8mm width, and 12.5mm depth and a lightweight design at 4.8 grams makes it easy to incorporate into compact electronic assemblies. Featuring 5 pins for connection and a mean time between failures (MTBF) of 19,360,000 hours, it ensures dependable long-term operation.

This DC/DC converter series is ideal for powering medical devices, industrial automation controls, and other applications demanding high isolation, low leakage current, and rugged performance.

Reinforced isolation up to 5000 VAC protects sensitive medical and industrial circuitry. Continuous short circuit protection enhances device safety and longevity. Low leakage current less than 2 μA helps in medical patient-connected applications.

Wide operating temperature range supports diverse environmental conditions. Compact SIP-9 through hole package fits easily onto printed circuit boards. Compliance with IEC/EN/ES 60601-1 3rd edition for 2xMOPP and IEC/EN/UL 62368-1 certification standards.

High MTBF of over 19 million hours ensures reliability. Energy efficient with approximately 81% efficiency. Multiple input voltage models available for system flexibility.
