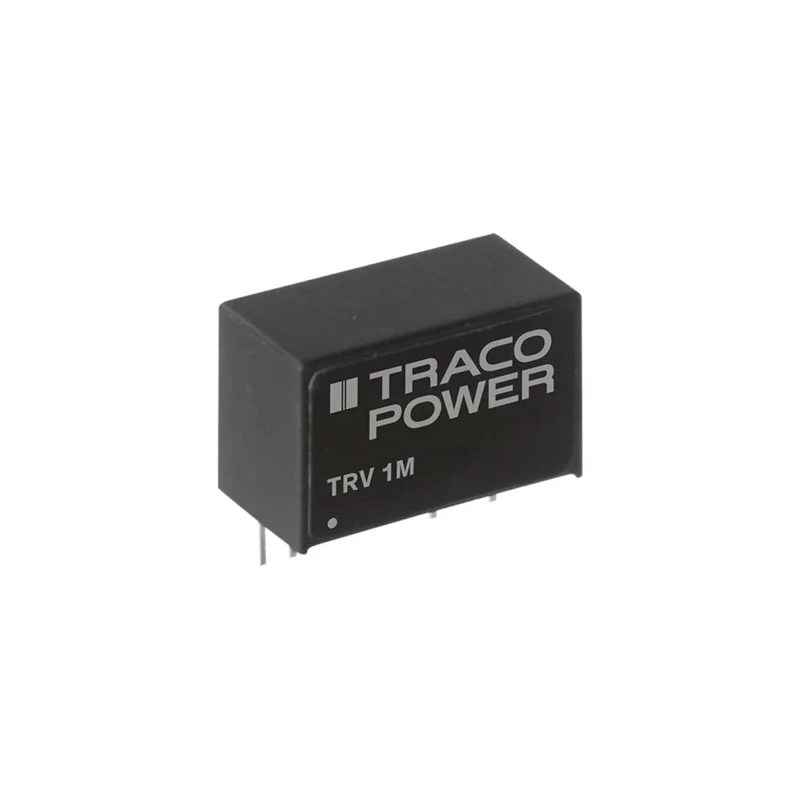

TRACOPOWER 1 Watt DC/DC Converter SIP-9 Package 3.3V DC Output 303mA 19.2-28.8V DC Input Through Hole TRV 1-2410M

TRACOPOWER TRV 1-2410M is a high-quality 1 Watt DC/DC Converter designed to provide reliable 3.3V DC output with a maximum output current of 303 mA. It supports input voltages ranging from 19.2 to 28.8V DC and is housed in a compact SIP-9 through hole package optimized for space-constrained applications.

This converter features a reinforced isolation voltage of 5000 VAC which makes it suitable for both medical and industrial environments, ensuring electrical safety and protecting connected equipment. It includes a short circuit protection mechanism and maintains a low leakage current below 2 microamperes, enhancing operational safety especially in patient-connected devices.

The device is designed to operate efficiently across a wide temperature range from -40° to 85° Celsius without requiring derating. Its semi-regulated output voltage ensures stable operation with ripple and noise limited to 100 mV peak-to-peak, thus supporting sensitive electronic components.

Measuring just 19.6 mm in length, 12.5 mm in depth, and 9.8 mm in width, and weighing a mere 4.8 g, the TRV 1-2410M is ideal for compact power supply designs. The converter also demonstrates a high mean time between failures (MTBF) of approximately 19.36 million hours, ensuring durability and reliability when deployed in critical systems.

Certified under EN, IEC, REACH, RoHS, and UL standards, this component meets stringent safety and environmental compliance requirements. Its efficiency of approximately 78% enables energy-efficient power conversion, reducing waste heat and improving system performance.

Reinforced 5000 VAC isolation voltage for safety. Short circuit protection and low leakage current less than 2 µA. Wide operating temperature range from -40 to 85°C for versatile deployment. Compact SIP-9 package for through hole mounting.

Compliance with multiple international standards including EN, IEC, REACH, RoHS, and UL. High MTBF for enhanced reliability in industrial and medical applications. Low output voltage ripple and noise with 100 mV peak-to-peak specification.

Efficiency of 78% balances performance and energy consumption. Lightweight and compact form factor for easy PCB integration.

This product is well suited for industrial, medical, and telecommunications use cases that require secure isolated power conversion with stable output and operational longevity. It is an excellent choice for engineers designing power supplies that must meet rigorous safety and quality standards.
