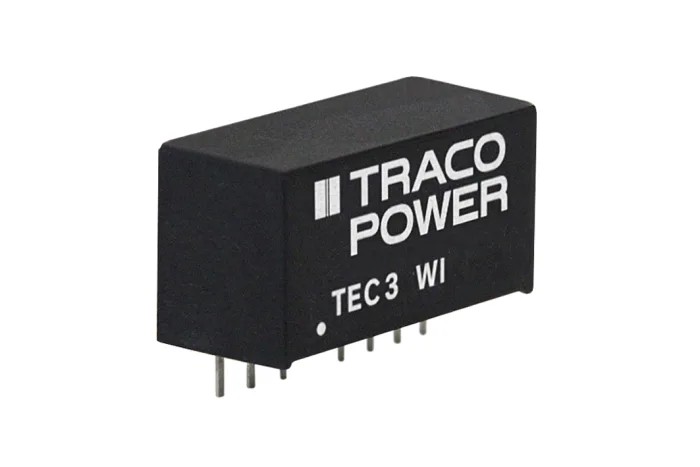

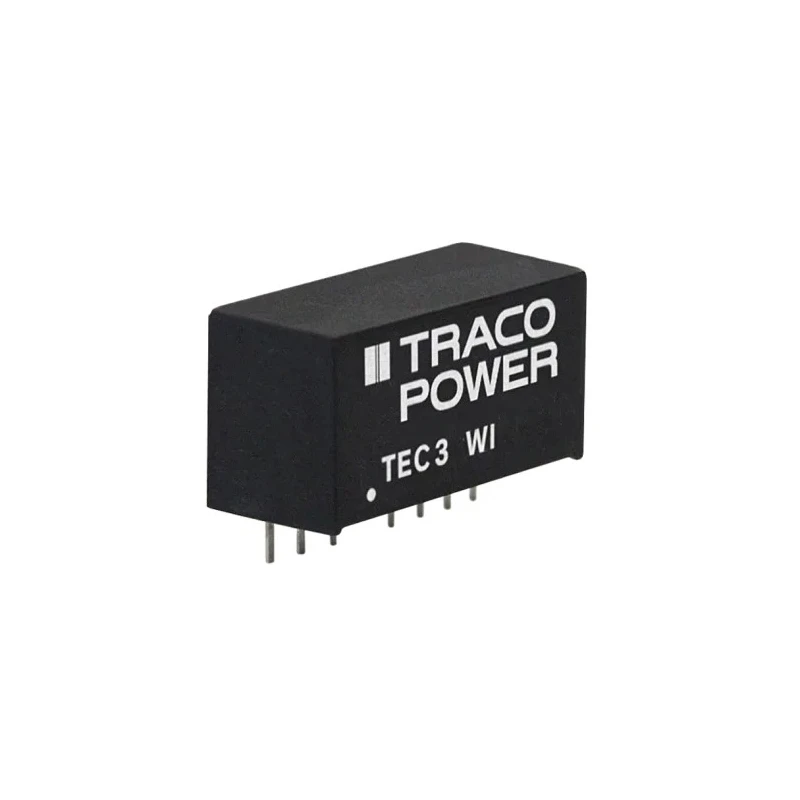

TRACOPOWER TEC 3WI 3 Watt SIP-8 DC/DC Converter, 12 V, -12 V Output, 125 mA, 18-75 Vdc Input, 1.6 kV Isolation TEC 3-4822WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEC 3WI DC/DC Converter, 12V, -12 V/ 12 |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 21.8mm |
| Model | TEC 3-4822WI |
| Depth | 11.2mm |
| Width | 9.1mm |
| Mount Type | PCB |
| Series | TEC 3WI |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 6620000h |
| Number of outputs | 2 |
| Maximum Output Power | 0W |
| Maximum Input Voltage | 75V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 12, -12V |
| Output Current 1 | 125mA |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Ultra-wide 4 | 1 input voltage range |
| Input Ratio4 | 1 |
Key Features
- Compact SIP-8 package suitable for PCB mounting.
- High input voltage isolation of 1.6 kV DC for safety and reliability.
- Designed for efficient power conversion with 82% efficiency.
- Operating temperature range from -40°C to 90°C for harsh environments.
- Fully regulated outputs over the entire load range without minimum load requirements.
- Continuous short circuit protection ensuring durability and safety.
- Mean time between failures (MTBF) of 6,620,000 hours assuring long-term reliability.
- RoHS compliant and environmentally friendly design.
Product Description
TRACOPOWER TEC 3-4822WI is a high-performance DC/DC converter designed to offer dual outputs of +12 V and -12 V at 125 mA output current. This converter is housed in a compact SIP-8 package ideal for direct PCB mounting, enhancing design flexibility for electronic components and power solutions.
Its ultra-wide input voltage range from 18 V to 75 V DC, coupled with a 4:1 input voltage ratio, enables compatibility with varied power sources. The device features a robust I/O isolation voltage of 1600 V DC, ensuring safe use in demanding electrical environments.
With an efficiency rating of 82%, the TEC 3WI series minimizes thermal losses while providing fully regulated outputs across 0 to 100% load with no minimum load needed. The wide operating temperature range from -40°C to +90°C supports deployment in harsh industrial and electronic conditions. It also includes continuous short circuit protection to enhance device reliability.
The expected MTBF of over 6.6 million hours guarantees sustained performance and durability, making it suitable for industrial power supplies, laboratory instruments, telecom devices, and automotive electronics applications. The product is RoHS compliant, underscoring its adherence to environmental and safety standards.
Compact SIP-8 package for easy PCB integration. High 1.6 kV DC isolation voltage enhancing operational safety. Wide 18-75 V DC input voltage range with 4:1 ratio flexibility. Fully regulated dual outputs (+12 V, -12 V) with 125 mA maximum current.
Operating temperature between -40°C and 90°C for environmental resilience. Continuous short circuit protection for safeguarding the device. Ra high efficiency of 82% reduces power loss and thermal load. Long MTBF of 6,620,000 hours guaranteeing reliability.
Compliant with RoHS environmental standard.
Ideal for use in industrial power modules, telecommunications, automation, and measurement systems requiring wide input voltage adaptability and stable dual outputs. TRACOPOWER TEC 3WI series is engineered to deliver cost-effective and reliable power conversion solutions.
Explore the comprehensive TRACOPOWER range and enhance your power supply designs with trusted DC/DC Converters available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18 V to 75 V DC, providing a 4:1 input voltage ratio for compatibility with various power sources.
It has dual outputs of +12 V and -12 V, with a maximum output current of 125 mA.
The efficiency rating of this unit is 82%, which helps minimize thermal losses during operation.
The isolation voltage for the TRACOPOWER TEC 3-4822WI is 1.6 kV DC, ensuring safe operation in demanding environments.
It operates within a temperature range of -40°C to 90°C, making it suitable for harsh industrial conditions.
This model is designed for PCB mounting, providing flexibility in electronic component integration.
The MTBF for the TEC 3-4822WI is 6,620,000 hours, indicating long-term reliability.
Yes, it includes continuous short circuit protection to enhance device reliability.
The dimensions of this unit are 21.8 mm in length, 11.2 mm in depth, and 9.1 mm in width.
Yes, this converter is RoHS compliant, adhering to environmental and safety standards.
It is suitable for industrial power supplies, laboratory instruments, telecom devices, and automotive electronics applications.
The TRACOPOWER TEC 3-4822WI is housed in a compact SIP-8 package, which is suitable for direct PCB integration.
