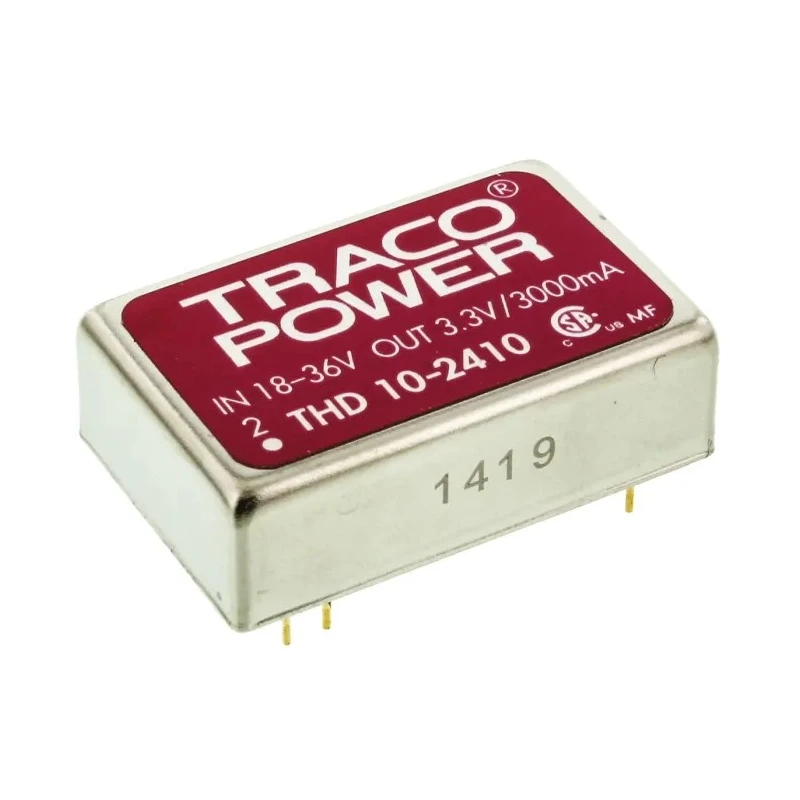

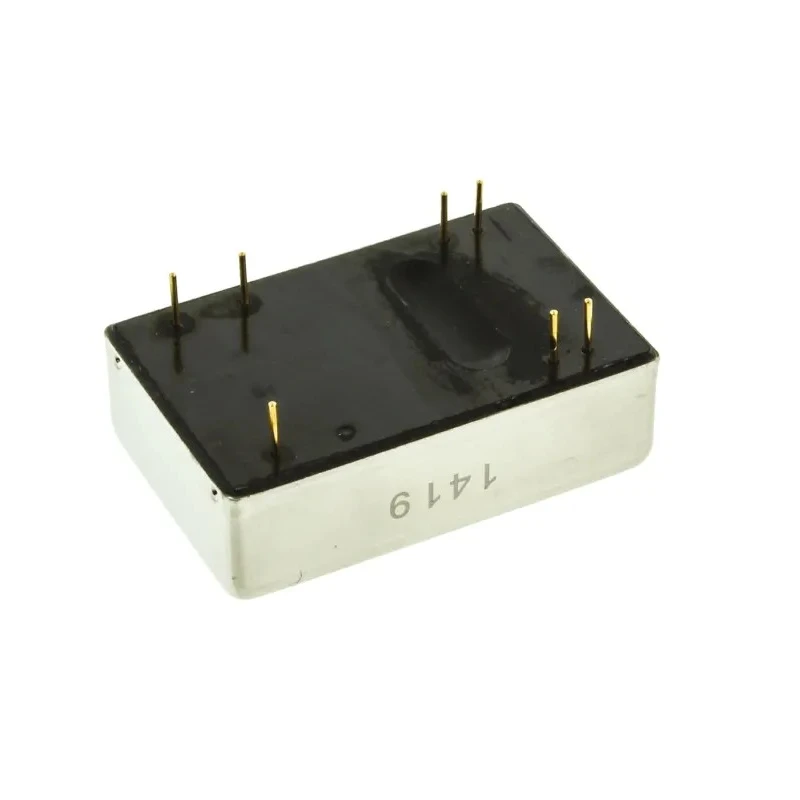

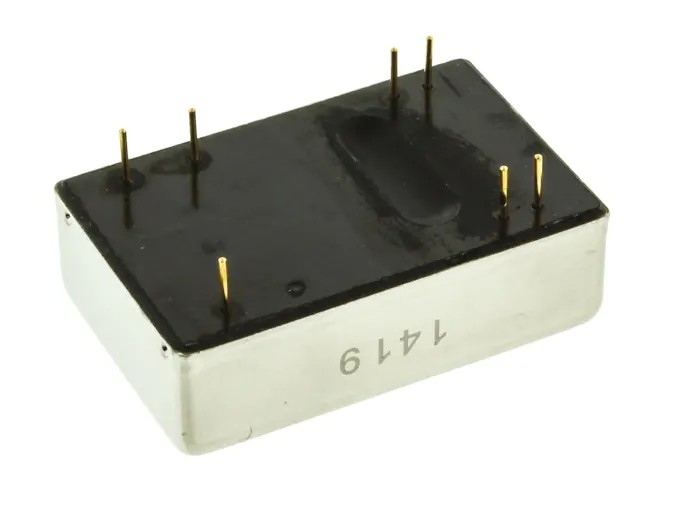

TRACOPOWER DC/DC Converter , 3.3V DC Output, 3A, 36V DC Max Input, 18V Min Input, 10W Power, Through Hole, 71°C THD 10-2410
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 85% |
| Length | 32mm |
| Model | THD 10-2410 |
| Depth | 10mm |
| Width | 20mm |
| Mount Type | Through Hole |
| Series | THD 10 |
| Maximum Operating Temperature | 71°C |
| Package Type | DIP-24 |
| Minimum Operating Temperature | -40°C |
| MTBF | 1000000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 8 |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 3A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- Provides efficient DC voltage conversion with 85% efficiency.
- Features 1.5kV DC isolation voltage for enhanced safety.
- Includes built-in overvoltage and short-circuit protection with automatic recovery.
- Compact DIP-24 package with dimensions 32mm length, 20mm width, and 10mm depth.
- Operates reliably within temperature range from -40°C to 71°C.
- Flame-retardant silicone rubber potting and corrosion-resistant nickel-plated steel case for durability.
- Low ripple and noise minimize interference with sensitive electronics.
- Ideal for industrial automation, consumer electronics, medical, and marine applications.
Product Description
TRACOPOWER THD 10-2410 is a high-quality DC/DC converter providing a regulated 3.3V DC output at a current of 3A. Designed for input voltage ranges between 18V minimum and 36V maximum, it delivers up to 10W of power with an efficiency rating of 85%, ensuring low energy loss and minimal heat generation.
The converter features a through-hole DIP-24 package, measuring 32mm in length, 20mm in width, and 10mm in depth, suitable for secure mounting on PCBs. It includes a high isolation voltage of 1.5kV DC, which enhances electrical safety and protects sensitive components. Operating temperature spans from -40°C to 71°C, making it reliable in harsh or industrial environments.
Robust construction with flame-retardant silicone rubber potting and nickel-plated steel casing ensures durability, corrosion resistance, and reduced risk of fire hazards. The device incorporates built-in overvoltage and short-circuit protections with automatic recovery, minimizing downtime without manual intervention.
This DC/DC converter is ideal for powering battery-operated equipment, industrial automation control systems, medical devices, and marine electronics requiring stable low-voltage DC supplies with minimal ripple and noise interference.
Efficient 85% power conversion for minimized energy loss. Electrical isolation of 1.5kV DC for user and device safety. Compact and sturdy DIP-24 through-hole package. Wide operating temperature range from -40°C to 71°C. Automatic short-circuit recovery enhances operational reliability.
Non-conductive base plate to reduce electric shock risk. Corrosion-resistant casing compatible with humid environments. Low ripple and noise reduce interference in sensitive signal circuits.
Applications include consumer electronics, hospitals, industrial automation, and the marine industry. This robust and efficient converter supports a variety of technical and industrial needs.
Explore more DC/DC Converters and reliable power supply solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 3.3V DC with a maximum output current of 3A.
It accepts a minimum input voltage of 18V DC and a maximum input voltage of 36V DC.
The maximum output power of this unit is 10W.
It has an efficiency rating of 85%, ensuring low energy loss during operation.
The DIP-24 package measures 32mm in length, 20mm in width, and 10mm in depth.
It features a high isolation voltage of 1.5kV DC, enhancing electrical safety.
This converter operates reliably within a temperature range from -40°C to 71°C.
It is designed for through-hole mounting, suitable for secure installation on PCBs.
Yes, it includes built-in overvoltage and short-circuit protection with automatic recovery.
It features flame-retardant silicone rubber potting and a corrosion-resistant nickel-plated steel case.
This model is ideal for applications in industrial automation, consumer electronics, medical devices, and marine electronics.
The MTBF for this unit is rated at 1,000,000 hours, indicating reliability in operation.
