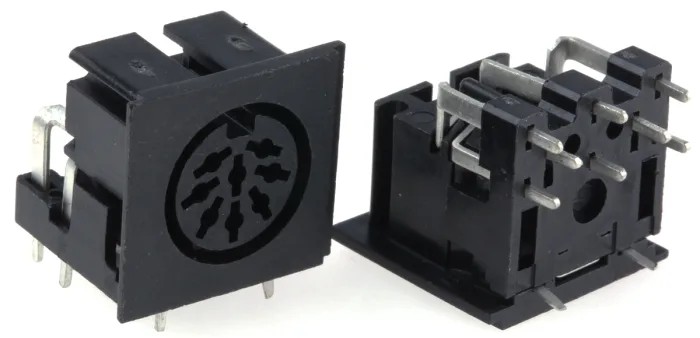

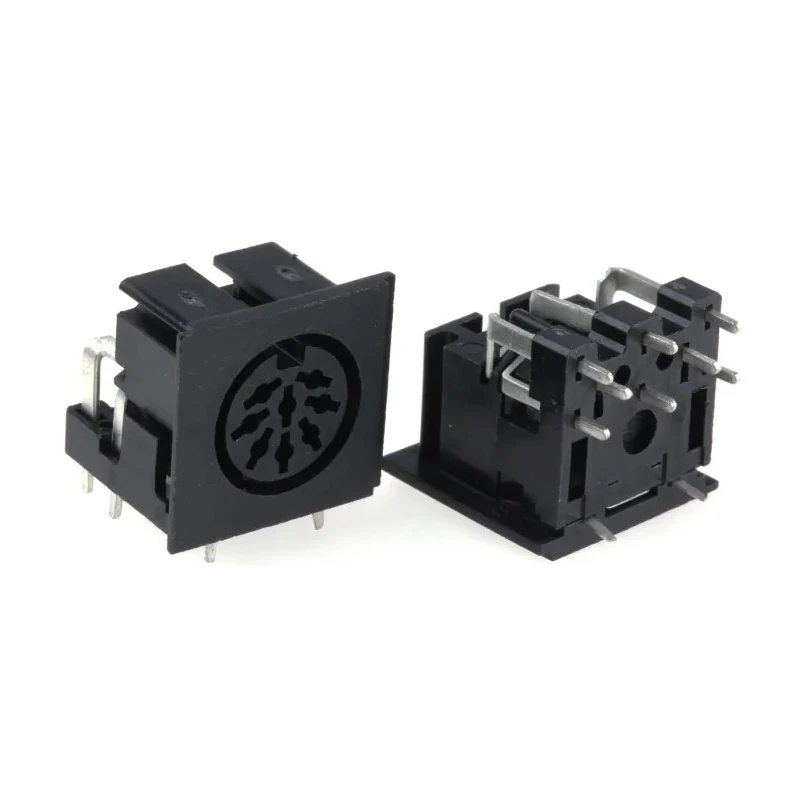

RS PRO 8 Pole Right Angle Miniature DIN Socket, 2A Current, 100V AC, Push-in Female Connector Through Hole Mount 491-049

RS PRO 491-049 8 Pole Right Angle Miniature DIN Socket is a high-quality electrical connector designed for PCB mounting applications. With an 8-contact pin configuration, it supports a current rating of 2A and voltage rating of 100V AC, ensuring stable signal and power transmission within electronic systems.

This connector features a right angle orientation and a miniature DIN size allowing efficient use of PCB real estate. The housing is molded from polybutylene terephthalate (PBT), providing excellent mechanical strength and heat resistance across an operating temperature range of -20°C to 70°C.

The contacts are fabricated from brass and copper materials and plated with tin and nickel to minimize contact resistance (maximum 20 mΩ) and prevent corrosion, enhancing long-term reliability. Its push-in mating type and female connector gender with through hole solder termination offer secure mechanical and electrical connections.

With an insulation resistance of at least 100 MΩ at 500V DC and dielectric strength of 1000V AC for one minute, this socket is engineered for safety and durability in demanding electrical environments. The unshielded design includes two molded mounting holes for easy installation with no.2 self-tapping screws.

This DIN connector socket is versatile and applicable in various industrial, electronic, and commercial uses such as interfacing audio/video devices, computers, and data communication equipment. RS PRO branding guarantees high quality through rigorous testing and compliance with engineering standards.

The connector has 8 contact pins for secure electrical connections. Right angle miniature DIN configuration facilitates space-saving PCB layouts. Constructed with polybutylene terephthalate housing for durability and thermal stability.

Brass and copper contacts plated with tin and nickel ensure low resistance and corrosion resistance. Supports operating temperature range from -20°C to 70°C for versatile industrial applications. Push-in mating type with female gender and through hole solder termination.

Electrical rating includes 2A current at 100V AC with insulation resistance of 100 MΩ at 500V DC. Dielectric strength withstands 1000V AC for 1 minute to assure safety. Connector is unshielded with molded mounting holes for secure attachment using no. 2 self-tapping screws.

Manufactured under the trusted RS PRO brand, sourced from Taiwan, Province Of China. Explore reliable RS PRO DIN connectors and enhance your electronic assembly with trusted quality and proven performance on EnvMart.
