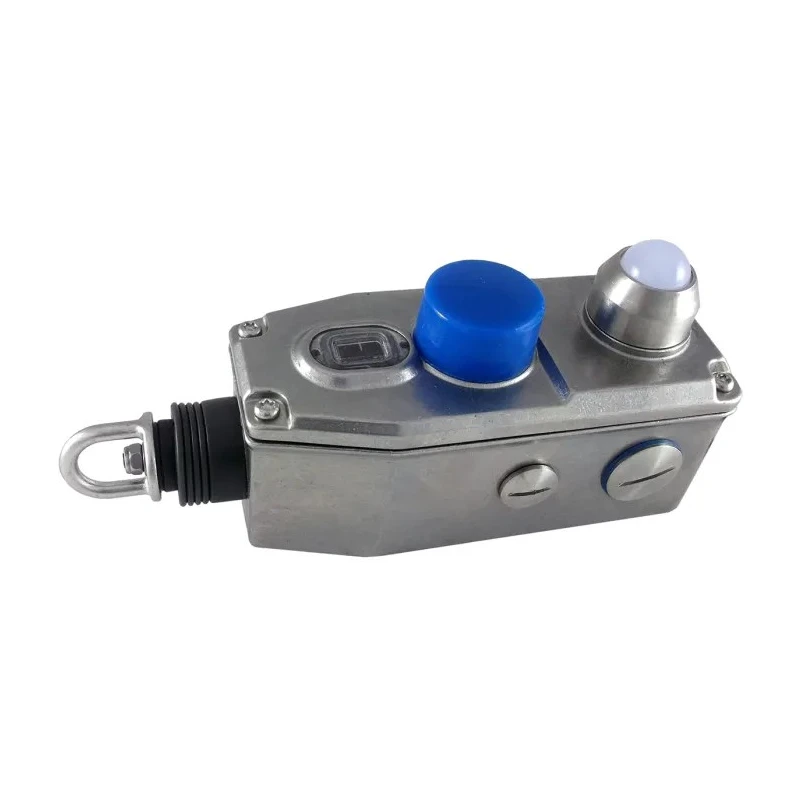

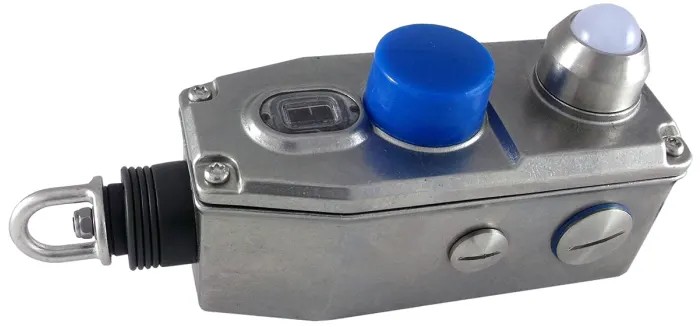

IDEM GLM-SS Mini Safety Rope Pull Switch 90mm Stainless Steel Housing LED Indicator IP69K 148062A
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | IDEM |
| Length | 90mm |
| Model | 148062A |
| Depth | 74mm |
| IP Rating | IP69K |
| Width | 139mm |
| Housing Material | 316 Stainless Steel |
| Series | GLM-SS |
| Maximum Operating Temperature | 80°C |
| Indicator Type | LED Steady Green, LED Green, Steady Red, Flashing Red |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | cULus, TUV, CE |
| Contact DC Voltage | 24V dc |
| Mechanical Life | 1500000Operations |
| Contact AC Voltage | 240V ac |
| Conduit Entry | M20 |
| Number of Cable Entries | 4 |
Key Features
- The switch covers up to 30 m conveyor length with a single switch and 50 m with two switches.
- Equipped with 3 or 4 pole contacts suitable for modern control systems.
- Features rugged internal sealing bellows enabling IP69K rating for high-pressure and high-temperature washdown.
- Includes LED steady green, steady red, and flashing red indicators.
- Stainless steel 316 housing provides excellent corrosion resistance.
- Electrical ratings include 24 V DC contact voltage and 240 V AC contact voltage.
- Mechanical life rated at 1,500,000 operations ensures long-lasting performance.
- Includes an E-stop button and reset button for safety compliance.
Product Description
IDEM 148062A GLM-SS Mini Safety Rope Pull Switch 90mm offers robust safety protection for conveyors, rated with 316 stainless steel housing and LED indicators to monitor operational status. It is designed to provide effective safety control for conveyor lengths of up to 30 meters with a single switch and up to 50 meters when two switches are used, making it highly efficient for industrial safety applications.
This rope pull switch series features rugged internal sealing bellows that provide high resistance to water and contaminants, achieving an IP69K rating that is suitable for high-pressure and high-temperature hosing environments. The stainless steel 316 housing guarantees corrosion resistance in harsh industrial settings including food processing, pharmaceutical, packaging, and chemical industries.
The GLM-SS model includes various LED indicators: steady green, steady red, and flashing red, enhancing visibility of the switch status. It also integrates safety functions like an E-stop button and reset mechanism which aligns with ISO13850 standards and safety monitoring up to Category 4 to EN 954-1 or PLe ISO 13849-1. The mechanical life expectancy is rated at 1,500,000 operations ensuring durable usage in demanding environments.
Electrical specifications include contact voltages of 24V DC and 240V AC, allowing use in diverse control applications. Easy wiring is facilitated by four cable entries with M20 conduit connections. This product also conforms to major international standards including cULus, TUV, and CE.
This rope pull switch is indispensable for industrial safety systems requiring reliable emergency stop solutions and enhanced operational monitoring. It protects conveyor systems effectively by allowing quick shutdowns triggered manually through the rope pull mechanism.
The switch mechanism supports instant latching when safety contacts open per ISO13850. Positive break contacts comply with IEC60947-5-1 ensuring electrical safety. All internal screws are stainless steel, adding to the product's robustness.
Its compact size with dimensions 90mm length, 139mm width, and 74mm depth makes installation facile. Certified for use in demanding conditions but without hazardous area certification. Set contains one IDEM GLM-SS Mini Safety Rope Pull Switch model 148062A with LED indicator and E-stop functionality.
Explore more Rope Pull Switches and safety devices in EnvMart’s comprehensive electronics and electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This switch can cover up to 30 meters of conveyor length with a single switch and up to 50 meters when two switches are used.
The electrical ratings include a contact voltage of 24V DC and 240V AC, making it suitable for various control applications.
It has an IP69K rating, indicating it is designed for high-pressure and high-temperature washdown environments.
The housing is made of 316 stainless steel, providing excellent corrosion resistance in harsh industrial settings.
It includes LED indicators: steady green, steady red, and flashing red, which enhance visibility of the switch status.
The mechanical life is rated at 1,500,000 operations, ensuring long-lasting performance in demanding environments.
The dimensions are 90mm in length, 139mm in width, and 74mm in depth, making it compact for installation.
It can operate in temperatures ranging from -25°C to 80°C, suitable for various industrial conditions.
This model features four cable entries with M20 conduit connections for easy wiring.
It includes an E-stop button and a reset button, complying with ISO13850 standards for safety compliance.
It conforms to major international standards including cULus, TUV, and CE, ensuring compliance with safety regulations.
The rope pull mechanism allows for quick manual shutdowns, enhancing safety by enabling immediate response in emergencies.
