IDEM ES Series Twist Release Emergency Stop Push Button, Surface Mount, 2 NC/1 NO, IP69K

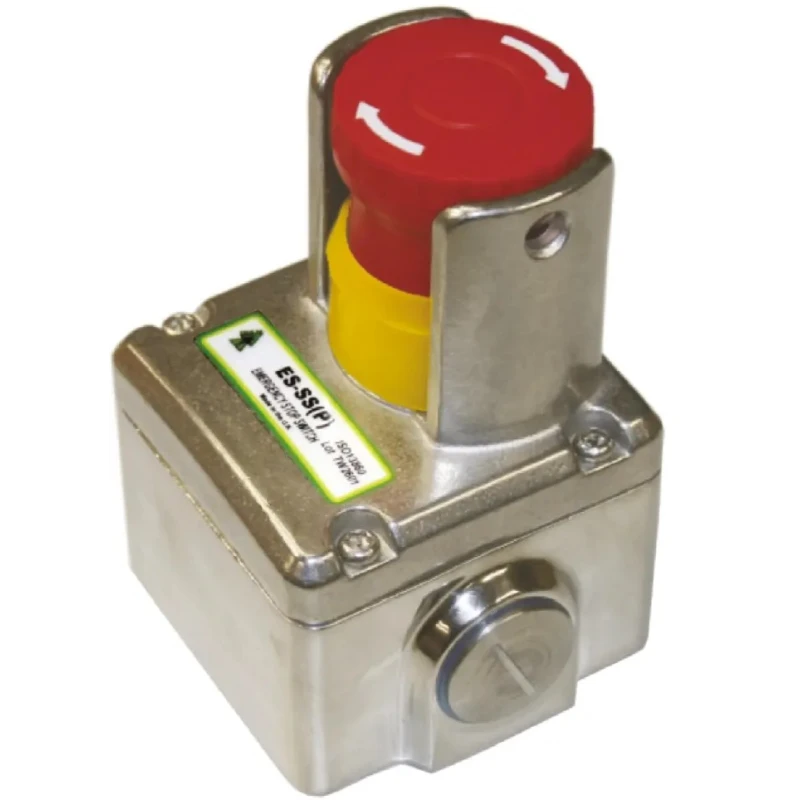

IDEM 231006 ES Series Twist Release Emergency Stop Push Button is a surface mount device designed to provide robust emergency stop protection for industrial machinery and conveyors. This emergency stop push button features a red, unpainted round head with a 40mm diameter, making it highly visible on control panels.

The housing is crafted from stainless steel, providing durability against harsh environments, while the push button itself is made of durable plastic. The device operates with a twist release mechanism ensuring secure and deliberate activation and reset. It includes a 2 NC/1 NO contact configuration rated for 3A contact current at 240V AC and also supports 24V DC operation.

Engineered to meet strict safety standards including IEC60947-5-5, ISO13850, and EN1088, this emergency stop switch carries an IP69K rating, which guarantees protection against high-pressure water jets and detergents at high temperatures. Its surface mount design and 1/2 inch NPT conduit entry ensure easy and secure installation.

The device incorporates a special safety lid trip mechanism that automatically opens contacts when the lid is removed, enhancing operator safety. Additionally, the button is shielded with a protective shroud and includes padlock holes to prevent accidental operation.

The push button features a twist release actuation for reliable emergency stop response. Equipped with a red, unpainted round head 40mm diameter for clear visibility. Constructed with stainless steel housing and plastic push button material for durability.

Designed for surface mounting with conduit entry of 1/2in NPT and padlock holes for safety. Rated for contact currents up to 3A at 240V AC and 24V DC voltages. Compliant with IEC60947-5-5, ISO13850, and EN1088 standards for safety and reliability.

IP69K rating ensures resistance to high pressure washdowns, suitable for harsh industrial environments. The device includes a special lid safety trip mechanism that opens contacts if the lid is removed. Non-illuminated with button protection shroud for enhanced operational safety.

This Emergency Stop Push Button is ideal for use in industrial automation, manufacturing plants, conveyor systems, water treatment facilities, and other heavy-duty commercial applications requiring reliable emergency stop functionality.

Explore EnvMart’s range of safety and automation components to complement this IDEM emergency stop button for complete machine and plant safety solutions.
