IDEM ES Series Twist Release Emergency Stop Push Button Surface Mount 2 NC/1 NO 24V DC 3A IP67

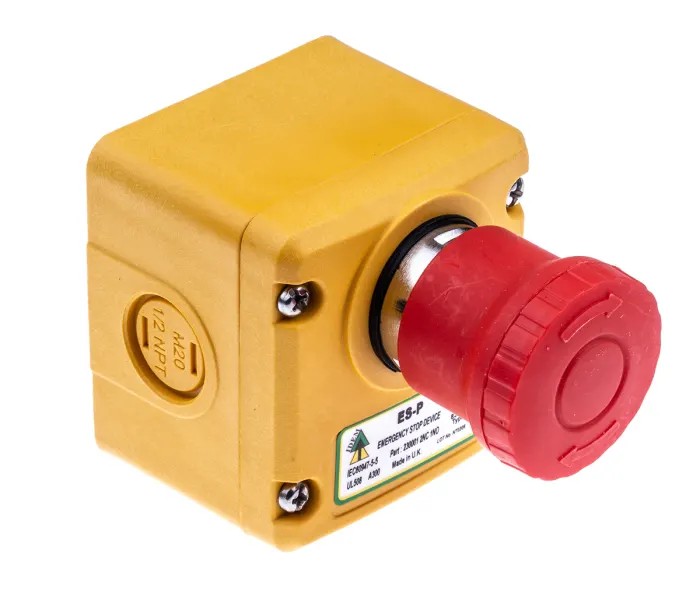

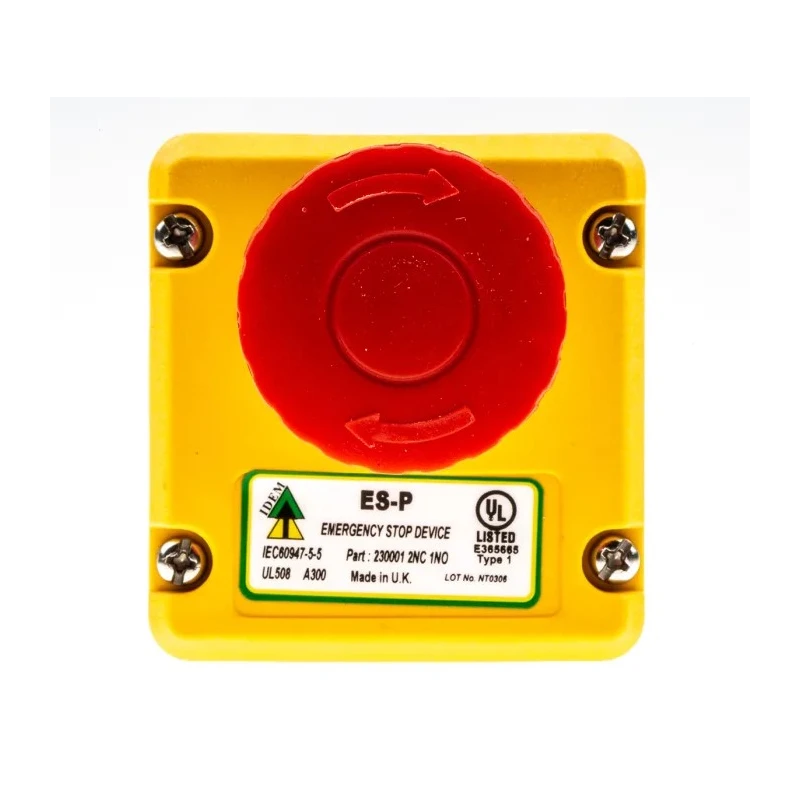

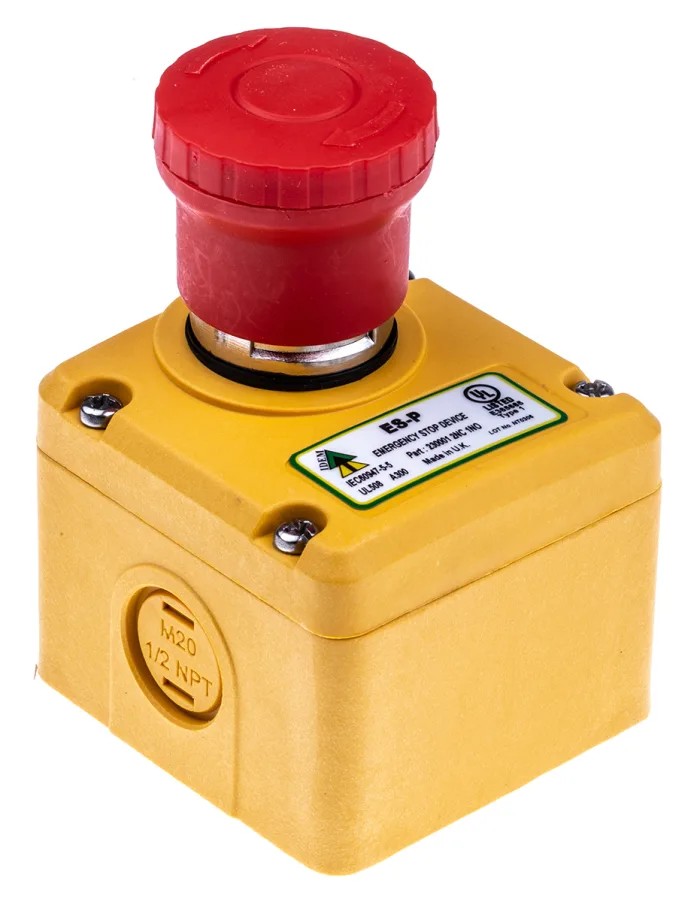

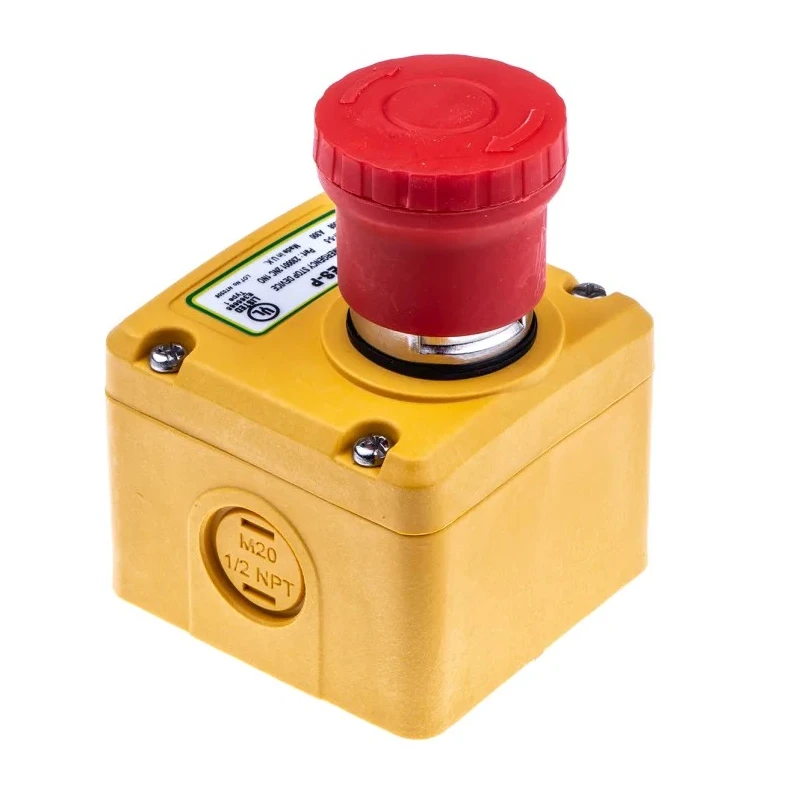

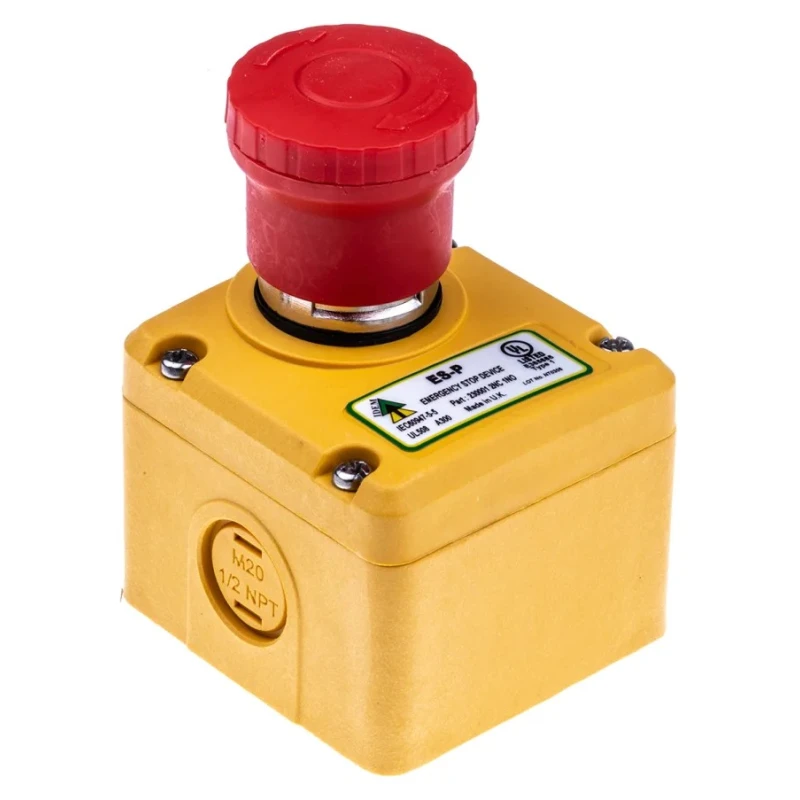

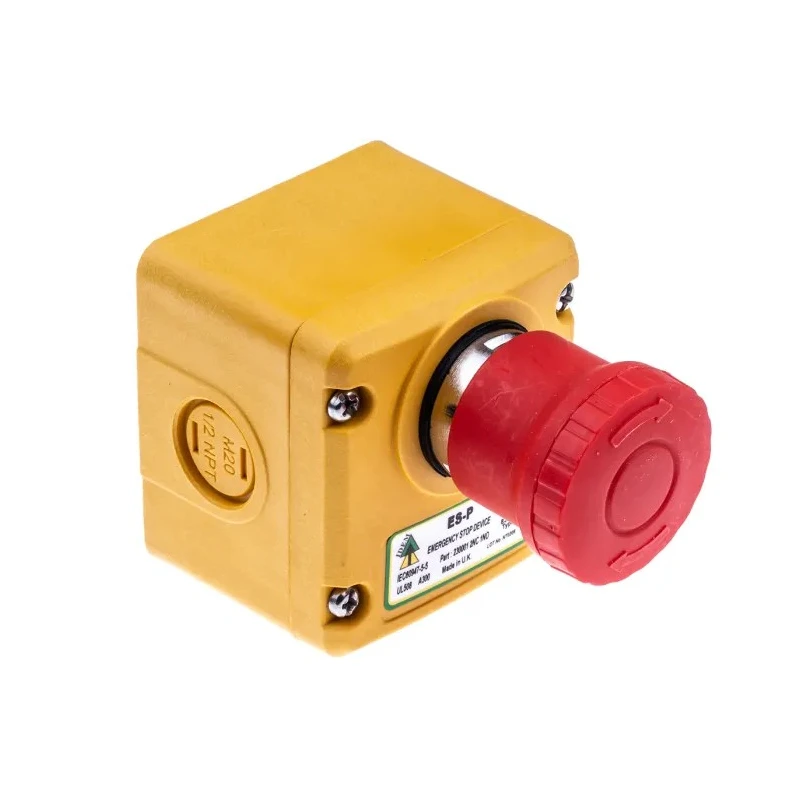

IDEM 230001 Emergency Stop Push Button ES Series is a high-quality emergency stop switch designed for surface mount industrial applications. It features a robust polyester housing combined with a plastic red push button head of 40mm diameter. The device uses a twist to reset mechanism that ensures safety by requiring manual reset after activation.

This emergency stop push button is equipped with 2 normally closed (NC) and 1 normally open (NO) contact configuration, rated for 24V DC at 3 amperes and 240V AC, making it suitable for diverse electrical control circuits. The clamp terminal type connection ensures secure and reliable wiring in demanding environments.

With an ingress protection rating of IP67, this device is resistant to dust and water, ideal for harsh industrial conditions. The product complies with international standards including ISO13850, EN 954-1, EN60204-1, ISO 13849-1, IEC60947-5-5, EN1088, and EN 62061, assuring compatibility with safety control systems in manufacturing, automation, or conveyor systems.

The compact form factor with dimensions of 75mm length, 70mm width, and 105mm depth allows easy installation without excessive space needs. The non-illuminated button saves energy while ensuring clear emergency stop functionality.

This IDEM emergency stop push button is widely used in industries requiring reliable emergency shutdown capability for machinery and process safety. Its surface mount design and proven safety certifications make it a staple component for safety control panels and automation systems in sectors such as manufacturing, material handling, and industrial maintenance.

The push button features a red round head with a 40mm diameter for easy emergency activation. Constructed with a durable polyester housing and plastic button material for industrial reliability. Employs a twist to reset actuation method suitable for safety-critical shutdowns.

Rated for 24V DC contact voltage and 3A contact current for robust electrical performance. Designed for surface mounting with clamp terminal connections ensuring secure wiring. Meets multiple standards including ISO13850, EN 954-1, and IEC60947-5-5 for safety compliance.

Non-illuminated configuration with 2 normally closed and 1 normally open contacts. Dimensions are 75mm length, 70mm width, and 105mm depth making it compact yet accessible. Suitable for use across a wide range of industrial, manufacturing, and automation sectors.
