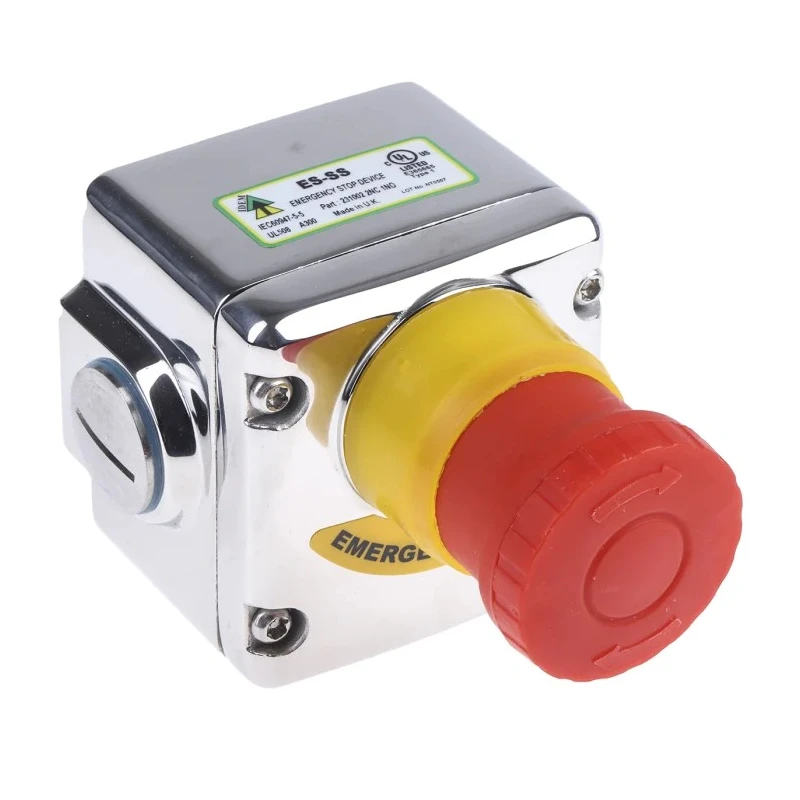

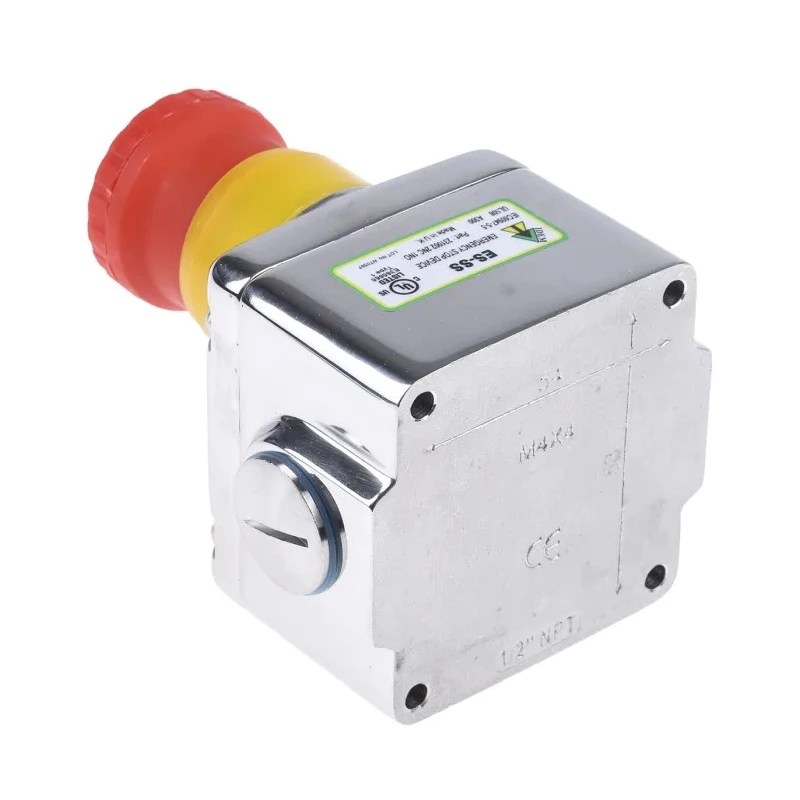

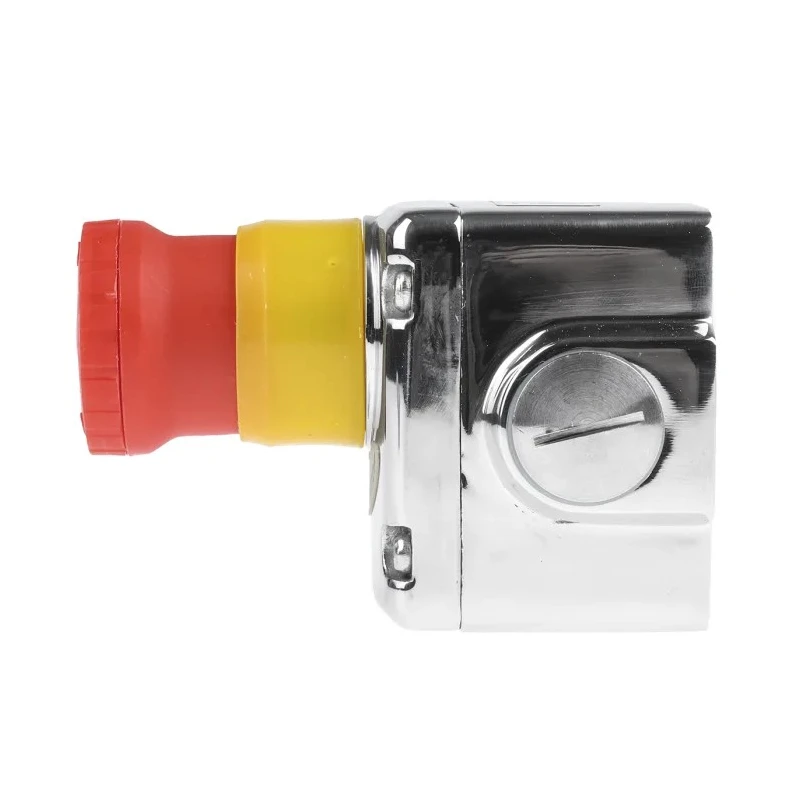

IDEM ES Series Twist Release Emergency Stop Push Button Surface Mount 2 NC/1 NO IP69K

IDEM 231002 ES Series Twist Release Emergency Stop Push Button is a surface mount safety switch designed for reliable emergency stop protection across a variety of industrial environments. Featuring a robust stainless steel housing, the device delivers durable performance in harsh conditions and offers IP69K ingress protection for withstanding high-pressure, high-temperature cleaning.

This push button emergency stop unit is equipped with a red round head measuring 40mm diameter, constructed from high-quality plastic material for clear visibility and tactile actuation. The twist-to-reset actuation mechanism safely prevents accidental reset and ensures operator control over emergency stop functions.

With a contact configuration of 2 normally closed (NC) and 1 normally open (NO), it supports connection to most safety relays providing up to PLe Category 4 safety levels. The switch is rated for 24V DC and 240V AC contact voltages with a contact current of 3A, suitable for standard industrial automation setups.

Compliance to key international standards ISO13850, IEC60947-5-5, and EN1088 guarantees that this emergency stop push button meets rigorous safety and quality requirements for machine and conveyor safety applications.

The unit includes a 1/2 inch NPT conduit entry ensuring compatibility with typical industrial wiring practices. Its non-illuminated design and special safety trip mechanism enhance reliability by opening contacts if tampering occurs through lid removal, thereby increasing operator safety.

The twist release mechanism ensures secure emergency stop activation and reset. Surface mount design with stainless steel housing provides durability and corrosion resistance. Contact configuration of 2 NC/1 NO supports high safety function integration.

Rated for 24V DC and 240V AC with 3A contact current capability. Non-illuminated red round push button head with 40mm diameter for clear emergency signaling. Compliant with IEC60947-5-5, EN1088, and ISO13850 safety standards.

IP69K rated protection for high-pressure washdown environments. Conduit entry of 1/2 inch NPT for secure cable connection. Constructed from plastic push button material and polyester housing. Manufactured in the United Kingdom ensuring high quality.

This Emergency Stop Push Button is widely used in machine safety, conveyor systems, manufacturing plants, and industrial automation control panels where reliable, certified emergency stop functionality is required. Its IP69K rating ensures suitability in food processing, pharmaceutical, and other hygienic production environments requiring thorough washdown processes.
