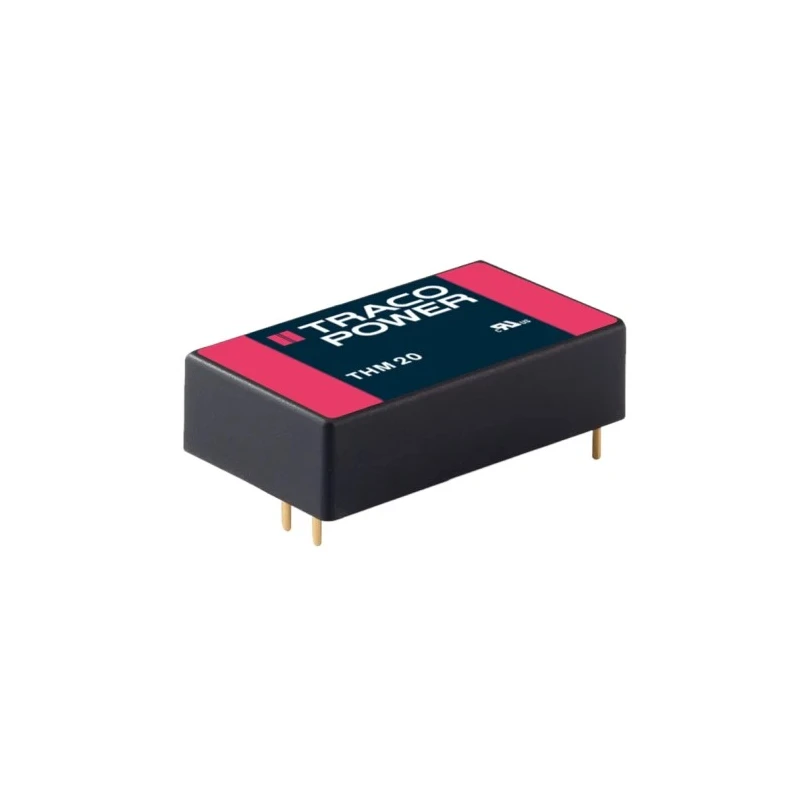

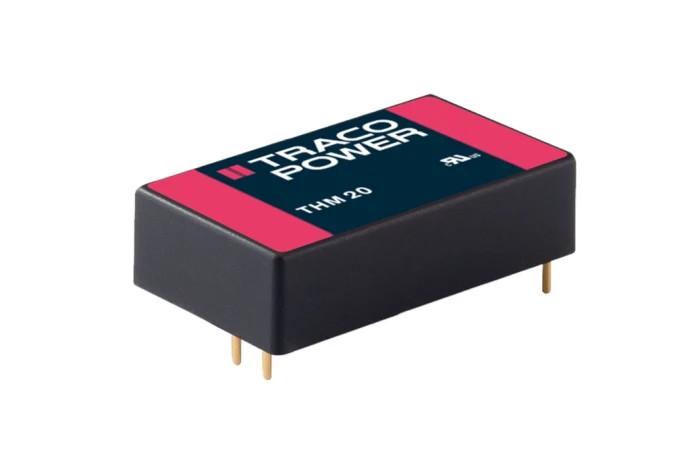

TRACOPOWER 20 Watt, 12V DC Output, 1.67A, 9-18V DC Input, Through Hole DC/DC Converter THM 20-1212
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER THM 20 DC/DC Converter, 12V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 88.5% |
| Length | 40.6mm |
| Model | THM 20-1212 |
| Depth | 10.2mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | THM 20 |
| Maximum Operating Temperature | 80°C |
| Package Type | Plastic Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 1712000h |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.67A |
| Isolation Voltage | 5kV ac |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Wide 2 | 1 input voltage 20 W DC/DC converter in a 1.6 x 1 plastic case |
Key Features
- Operates with 9V to 18V DC wide input voltage range for flexible use.
- Provides reinforced 5000 VAC isolation ensuring safety and reliability.
- High efficiency of 88.5% reduces energy loss and heat generation.
- Wide operating temperature from -40°C to 80°C suitable for harsh environments.
- Low leakage current below 2.5 μA for sensitive electronics protection.
- Compact size with 40.6mm length, 25.4mm width, and 10.2mm depth fits constrained spaces.
- Constructed with a durable plastic case and through-hole mount type for PCB integration.
- Designed for medical, transportation, control, measurement, and IGBT driver applications.
Product Description
TRACOPOWER THM 20-1212 DC/DC Converter is a robust 20 Watt power supply module featuring a 12V DC output at 1.67A current, designed for demanding industrial and medical applications. The device accepts a wide 2:1 input voltage range from 9V to 18V DC, ensuring versatile compatibility with power sources. Housed in a compact plastic case with through-hole mounting, it measures 40.6mm in length, 25.4mm in width and 10.2mm in depth, facilitating easy PCB integration.
Offering reinforced isolation rated at 5000 VAC, this converter features exceptional safety and reliability standards, making it ideal for sensitive electronic environments. It achieves an efficiency of 88.5%, minimizing energy consumption and thermal stress during operation. The unit supports continuous operation in extreme ambient temperatures from -40°C to 80°C, broadening its usability in various harsh industrial conditions, including transportation, control systems, measurement equipment, and IGBT driver circuits.
Additional technical advantages include a very low leakage current below 2.5 μA, enhancing protection of connected circuits from leakage-related issues, and a Mean Time Between Failures (MTBF) of approximately 1,712,000 hours ensuring longevity and reliability. The six-pin device delivers stable output with a ±10% voltage adjustment range and comes with a 5-year warranty for guaranteed performance.
Wide 9-18 VDC input voltage range supports flexible power sources. 5000 VAC reinforced isolation for enhanced user and device safety. High efficiency of 88.5% reduces operational energy consumption. Extended ambient operating range from -40°C to +80°C.
Low leakage current minimizes electrical losses and interference. Compact plastic package enables integration in limited-space applications. Ideal for medical and industrial monitoring, control, and driver circuits. 6-pin through-hole mounting facilitates secure PCB installation.
5-year warranty ensuring reliable long-term operation.
This THM 20-1212 model is a dependable component for electronic engineers requiring a high-quality DC/DC conversion solution. Its reliable isolation and efficiency characteristics make it suitable for use in industrial, laboratory instrumentation, transportation, and control systems, addressing stringent electrical and environmental demands. Consider browsing EnvMart's broad selection of DC-DC converters and TRACOPOWER products for further compatible solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The THM 20-1212 operates with a wide input voltage range from 9V to 18V DC, allowing for flexible use with various power sources.
This model provides a 12V DC output with a maximum current of 1.67A, making it suitable for various applications requiring stable power.
The efficiency of this DC/DC converter is rated at 88.5%, which helps to reduce energy loss and heat generation during operation.
The THM 20-1212 measures 40.6mm in length, 25.4mm in width, and 10.2mm in depth, allowing for compact integration into limited spaces.
This converter can operate in ambient temperatures up to 80°C, making it suitable for harsh environments.
The THM 20-1212 features a through-hole mount type, which facilitates secure installation on printed circuit boards (PCBs).
It offers reinforced isolation rated at 5000 VAC, ensuring safety and reliability for sensitive electronic applications.
The minimum operating temperature for the THM 20-1212 is -40°C, allowing it to function effectively in extreme cold conditions.
The MTBF for this model is approximately 1,712,000 hours, indicating a long expected operational lifespan.
This DC/DC converter is designed for various applications including medical, transportation, control, measurement, and IGBT driver circuits.
The THM 20-1212 has a low leakage current specification of below 2.5 μA, which helps protect sensitive electronics from interference.
This model is manufactured in Taiwan, ensuring compliance with specific quality standards.
