Vishay Standard Recovery Power Diode 1200 V 80 A Screw Mount DO-203AB VS-82PF120

Free Delivery in India | Lowest Global Shipping Charges

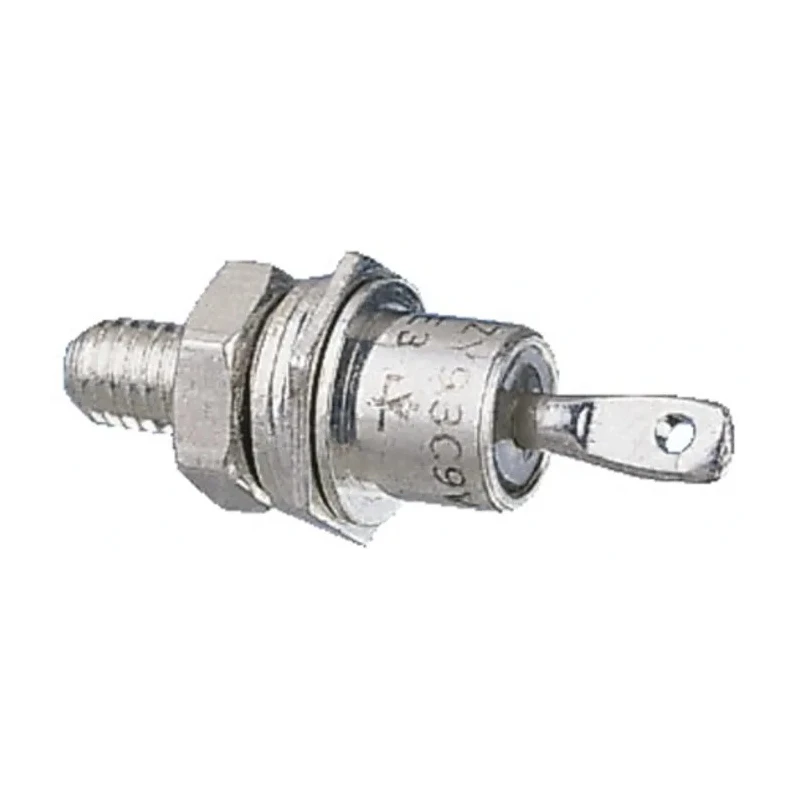

Vishay Standard Recovery Power Diode 1200 V 80 A Screw Mount DO-203AB VS-82PF120

Name: Vishay Standard Recovery Power Diode 1200 V 80 A Screw Mount DO-203AB VS-82PF120
Brand: Vishay
SKU: 133226
Price: 12.13 USD
Availability: InStock



Category Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	17.25mm
Brand	Vishay
Height	25.4mm
Length	4mm
Model	VS-82PF120
Width	17.25mm
Mount Type	Screw
Series	VS-82
Maximum Operating Temperature	180°C
Package Type	DO-203AB
Minimum Operating Temperature	-55°C
Pin Count	2
Maximum Continuous Forward Current If	80A
Peak Reverse Repetitive Voltage Vrrm	1200V
Diode Configuration	Stud Cathode
Rectifier Type	Recovery
Peak Reverse Current Ir	9mA
Peak Non-Repetitive Forward Surge Current Ifsm	1500A
Maximum Forward Voltage Vf	1.4V

Key Features

Rated maximum continuous forward current of 80 amperes for sustained performance.
Peak reverse repetitive voltage of 1200 volts ensuring high voltage blocking capability.
Stud cathode diode configuration suited for stable mounting and operation.
Rectifier is a recovery type diode with a maximum forward voltage drop of 1.4 volts.
Operates within temperature range from -55°C to 180°C for harsh industrial environments.
Peak non-repetitive forward surge current capacity of 1500 amperes for transient conditions.
Compact DO-203AB package with dimensions approximately 25.4 mm height and 17.25 mm width and diameter.
Pin count of 2 and screw mounting for secure installation in power electronics assemblies.

Product Description

Vishay VS-82PF120 is an industrial-grade standard recovery power diode providing robust electrical performance with 1200 V maximum reverse voltage and 80 A continuous forward current rating. Packaged in a DO-203AB screw mount case, this diode features a stud cathode configuration that facilitates secure and reliable installation in power converter and rectifier circuits.

The device offers a maximum forward voltage of 1.4 V and tolerates surge currents up to 1500 A non-repetitively, ensuring durability under transient overloads. Operating temperature ranges from -55°C to +180°C make it suitable for harsh industrial environments, including manufacturing, power supply systems, and electronic components assembly.

With its compact physical dimensions - 25.4 mm height, 4 mm length, and 17.25 mm diameter - the diode fits efficiently into industry-standard electrical hardware layouts. Rated 80 A continuous forward current for sustained use.

Withstands 1200 V peak reverse voltage with recovery diode type. Compact DO-203AB package with screw mount capability. Wide operating temperature range from -55°C to 180°C. Peak surge current rating of 1500 A for high transient tolerance.

Stud cathode configuration for ease of mechanical installation. Maximum forward voltage drop of 1.4 V minimizing power loss. Two-pin design providing straightforward circuit integration. Manufactured in India, ensuring consistent build quality.

Designed for semiconductor discrete, power electronics, and rectifier uses.

This Diode is ideal for use in industrial power rectification, electronics manufacturing, and repair applications. Vishay’s product line is well recognized for quality and performance reliability. Browse the Electronics & Electricals category on EnvMart for more Vishay power semiconductor devices and related components.
