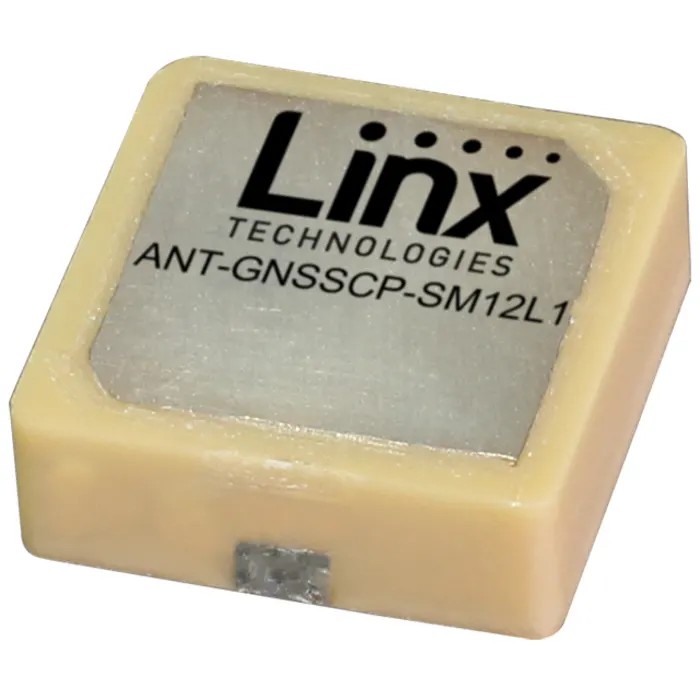

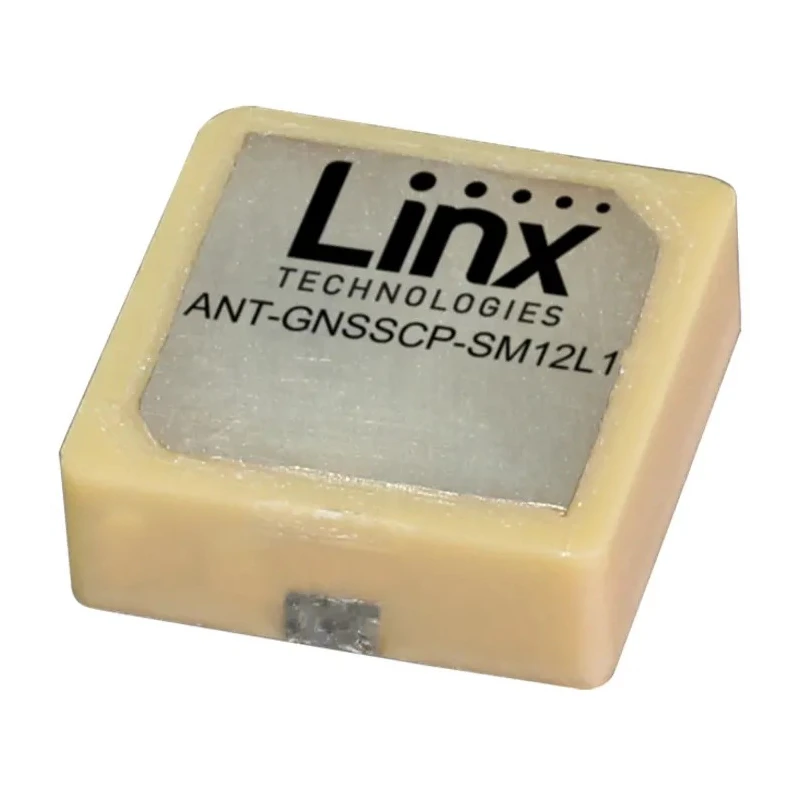

Linx Patch Omni-Directional GPS Antenna with Surface-Mount Solder Connection Connector ANT-GNSSCP-SM12L1
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Linx |
| Model | ANT-GNSSCP-SM12L1 |
| Connector Type | Surface-Mount Solder Connection |
| Bandwidth | 1608.68MHz |
| Series | GNSSCP-SM12L1 |
| Gain | 3.5dB |
| Standards/Approvals | AEC-Q200 Grade 2 |
| Maximum Frequency | 1608.68MHz |
| Connector Gender | Male |
| Minimum Frequency | 1567.24MHz |
| Internal/External | External |
| RF Protocols | GPS |
| Antenna Physical Form | Patch |
| Antenna Mount Type | Surface |
| Directivity | Omni-Directional |
Key Features
- The antenna features a compact 12mm square patch design suitable for surface mounting.
- Omni-directional radiation pattern ensures high location accuracy.
- Operates within a frequency range of 1567.24MHz to 1608.68MHz supporting GPS RF protocols.
- Offers a gain of 3.5dB for improved signal strength.
- Complies with AEC-Q200 Grade 2 standards for quality and reliability.
- Constructed as an external antenna ideal for embedded systems.
- Includes a male surface-mount solder connection for secure PCB attachment.
Product Description
Linx ANT-GNSSCP-SM12L1 Patch Omni-Directional GPS Antenna with Surface-Mount Solder Connection Connector is a precision-engineered external GPS antenna designed for embedded global navigation satellite system operations. Featuring a compact 12mm square ceramic patch form factor, this antenna provides excellent gain and an omni-directional radiation pattern to ensure reliable and accurate location tracking.
The antenna operates over a frequency range from 1567.24MHz to 1608.68MHz, compatible with standard GPS RF protocols. Its high gain of 3.5dB supports improved signal reception in various applications.
Designed for direct surface-mount PCB attachment via a male surface-mount solder connection, the Linx ANT-GNSSCP-SM12L1 simplifies integration into embedded electronic devices. Manufactured to meet AEC-Q200 Grade 2 standards, this antenna guarantees durability and quality for industrial, automotive, and commercial positioning systems.
Typical use cases include industrial automation, fleet management, automotive telematics, and other navigation or tracking solutions requiring compact yet high-performance GPS antenna solutions.
The antenna features a compact 12mm square patch design suitable for surface mounting. Omni-directional radiation pattern ensures high location accuracy. Operates within a frequency range of 1567.24MHz to 1608.68MHz supporting GPS RF protocols.
Offers a gain of 3.5dB for improved signal strength. Complies with AEC-Q200 Grade 2 standards for quality and reliability. Constructed as an external antenna ideal for embedded systems. Includes a male surface-mount solder connection for secure PCB attachment.
Explore more GPS antenna solutions and accessories in the Electronics Components category at EnvMart.
Explore more products in our GPS Antennas category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a frequency range of 1567.24MHz to 1608.68MHz, supporting GPS RF protocols.
It features a male surface-mount solder connection for secure attachment to PCBs.
This model has a compact 12mm square patch design, suitable for surface mounting.
The Linx ANT-GNSSCP-SM12L1 is constructed as an external antenna, ideal for embedded systems.
It complies with AEC-Q200 Grade 2 standards, ensuring quality and reliability for various applications.
It features an omni-directional radiation pattern, which ensures high location accuracy.
Typical use cases include industrial automation, fleet management, automotive telematics, and navigation or tracking solutions.
The antenna has a male connector gender for its surface-mount solder connection.
The maximum frequency supported by the Linx ANT-GNSSCP-SM12L1 is 1608.68MHz.
The minimum frequency supported is 1567.24MHz, making it compatible with GPS RF protocols.
This model is part of the GNSSCP-SM12L1 series, which includes other similar GPS antennas.
