NXP Varactor Diode Single Configuration 30 V 17.5 pF Tuning Ratio 8.9 SOD-323 2-Pin BB135,115

Free Delivery in India | Lowest Global Shipping Charges

NXP Varactor Diode Single Configuration 30 V 17.5 pF Tuning Ratio 8.9 SOD-323 2-Pin BB135,115



Category Varactor Diodes Brand NXP Condition New

Specifications

Country of Origin	China
Brand	NXP
Height	1.05mm
Length	1.8mm
Model	BB135,115
Mount Type	Surface
Series	BB135
Maximum Operating Temperature	125°C
Package Type	SOD-323
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Diode Configuration	Single
Forward Current If	20mA
Minimum Capacitance	17.5pF
Maximum Reverse Voltage Vr	30V
Minimum Tuning Ratio	8.9
Tuning Ratio Test Condition	0.5/28 V
NXP BB135,115 1 Single Varactor 8.9	1 Tuning Ratio, 17.5 pF 30 V 2-Pin SOD-323

Key Features

Single diode configuration providing stable capacitance variations.
Maximum reverse voltage rating of 30 volts ensures robustness.
Tuning ratio of 8.9 offers precise capacitance control.

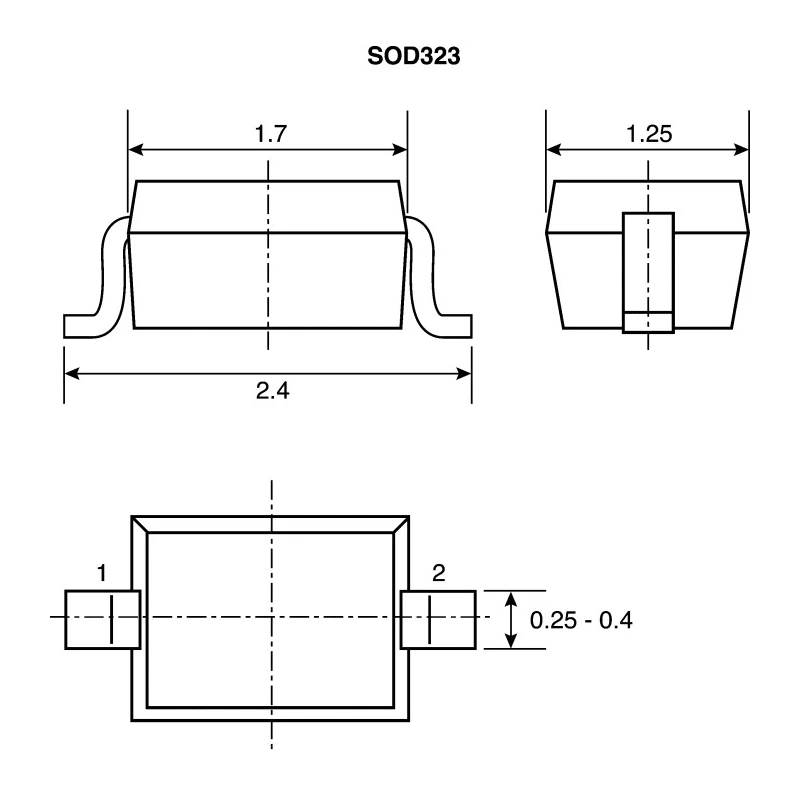

Compact SOD-323 surface mount package with 2 pins.
Operates effectively from -55°C to 125°C ambient temperature.
Forward current rating of 20 mA for reliable electrical performance.
Minimum capacitance of 17.5 pF under test conditions 0.5/28 V.
Manufactured in China with assured quality from NXP.

Product Description

NXP BB135,115 is a single varactor diode designed for voltage controlled variable capacitance applications in RF tuning, oscillators, filters, frequency synthesizers, and multipliers. It features a tuning ratio of 8.9:1 and a minimum capacitance of 17.5 pF at 0.5/28 V test condition, making it highly suitable for precise frequency control.

This diode is packaged in a compact SOD-323 surface mount case with 2 pins, allowing for efficient PCB layout in modern electronic circuits. With a maximum reverse voltage of 30 V and forward current rating of 20 mA, this device ensures high reliability and stable operation across a broad temperature range from -55°C to 125°C.

The varactor diode supports multiple industrial applications such as RF tuning circuits, voltage controlled oscillators, frequency synthesizers, and multipliers in telecommunications, instrumentation, and consumer electronics. Its surface mount design facilitates automated assembly, improving manufacturing efficiency.

NXP, a trusted leader in semiconductor technology, manufactures the BB135,115 with consistent quality standards. The product is made in China and meets standard specifications for varactor diodes without specific automotive qualifications.

Single diode configuration for capacitance tuning. 30 V maximum reverse voltage rating. Tuning ratio of 8.9 for precise adjustment. Surface mount SOD-323 package with 2 pins. Wide operating temperature range from -55°C to 125°C.

Forward current rating of 20 mA for dependable use. Compact device dimensions: 1.8 mm length x 1.05 mm height. Manufactured in China under NXP quality controls. Please explore more Varactor Diodes and semiconductor products on EnvMart, designed for electronics manufacturing and R&D applications.
